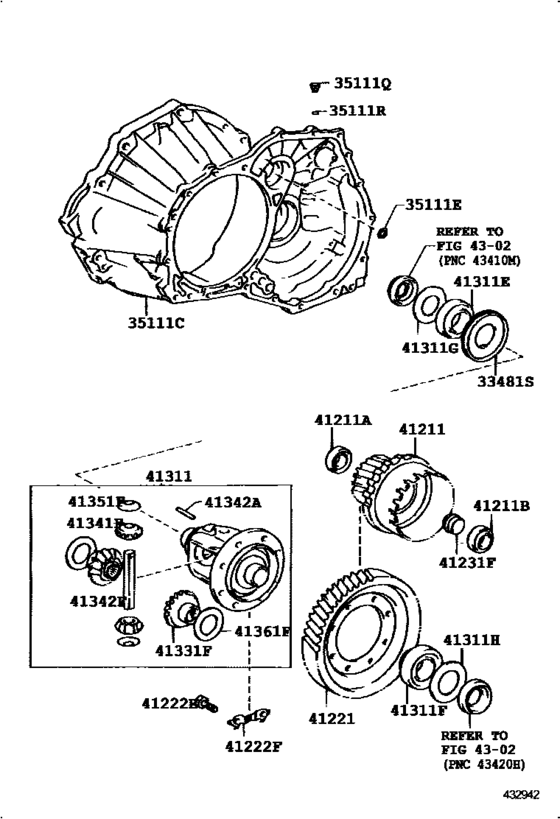

Front Axle Housing & Differential ([04.1997 - ] A240L,A245E (9704- )4FC) Diagram Toyota COROLLA
- Year
- 1997 - 1999
- Sales region
- Europe
- Frame
- AE111
- grade
- TERRA
- body
- SED
- ENGINE
- 4AFE
- TRANSMISSION
- ATM
- Model
- COROLLA(NAP/SED/CP/HB/LB/WG)
- From
- 04.1997
- To
- 10.1999
- Gear Shift Type
- 4FC
- Vehicle Model
- Corolla SED/WG
- Driver's Position
- LHD
Difficulties in parts search?
Difficulties in parts search?
| Description | OEM Part # | Price | |||
|---|---|---|---|---|---|
|
33481S
|
33481S
33481-12040 Gear, Speedometer Drive (Mtm)[04.1997 - 10.1999] AE111..4FC N=35,MARK 35X29-31 |
33481-12040 |
from US $6.24 |
||
|
35111C
|
35111C
35105-12012 Housing, Transaxle[04.1997 - 10.1999] AE111..4FC |
35105-12012 |
US $816.82 |
||
|
35111E
|
35111E
90210-13002 Washer, Seal (For Front Transaxle Housing)[04.1997 - 10.1999] AE111..4FC |
90210-13002 |
US $4.08 |
||
|
35111Q
|
35111Q
90341-08001 Plug, Transaxle Case, No.1[04.1997 - 10.1999] AE111..4FC |
90341-08001 |
from US $1.58 |
||
|
35111R
|
35111R
90301-06196 O Ring, Transaxle Case, No.1[04.1997 - 10.1999] AE111..4FC |
90301-06196 |
from US $2.52 |
||
|
41211
|
41211
41206-20030 Pinion, Differential Drive[04.1997 - 10.1999] AE111..4FC |
41206-20030 |
US $336.34 |
||
|
41211A
|
41211A
90366-30020 Bearing (For Rear Drive Pinion Rear)[04.1997 - 10.1999] AE111..4FC |
90366-30020 |
US $40.91 |
||
|
41211B
|
41211B
90366-30019 Bearing (For Rear Drive Pinion Rear)[04.1997 - 10.1999] AE111..4FC |
90366-30019 |
US $39.17 |
||
|
41221
|
41221
41221-20230 Gear, Front Differential Ring[04.1997 - 10.1999] AE111..4FC |
41221-20230 |
US $155.79 |
||
|
41222B
|
41222B
90101-11353 Bolt (For Rear Differential Ring Gear Set)[04.1997 - 10.1999] AE111,EE111..ATM |
90101-11353 |
from US $0.90 |
||
|
41222F
|
41222F
41222-12050 Plate, Rear Differential Ring Gear Set Bolt Lock[04.1997 - 10.1999] AE111,EE111..ATM |
41222-12050 |
US $3.49 |
||
|
41231F
|
41231F
41231-12030
Spacer, Rear Differential Drive Pinion Bearing
[04.1997 - 10.1999] AE111..4FC |
41231-12030 |
— | ||
|
41311
|
41311
41301-17021
Case Sub-Assy, Rear Differential
[04.1997 - 10.1999] AE111..4FC |
41301-17021 |
— | ||
|
41311E
|
41311E
90368-38002 Bearing, Tapered Roller (For Front Differential Case Front)[04.1997 - 10.1999] AE111..4FC |
90368-38002 |
US $15.72 |
||
|
41311F
|
41311F
90368-38010 Bearing(For Rear Differential Case)[04.1997 - 10.1999] AE111,EE11#..4FC,5F |
90368-38010 |
from US $25.38 |
||
|
41311G
|
41311G
90201-41010 Washer, Plate (For Front Differential Case Front)[04.1997 - 10.1999] AE111,EE111..ATM T=2.00 |
90201-41010 |
US $5.39 |
||
|
41311H
|
41311H
90201-41024 Washer, Plate (For Front Differential Case Front)[04.1997 - 10.1999] AE111..4FC T=2.00,MARK V |
90201-41024 |
US $4.08 |
||
|
41311H
|
41311H
90201-41025 Washer, Plate (For Front Differential Case Rear)[04.1997 - 10.1999] AE111..4FC T=2.35,MARK A |
90201-41025 |
US $6.84 |
||
|
41311H
|
41311H
90201-41026 Washer, Plate (For Front Differential Case Rear)[04.1997 - 10.1999] AE111..4FC T=2.40,MARK B |
90201-41026 |
US $6.84 |
||
|
41311H
|
41311H
90201-41027 Washer, Plate (For Front Differential Case Rear)[04.1997 - 10.1999] AE111..4FC T=2.45,MARK C |
90201-41027 |
US $6.84 |
||
|
41311H
|
41311H
90201-41028 Washer, Plate (For Front Differential Case Rear)[04.1997 - 10.1999] AE111..4FC T=2.50,MARK D |
90201-41028 |
US $8.15 |
||
|
41311H
|
41311H
90201-41029 Washer, Plate (For Front Differential Case Rear)[04.1997 - 10.1999] AE111..4FC T=2.55,MARK E |
90201-41029 |
US $8.15 |
||
|
41311H
|
41311H
90201-41030 Washer, Plate (For Front Differential Case Rear)[04.1997 - 10.1999] AE111..4FC T=2.60,MARK F |
90201-41030 |
US $8.15 |
||
|
41311H
|
41311H
90201-41031 Washer, Plate (For Front Differential Case Rear)[04.1997 - 10.1999] AE111..4FC T=2.65,MARK G |
90201-41031 |
US $8.15 |
||
|
41311H
|
41311H
90201-41032 Washer, Plate (For Front Differential Case Rear)[04.1997 - 10.1999] AE111..4FC T=2.70,MARK H |
90201-41032 |
US $5.24 |
||
|
41311H
|
41311H
90201-41033 Washer, Plate (For Front Differential Case Rear)[04.1997 - 10.1999] AE111..4FC T=2.75,MARK J |
90201-41033 |
US $8.15 |
||
|
41311H
|
41311H
90201-41034 Washer, Plate (For Front Differential Case Rear)[04.1997 - 10.1999] AE111..4FC T=2.80,MARK K |
90201-41034 |
US $8.15 |
||
|
41311H
|
41311H
90201-41035 Washer, Plate (For Front Differential Case Rear)[04.1997 - 10.1999] AE111..4FC T=2.85,MARK L |
90201-41035 |
US $8.15 |
||
|
41311H
|
41311H
90201-41036 Washer, Plate (For Front Differential Case Rear)[04.1997 - 10.1999] AE111..4FC T=2.90,MARK M |
90201-41036 |
US $8.15 |
||
|
41311H
|
41311H
90201-41039 Washer, Plate (For Front Differential Case Rear)[04.1997 - 10.1999] AE111..4FC T=2.10,MARK Q |
90201-41039 |
US $6.84 |
||
|
41311H
|
41311H
90201-41040 Washer, Plate (For Front Differential Case Rear)[04.1997 - 10.1999] AE111..4FC T=2.15,MARK R |
90201-41040 |
US $6.84 |
||
|
41311H
|
41311H
90201-41041 Washer, Plate (For Front Differential Case Rear)[04.1997 - 10.1999] AE111..4FC T=2.20,MARK S |
90201-41041 |
US $6.84 |
||
|
41311H
|
41311H
90201-41042 Washer, Plate (For Front Differential Case Rear)[04.1997 - 10.1999] AE111..4FC T=2.25,MARK T |
90201-41042 |
US $6.84 |
||
|
41311H
|
41311H
90201-41043 Washer, Plate (For Front Differential Case Rear)[04.1997 - 10.1999] AE111..4FC T=2.30,MARK U |
90201-41043 |
US $6.84 |
||
|
41311H
|
41311H
90201-41044 Washer, Plate (For Front Differential Case Rear)[04.1997 - 10.1999] AE111..4FC T=2.05,MARK W |
90201-41044 |
US $4.08 |
||
|
41331F
|
41331F
41331-12011 Gear, Rear Differential Side[04.1997 - 10.1999] AE111;EE111..3FC |
41331-12011 |
US $38.26 |
||
|
41341F
|
41341F
41341-12030 Pinion, Rear Differential[04.1997 - 10.1999] AE111;EE111..3FC |
41341-12030 |
US $24.98 |
||
|
41342A
|
41342A
90250-06058 Pin, Straight(For Timing Gear Case)[04.1997 - 10.1999] EE111..3FC;AE111,CE110 |
90250-06058 |
from US $2.09 |
||
|
41342F
|
41342F
41342-12140 Shaft, Front Differential Pinion, No.1[04.1997 - 10.1999] AE111;EE111..3FC |
41342-12140 |
US $15.24 |
||
|
41351F
|
41351F
41351-12020 Washer, Rear Differential Pinion Thrust[04.1997 - 10.1999] AE111;EE111..3FC |
41351-12020 |
from US $1.69 |
||
|
41361F
|
41361F
41361-17010 Washer, Rear Differential Side Gear Thrust, No.1[04.1997 - 08.1997] AE111..4FC T=0.95 |
41361-17010 |
US $3.14 |
||
|
41361F
|
41361F
41361-17020 Washer, Rear Differential Side Gear Thrust, No.1[04.1997 - 08.1997] AE111..4FC T=1.00 |
41361-17020 |
US $2.62 |
||
|
41361F
|
41361F
41361-17030 Washer, Rear Differential Side Gear Thrust, No.1[04.1997 - 08.1997] AE111..4FC T=1.05 |
41361-17030 |
US $2.62 |
||
|
41361F
|
41361F
41361-17040 Washer, Rear Differential Side Gear Thrust, No.1[04.1997 - 08.1997] AE111..4FC T=1.10 |
41361-17040 |
US $2.62 |
||
|
41361F
|
41361F
41361-17050 Washer, Rear Differential Side Gear Thrust, No.1[04.1997 - 08.1997] AE111..4FC T=1.15 |
41361-17050 |
US $3.32 |
||
|
41361F
|
41361F
41361-17060 Washer, Rear Differential Side Gear Thrust, No.1[04.1997 - 08.1997] AE111..4FC T=1.20 |
41361-17060 |
US $2.62 |
