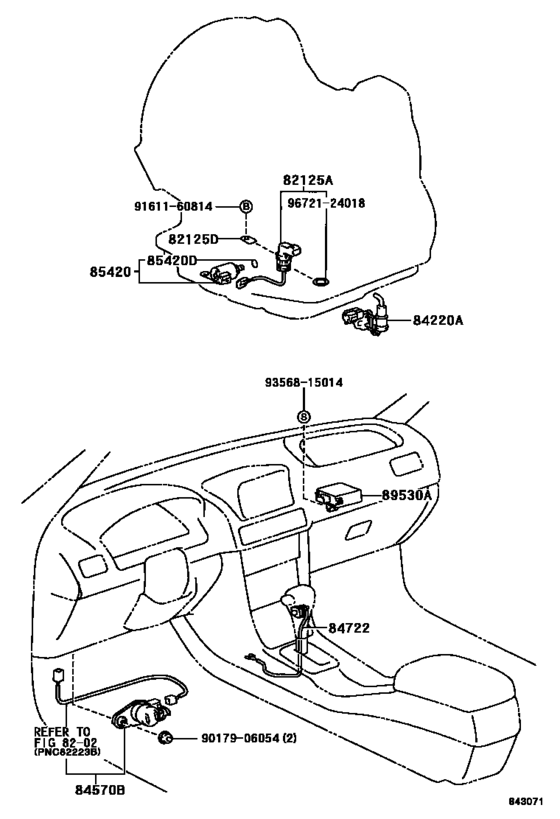

Overdrive & Electronic Controlled Transmission ([04.1997 - 10.1999] (9704-9910)4FC) Diagram Toyota COROLLA
- Year
- 1997 - 1999
- Sales region
- Europe
- Frame
- AE111
- grade
- TERRA
- body
- SED
- ENGINE
- 4AFE
- TRANSMISSION
- ATM
- Model
- COROLLA(NAP/SED/CP/HB/LB/WG)
- From
- 04.1997
- To
- 10.1999
- Gear Shift Type
- 4FC
- Vehicle Model
- Corolla SED/WG
- Driver's Position
- LHD
Difficulties in parts search?
Difficulties in parts search?
| Description | OEM Part # | Price | |||
|---|---|---|---|---|---|
|
82125A
|
82125A
82125-12360 Wire, TransmissionTRANSMISSION [04.1997 - 10.1999] AE111..4FC |
82125-12360 |
US $17.91 |
||
|
82125D
|
82125D
33485-30020 Plate, Speedometer Sleeve Lock (For Atm)[04.1997 - 10.1999] AE111..4FC |
33485-30020 |
from US $1.89 |
||
|
84220A
|
84220A
84220-20100 Switch Assy, Transmission Position IndicatorTRANSMISSION POSITION INDICATOR [04.1997 - 10.1999] AE111..4FC |
84220-20100 |
US $80.08 |
||
|
84570B
|
84570B
84570-12010 Switch Assy, Kick DownKICK DOWN [04.1997 - 10.1999] AE111..4FC |
84570-12010 |
US $72.80 |
||
|
84722
|
84722
84722-12100-B1 Switch, Transmission ControlTRANSMISSION CONTROL [04.1997 - 08.1998] AE111..4FC DK.CHARCOAL,TRIM1# |
84722-12100-B1 |
US $42.22 |
||
| replacement | |||||
|
84722
|
84722
84722-42020-C0 Switch, Transmission ControlTRANSMISSION CONTROL [04.1997 - 08.1998] AE111..4FC DK.CHARCOAL,TRIM1# |
84722-42020-C0 |
US $42.22 |
||
|
84722
|
84722
84722-12100-B2 Switch, Transmission ControlTRANSMISSION CONTROL [04.1997 - 08.1998] AE111..SED..4FC SHADOW GRAY,TRIM0# |
84722-12100-B2 |
US $42.22 |
||
| replacement | |||||
|
84722
|
84722
84722-42020-C0 Switch, Transmission ControlTRANSMISSION CONTROL [04.1997 - 08.1998] AE111..SED..4FC SHADOW GRAY,TRIM0# |
84722-42020-C0 |
US $42.22 |
||
|
85420
|
85420
85420-20180 Solenoid Assy, Transmission[04.1997 - 10.1999] AE111..4FC |
85420-20180 |
US $152.88 |
||
|
85420D
|
85420D
90301-06004 Ring, O No.3(For Transmission Solenoid)[04.1997 - 10.1999] AE111..4FC |
90301-06004 |
from US $1.92 |
||
|
89530A
|
89530A
89530-12190 Computer Assy, Transmission ControlTRANSMISSION CONTROL [04.1997 - 10.1999] AE111..4FC |
89530-12190 |
US $155.79 |
||
|
9017906054
|
9017906054
90179-06054 NUT |
90179-06054 |
US $1.89 |
||
| replacement | |||||
|
9017906054
|
9017906054
90179-06314 NUT |
90179-06314 |
from US $0.84 |
||
|
9161160814
|
9161160814
91611-60814 Bolt |
91611-60814 |
from US $0.80 |
||
|
9356815014
|
9356815014
93568-15014
Direct
|
93568-15014 |
— | ||
| replacement | |||||
|
9356815014
|
9356815014
93568-55014 Screw |
93568-55014 |
from US $1.12 |
||
|
9672124018
|
9672124018
96721-24018 Ring, O |
96721-24018 |
from US $6.40 |
||
