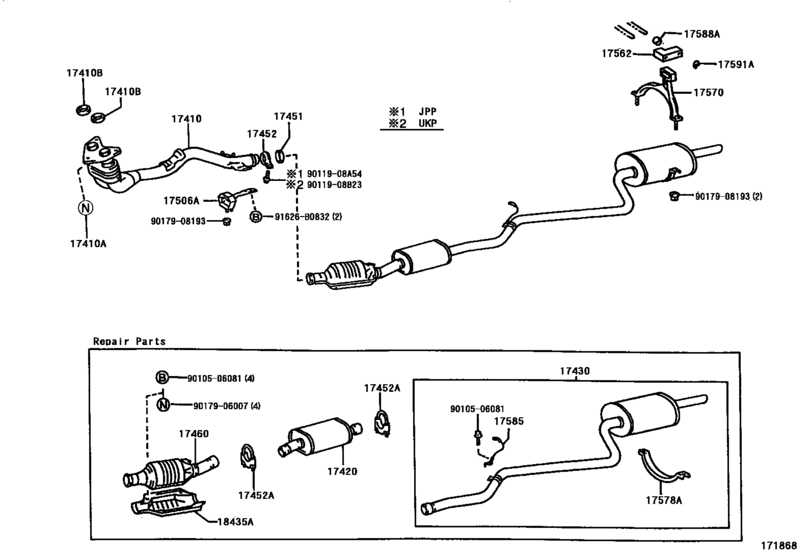

Exhaust Pipe ([04.1997 - ] (9704- )4AFE..MTM) Diagram Toyota COROLLA
- Year
- 1998 - 1999
- Sales region
- Europe
- Frame
- AE111
- grade
- G6
- body
- HB
- ENGINE
- 4AFE
- TRANSMISSION
- MTM
- PRODUCT
- JPP
- Model
- COROLLA(NAP/SED/CP/HB/LB/WG)
- From
- 08.1998
- To
- 10.1999
- Gear Shift Type
- 6F
- Vehicle Model
- Corolla HB/LB
- Driver's Position
- LHD
Difficulties in parts search?
Difficulties in parts search?
| Description | OEM Part # | Price | |||
|---|---|---|---|---|---|
|
17410
|
17410
17410-1A480 Pipe Assy, Exhaust, FrontEXHAUST, FRONT [04.1997 - 10.1999] 4AFE..AE111..JPP..MTM |
17410-1A480 |
US $313.04 |
||
| replacement | |||||
|
17410
|
17410
17410-1A481 Pipe Assy, Exhaust, Front[04.1997 - 10.1999] 4AFE..AE111..JPP..MTM |
17410-1A481 |
from US $261.61 |
||
|
17410A
|
17410A
90179-10070 Nut, Exhaust Pipe Set Stud Bolt[04.1997 - 10.1999] 4AFE..AE111..JPP..MTM |
90179-10070 |
from US $1.54 |
||
| replacement | |||||
|
17410A
|
17410A
90080-17187 Nut, Exhaust Pipe Set Stud Bolt[04.1997 - 10.1999] 4AFE..AE111..JPP..MTM |
90080-17187 |
US $33.80 |
||
|
17410B
|
17410B
90917-06061 Gasket, Exhaust Pipe[04.1997 - 10.1999] 4AFE..AE111..JPP..MTM |
90917-06061 |
from US $5.17 |
||
|
17420
|
17420
17420-16720
Pipe Assy, Exhaust, Center
[04.1997 - 10.1999] 4AFE..AE111..JPP |
17420-16720 |
— | ||
|
17430
|
17430
17430-1D020
Pipe Assy, Exhaust, Tail
[04.1997 - 10.1999] 4AFE..AE111..HB |
17430-1D020 |
— | ||
| replacement | |||||
|
17430
|
17430
17430-1D021
Pipe Assy, Exhaust, Tail
[04.1997 - 10.1999] 4AFE..AE111..HB |
17430-1D021 |
— | ||
|
17451
|
17451
90917-06084 Gasket, Exhaust PipeEXHAUST PIPE [04.1997 - 10.1999] 4AFE..AE111..JPP |
90917-06084 |
US $5.10 |
||
|
17452
|
17452
90461-15016
Clamp, Exhaust Pipe
[04.1997 - 10.1999] 4AFE..AE111..JPP |
90461-15016 |
— | ||
|
17452A
|
17452A
17452-16120 Clamp, Exhaust Pipe[04.1997 - 10.1999] 4AFE..AE111..JPP REAR; 2CE..CE110; 4EFE..EE111..JPP FRONT |
17452-16120 |
from US $21 |
||
|
17452A
|
17452A
17452-16160 Clamp, Exhaust PipeEXHAUST PIPE [04.1997 - 10.1999] 4AFE..AE111..JPP FRONT |
17452-16160 |
from US $10.80 |
||
|
17460
|
17460
17460-16170 Converter Assy, Catalytic W/pipeCATALYTIC W/PIPE [04.1997 - 10.1999] 4AFE..AE111..JPP |
17460-16170 |
US $1,419.60 |
||
|
17460
|
17460
17460-16260 Converter Assy, Catalytic W/pipeCATALYTIC W/PIPE [08.1998 - 10.1999] 4AFE..AE111..LHD..HB..MTM GERMANY SPEC |
17460-16260 |
US $1,557.92 |
||
|
17506A
|
17506A
17506-11100 Bracket Sub-Assy, Exhaust Pipe No.1 Support[04.1997 - 10.1999] 4AFE,4EFE..AE111,EE111..JPP |
17506-11100 |
US $45.78 |
||
|
17562
|
17562
17562-16240 Support, Exhaust Pipe, No.2[04.1997 - 10.1999] 4AFE,2CE,4EFE..AE111,CE110,EE111..JPP |
17562-16240 |
from US $18.60 |
||
|
17570
|
17570
17570-16040 Bracket Assy, Exhaust Pipe Support[04.1997 - 10.1999] 4AFE..AE111..JPP;2CE,4EFE..CE110,EE111..HB |
17570-16040 |
US $48.57 |
||
|
17578A
|
17578A
17578-11030 Clamp, Muffler[04.1997 - 10.1999] 4AFE..AE111..JPP;2CE,4EFE..CE110,EE111..HB |
17578-11030 |
US $43.68 |
||
|
17585
|
17585
17585-16060 Hanger, Exhaust Pipe[04.1997 - 10.1999] 4AFE,4EFE..AE111,EE111..JPP |
17585-16060 |
US $9.03 |
||
|
17588A
|
17588A
17588-16020 Spacer, Exhaust Pipe Hanger[04.1997 - 10.1999] 4AFE,2CE,4EFE..AE111,CE110,EE111..JPP |
17588-16020 |
US $6.88 |
||
|
17591A
|
17591A
17591-16020 Stopper, Exhaust Pipe Support[04.1997 - 10.1999] 4AFE,2CE,4EFE..AE111,CE110,EE111..JPP |
17591-16020 |
from US $0.82 |
||
|
18435A
|
18435A
18435-16170 Protector, Monolithic Converter[04.1997 - 01.1999] 4AFE..AE111..JPP |
18435-16170 |
US $43.53 |
||
| replacement | |||||
|
18435A
|
18435A
18435-20020 Protector, Catalytic Converter[04.1997 - 01.1999] 4AFE..AE111..JPP |
18435-20020 |
US $67.44 |
||
|
18435A
|
18435A
18435-20020 Protector, Catalytic Converter[01.1999 - 10.1999] 4AFE..AE111..JPP..RHD;4AFE..AE111..JPP..LHD..LB..5F;4AFE..AE111..JPP..LHD..(4FC,6F ) |
18435-20020 |
US $67.44 |
||
|
91626B0832
|
91626B0832
91626-B0832
New Genuine Part
|
91626-B0832 |
— | ||
| replacement | |||||
|
91626B0832
|
91626B0832
91651-B0830 New Genuine Part |
91651-B0830 |
US $1.44 |
||
|
9011908A54
|
9011908A54
90119-08A54 BOLT WWASHER |
90119-08A54 |
US $2.08 |
||
|
9011908B23
|
9011908B23
90119-08B23
New Genuine Part
|
90119-08B23 |
— | ||
|
9010506081
|
9010506081
90105-06081
BOLT FLANGE
|
90105-06081 |
— | ||
| replacement | |||||
|
9010506081
|
9010506081
91511-B0614 BOLT, FLANGE |
91511-B0614 |
from US $0.78 |
||
|
9017906007
|
9017906007
90179-06007 Nut |
90179-06007 |
from US $0.86 |
||
|
9017908193
|
9017908193
90179-08193 NUT |
90179-08193 |
US $2.72 |
||
