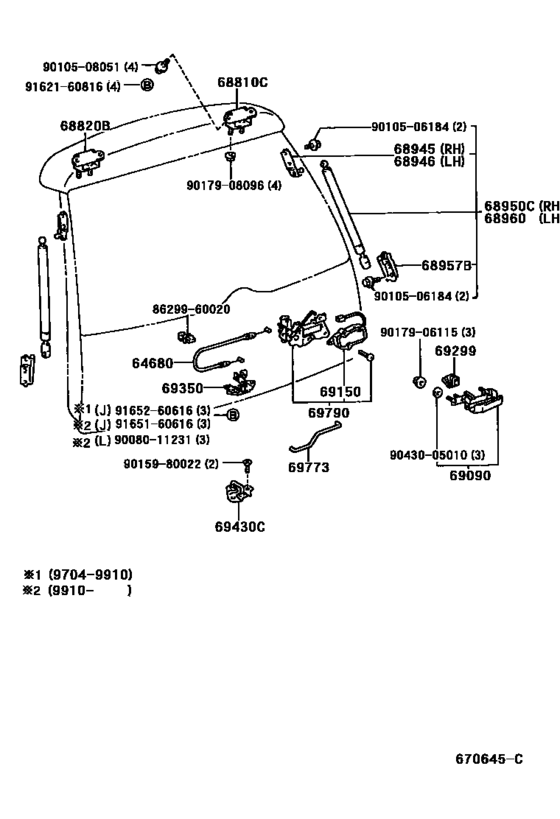

Back Door Lock & Handle ([04.1997 - ] LICENSE PLATE LAMP;SIDE LIGHTING (9704- )WG) Diagram Toyota COROLLA
- Year
- 1997 - 1998
- Sales region
- General
- Frame
- AE111
- grade
- XLI
- body
- WG
- ENGINE
- 4AFE
- TRANSMISSION
- MTM
- DESTINATION
- GEN
- Model
- COROLLA(NAP/SED/CP/HB/LB/WG)
- From
- 04.1997
- To
- 08.1998
- Gear Shift Type
- 5F
- Vehicle Model
- Corolla SED/WG
- Driver's Position
- LHD
Difficulties in parts search?
Difficulties in parts search?
| Description | OEM Part # | Price | |||
|---|---|---|---|---|---|
|
64680
|
64680
64680-13020 Cable Assy, Back Door Lock Control[04.1997 - 05.1999] AE111..RHD..WG;AE112,EE110..WG W(LICENSE PLATE LAMP; SIDE LIGHTING); AE111,112,EE110..WG W(LICENSE PLATE LAMP; SIDE LIGHTING) |
64680-13020 |
US $19.80 |
||
| replacement | |||||
|
64680
|
64680
64680-13021 Cable Assy, Back Door Lock Control[04.1997 - 05.1999] AE111..RHD..WG;AE112,EE110..WG W(LICENSE PLATE LAMP; SIDE LIGHTING); AE111,112,EE110..WG W(LICENSE PLATE LAMP; SIDE LIGHTING) |
64680-13021 |
US $19.80 |
||
|
64680
|
64680
64680-13050 Cable Assy, Back Door Lock ControlBACK DOOR LOCK CONTROL [04.1997 - 10.1999] AE111,112..WG..GEN W(LICENSE PLATE LAMP; LOWER LIGHTING) |
64680-13050 |
US $10.34 |
||
|
68810C
|
68810C
68810-21040
Hinge Assy, Back Door, Rh
[04.1997 - 10.1999] AE111,112,EE110..WG |
68810-21040 |
— | ||
|
68820B
|
68820B
68810-21040
Hinge Assy, Back Door, Rh
[04.1997 - 10.1999] AE111,112,EE110..WG |
68810-21040 |
— | ||
|
68945
|
68945
68945-13010 Bracket, Back Door Damper Stay, Upper Rh[04.1997 - 10.1999] AE111,112,EE110..WG |
68945-13010 |
US $6.26 |
||
|
68946
|
68946
68946-13010 Bracket, Back Door Damper Stay, Upper Lh[04.1997 - 10.1999] AE111,112,EE110..WG |
68946-13010 |
US $6.26 |
||
|
68950C
|
68950C
68950-80043 Stay Assy, Back Door, Rh[04.1997 - 10.1999] AE111,112,EE110..WG |
68950-80043 |
US $149.97 |
||
|
68957B
|
68957B
68957-13030 Bracket, Back Door Stay, Lower[04.1997 - 10.1999] AE111,112,EE110..WG |
68957-13030 |
US $7.28 |
||
|
68960
|
68960
68960-19595 Stay Assy, Back Door, Lh[04.1997 - 10.1999] AE111,112,EE110..WG |
68960-19595 |
US $149.97 |
||
|
69090
|
69090
69090-13010-A0
Handle Assy, Back Door, Outside
[04.1997 - 10.1999] AE111,112,EE110..WG SUPER WHITE 2,040 |
69090-13010-A0 |
— | ||
|
69090
|
69090
69090-13010-B1
Handle Assy, Back Door, Outside
[04.1997 - 10.1999] AE111,112,EE110..WG SILVER METALLIC,199 |
69090-13010-B1 |
— | ||
|
69090
|
69090
69090-13010-C0 Handle Assy, Back Door, Outside[04.1997 - 10.1999] AE111,112,EE110..WG BLACK ME,205 |
69090-13010-C0 |
US $59.84 |
||
|
69090
|
69090
69090-13010-D1 Handle Assy, Back Door, OutsideBACK DOOR, OUTSIDE [04.1997 - 10.1999] AE111..RHD..WG;AE112,EE110..WG CORAL REEF M.M,3L6; AE111,112,EE110..WG CORAL REEF M.M,3L6 |
69090-13010-D1 |
US $59.84 |
||
|
69090
|
69090
69090-13010-D2 Handle Assy, Back Door, Outside[04.1997 - 08.1998] AE111..RHD..WG;AE112,EE110..WG RED,3M7; AE111,112,EE110..WG RED,3M7 |
69090-13010-D2 |
US $59.84 |
||
|
69090
|
69090
69090-13010-G2 Handle Assy, Back Door, OutsideBACK DOOR, OUTSIDE [04.1997 - 10.1999] AE111..RHD..WG;AE112,EE110..WG GREEN M.M,6P5; AE111,112,EE110..WG GREEN M.M,6P5 |
69090-13010-G2 |
US $59.84 |
||
|
69090
|
69090
69090-13010-J1 Handle Assy, Back Door, Outside[04.1997 - 10.1999] AE111,112,EE110..WG BLUE M.M,8L5 |
69090-13010-J1 |
US $59.84 |
||
|
69090
|
69090
69090-13010-K0 Handle Assy, Back Door, OutsideBACK DOOR, OUTSIDE [04.1997 - 08.1998] AE111..RHD..WG;AE112,EE110..WG LAVENDER ME.,932; AE111,112,EE110..WG LAVENDER ME.,932 |
69090-13010-K0 |
US $59.84 |
||
|
69090
|
69090
69090-13030 Handle Assy, Back Door, OutsideBACK DOOR, OUTSIDE [04.1997 - 10.1999] AE111,112..WG..GEN W(LICENSE PLATE LAMP; LOWER LIGHTING) |
69090-13030 |
US $59.84 |
||
|
69150
|
69150
69150-13010 Actuator Assy, Back Door Lock[04.1997 - 10.1999] AE111,112,EE110..WG W(LICENSE PLATE LAMP; SIDE LIGHTING) |
69150-13010 |
US $109.20 |
||
|
69150
|
69150
69150-13030 Actuator Assy, Back Door LockBACK DOOR LOCK [04.1997 - 10.1999] AE111,112..WG..GEN W(LICENSE PLATE LAMP; LOWER LIGHTING) |
69150-13030 |
US $117.94 |
||
|
69299
|
69299
69299-13030 Grommet, Back Door Handle[04.1997 - 10.1999] AE111,112,EE110..WG |
69299-13030 |
US $3.64 |
||
|
69350
|
69350
69301-13010 Lock Assy, Back Door[04.1997 - 10.1999] AE111,112,EE110..WG W(LICENSE PLATE LAMP; SIDE LIGHTING) |
69301-13010 |
US $91.73 |
||
|
69350
|
69350
69301-13030 Lock Assy, Back DoorBACK DOOR [04.1997 - 10.1999] AE111,112..WG..GEN W(LICENSE PLATE LAMP; LOWER LIGHTING) |
69301-13030 |
US $57.80 |
||
|
69430C
|
69430C
69430-12250 Striker Assy, Back Door Lock[04.1997 - 10.1999] AE111,112,EE110..WG |
69430-12250 |
US $14.12 |
||
|
69773
|
69773
69773-13010 Link, Back Door Lock Control, No.1BACK DOOR LOCK CONTROL, NO.1 [04.1997 - 10.1999] AE111,112..WG..GEN |
69773-13010 |
US $2.62 |
||
|
69790
|
69790
69790-13020 Control Assy, Back Door Lock[04.1997 - 10.1999] AE111,112,EE110..WG W(LICENSE PLATE LAMP; SIDE LIGHTING) |
69790-13020 |
US $187.82 |
||
|
69790
|
69790
69790-13040 Control Assy, Back Door LockBACK DOOR LOCK [04.1997 - 10.1999] AE111,112..WG..GEN W(LICENSE PLATE LAMP; LOWER LIGHTING) |
69790-13040 |
US $17.33 |
||
|
8629960020
|
8629960020
86299-60020 Pad, Speaker |
86299-60020 |
US $4.96 |
||
|
9008011231
|
9008011231
90080-11231
New Genuine Part
|
90080-11231 |
— | ||
|
9010506184
|
9010506184
90105-06184 BOLT WASHER BASED |
90105-06184 |
US $1.12 |
||
|
9010508051
|
9010508051
90105-08051 New Genuine Part |
90105-08051 |
US $2.33 |
||
|
9015980022
|
9015980022
90159-80022 New Genuine Part |
90159-80022 |
US $1.60 |
||
|
9017906115
|
9017906115
90179-06115 Nut (For Rear Wiper Arm Setting) |
90179-06115 |
from US $1.92 |
||
|
9017908096
|
9017908096
90179-08096 NUT |
90179-08096 |
from US $1.42 |
||
| replacement | |||||
|
9017908096
|
9017908096
90080-18061 New Genuine Part |
90080-18061 |
US $4.47 |
||
|
9043005010
|
9043005010
90430-05010 GASKETROUND TYPE |
90430-05010 |
from US $0.74 |
||
|
9162160816
|
9162160816
91621-60816
New Genuine Part
|
91621-60816 |
— | ||
| replacement | |||||
|
9162160816
|
9162160816
91621-B0816 BOLT WWASHER |
91621-B0816 |
from US $0.84 |
||
|
9165160616
|
9165160616
91651-60616 BOLT |
91651-60616 |
from US $0.47 |
||
|
9165260616
|
9165260616
91652-60616 New Genuine Part |
91652-60616 |
US $1.46 |
||
