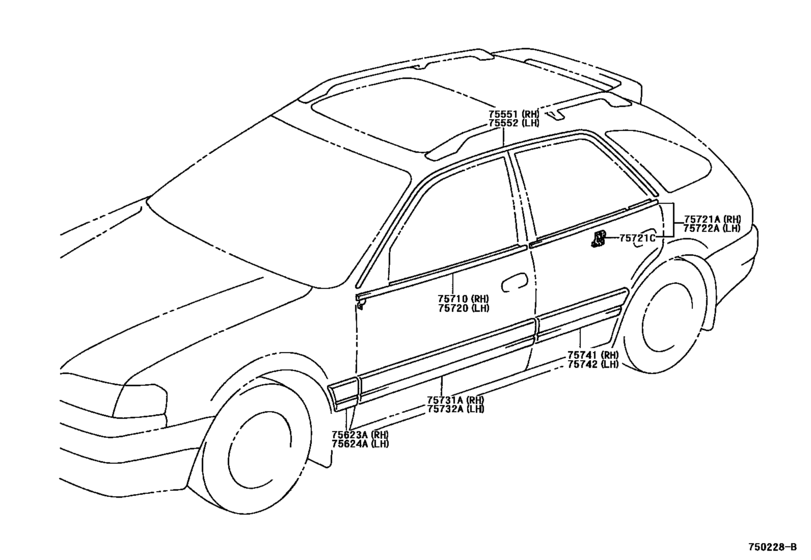

Side Moulding ([04.1997 - ] (9704- )WG) Diagram Toyota COROLLA
- Year
- 1997 - 1998
- Sales region
- General
- Frame
- AE111
- grade
- XLI
- body
- WG
- ENGINE
- 4AFE
- TRANSMISSION
- MTM
- DESTINATION
- GEN
- Model
- COROLLA(NAP/SED/CP/HB/LB/WG)
- From
- 04.1997
- To
- 08.1998
- Gear Shift Type
- 5F
- Vehicle Model
- Corolla SED/WG
- Driver's Position
- LHD
Difficulties in parts search?
Difficulties in parts search?
| Description | OEM Part # | Price | |||
|---|---|---|---|---|---|
|
75551
|
75551
75551-13150
Moulding, Roof Drip Side Finish, Rh
[04.1997 - 10.1999] AE111,112,EE110..WG |
75551-13150 |
— | ||
|
75552
|
75552
75552-13150 Moulding, Roof Drip Side Finish, Lh[04.1997 - 10.1999] AE111,112,EE110..WG |
75552-13150 |
US $64.65 |
||
|
75623A
|
75623A
75623-12720 Moulding, Front Fender, Outside Rear Rh[04.1997 - 10.1999] AE111..RHD..WG;EE110..LHD..3FC;AE111..RHD..5F..GLI..GEN;AE112,EE110..(4F,4FC,5F).. (STD,XL,XLI)..(GCC,GEN);AE110,111,CE110,EE111..SED..(SEG,XL,XLI)..(GCC,GEN) NARROW TYPE(40 IN WIDTH); AE112..GEN,NZ;AE112..XLI..GCC;AE111,CE110,EE11#..( |
75623-12720 |
US $11.21 |
||
|
75624A
|
75624A
75624-12720 Moulding, Front Fender, Outside Rear Lh[04.1997 - 10.1999] AE111..RHD..WG;EE110..LHD..3FC;AE111..RHD..5F..GLI..GEN;AE112,EE110..(4F,4FC,5F).. (STD,XL,XLI)..(GCC,GEN);AE110,111,CE110,EE111..SED..(SEG,XL,XLI)..(GCC,GEN) NARROW TYPE(40 IN WIDTH); AE112..GEN,NZ;AE112..XLI..GCC;AE111,CE110,EE11#..( |
75624-12720 |
US $11.21 |
||
|
75710
|
75710
75710-12710
Moulding Assy, Front Door Belt, Rh
[04.1997 - 10.1999] AE111,112,EE110..WG |
75710-12710 |
— | ||
|
75720
|
75720
75720-12710
Moulding Assy, Front Door Belt, Lh
[04.1997 - 10.1999] AE111,112,EE110..WG |
75720-12710 |
— | ||
|
75721A
|
75721A
75721-12450 Moulding, Rear Door Belt, Rh[04.1997 - 01.1999] AE111..RHD..WG;EE110..LHD..3FC;EE110..MTM..(STD,XL)..(GCC,GEN);AE112,CE110,EE111.. (XL,XLI)..(GCC,GEN);AE111..SED..(XL,XLI)..(GCC,GEN,TUR,VEN); AE110..TH;CE110..GEN;AE111,112,EE11#..(STD,XL,XLI)..(ARL,GCC,GEN,GENKD,IDN,NZ,PHL, TH,TUR,V |
75721-12450 |
US $79.05 |
||
|
75721C
|
75721C
68211-12240 Clip, Door Glass Weatherstrip[04.1997 -] AE111..RHD..WG;EE110..LHD..3FC;AE112,CE110,EE111..ARL,GCC,GEN,VEN;AE110,EE110..(4F ,4FC,5F)..(GL,GLI,STD,XL)..(GCC,GEN);AE111,ZZE11#..SED..(GL,GLI,XL,XLI)..(GCC,GEN, TUR,VEN); AE110..TH;AE111..MA;AE111..WG..5F;AE111..LHD..WG..4FC;AE112..XLI..( |
68211-12240 |
US $5.07 |
||
|
75722A
|
75722A
75722-12450 Moulding, Rear Door Belt, Lh[04.1997 - 01.1999] AE111..RHD..WG;EE110..LHD..3FC;EE110..MTM..(STD,XL)..(GCC,GEN);AE112,CE110,EE111.. (XL,XLI)..(GCC,GEN);AE111..SED..(XL,XLI)..(GCC,GEN,TUR,VEN); AE110..TH;CE110..GEN;AE111,112,EE11#..(STD,XL,XLI)..(ARL,GCC,GEN,GENKD,IDN,NZ,PHL, TH,TUR,V |
75722-12450 |
US $79.05 |
||
|
75731A
|
75731A
75731-1A430 Moulding, Front Door, Outside Rh[04.1997 - 10.1999] AE111..RHD..WG;EE110..LHD..3FC;AE111..RHD..5F..GLI..GEN;AE112,EE110..(4F,4FC,5F).. (STD,XL,XLI)..(GCC,GEN);AE110,111,CE110,EE111..SED..(SEG,XL,XLI)..(GCC,GEN) NARROW TYPE(40 IN WIDTH); AE112..GEN,NZ;AE112..XLI..GCC;AE111,CE110,EE11#..( |
75731-1A430 |
US $77.68 |
||
|
75732A
|
75732A
75732-1A270 Moulding, Front Door, Outside Lh[04.1997 - 10.1999] AE111..RHD..WG;EE110..LHD..3FC;AE111..RHD..5F..GLI..GEN;AE112,EE110..(4F,4FC,5F).. (STD,XL,XLI)..(GCC,GEN);AE110,111,CE110,EE111..SED..(SEG,XL,XLI)..(GCC,GEN) NARROW TYPE(40 IN WIDTH); AE112..GEN,NZ;AE112..XLI..GCC;AE111,CE110,EE11#..( |
75732-1A270 |
US $72.07 |
||
|
75741
|
75741
75741-1A020 Moulding, Rear Door, Outside Rh[04.1997 - 10.1999] AE111..RHD..WG;EE110..LHD..3FC;AE111..RHD..5F..GLI..GEN;AE112,EE110..(4F,4FC,5F).. (STD,XL,XLI)..(GCC,GEN);AE110,111,CE110,EE111..SED..(SEG,XL,XLI)..(GCC,GEN) NARROW TYPE(40 IN WIDTH); AE112..GEN,NZ;AE112..XLI..GCC;AE111,CE110,EE11#..( |
75741-1A020 |
US $55.40 |
||
|
75742
|
75742
75742-1A010 Moulding, Rear Door, Outside Lh[04.1997 - 10.1999] AE111..RHD..WG;EE110..LHD..3FC;AE111..RHD..5F..GLI..GEN;AE112,EE110..(4F,4FC,5F).. (STD,XL,XLI)..(GCC,GEN);AE110,111,CE110,EE111..SED..(SEG,XL,XLI)..(GCC,GEN) NARROW TYPE(40 IN WIDTH); AE112..GEN,NZ;AE112..XLI..GCC;AE111,CE110,EE11#..( |
75742-1A010 |
US $55.47 |
