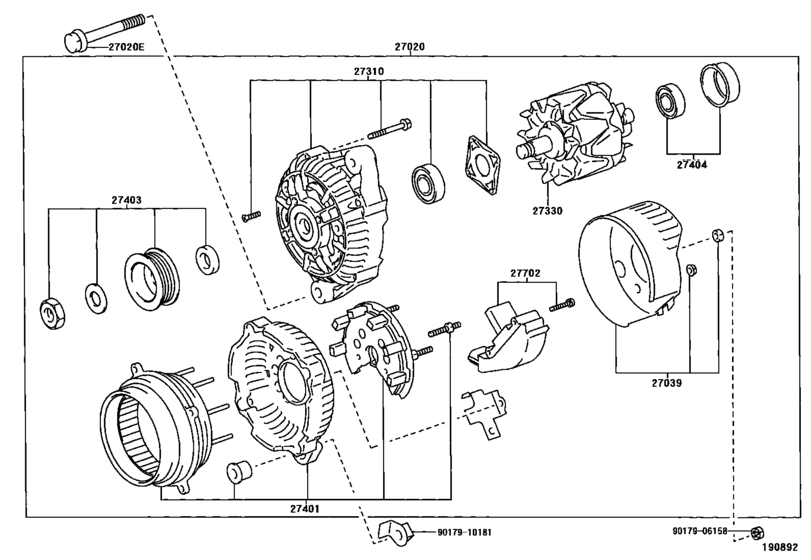

Alternator ([09.1998 - 11.1999] 12V 70A (9809-9911)4AFE..UKP) Diagram Toyota COROLLA
- Year
- 1998 - 1999
- Sales region
- Europe
- Frame
- AE111
- grade
- TERRA
- body
- LB
- ENGINE
- 4AFE
- TRANSMISSION
- MTM
- PRODUCT
- UKP
- Model
- COROLLA(NAP/SED/CP/HB/LB/WG)
- From
- 09.1998
- To
- 11.1999
- Gear Shift Type
- 5F
- Vehicle Model
- Corolla HB/LB
- Driver's Position
- LHD
Difficulties in parts search?
Difficulties in parts search?
| Description | OEM Part # | Price | |||
|---|---|---|---|---|---|
|
27020
|
27020
27060-02061
Alternator Assy
[09.1998 - 11.1999] 4AFE..AE111..UKP 12V 70A |
27060-02061 |
— | ||
| replacement | |||||
|
27020
|
27020
27060-02100
Alternator Assy
[09.1998 - 11.1999] 4AFE..AE111..UKP 12V 70A |
27060-02100 |
— | ||
|
27020E
|
27020E
90105-10336 Bolt(For Alternator)[09.1998 - 11.1999] 4AFE..AE111..UKP |
90105-10336 |
US $4.96 |
||
|
27039
|
27039
27039-02100
Cover, Alternator Rear End
[09.1998 - 11.1999] 4AFE..AE111..UKP |
27039-02100 |
— | ||
|
27310
|
27310
27310-02020
Frame Assy, Drive End, Alternator
[09.1998 - 11.1999] 4AFE..AE111..UKP |
27310-02020 |
— | ||
|
27330
|
27330
27330-02020 Rotor Assy, AlternatorALTERNATOR [09.1998 - 11.1999] 4AFE..AE111..UKP |
27330-02020 |
US $412.05 |
||
|
27401
|
27401
27401-02010
Stator Sub-Assy Alternator W/rectifier
[09.1998 - 11.1999] 4AFE..AE111..UKP |
27401-02010 |
— | ||
|
27403
|
27403
27403-02010
Pulley Set, Alternator
[09.1998 - 11.1999] 4AFE..AE111..UKP |
27403-02010 |
— | ||
|
27404
|
27404
27404-02010
Bearing Set, Alternator
[09.1998 - 11.1999] 4AFE..AE111..UKP |
27404-02010 |
— | ||
|
27702
|
27702
27702-02010
Regulator Sub-Assy Generator W/brush
[09.1998 - 11.1999] 4AFE..AE111..UKP |
27702-02010 |
— | ||
|
9017906158
|
9017906158
90179-06158 Nut, Rear Wiper Link Pivot, No.2 |
90179-06158 |
from US $0.99 |
||
|
9017910181
|
9017910181
90179-10181 New Genuine Part |
90179-10181 |
US $2.56 |
||
