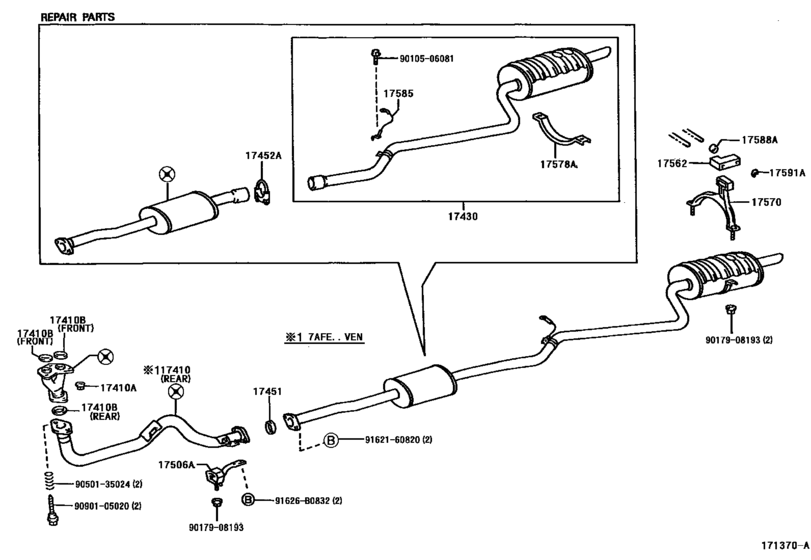

Exhaust Pipe ([09.1999 - ] W/O(CONVERTER) (9711-9910)4AFE..PHL ; (9805-9909)4AFE,7AFE..VEN ; (9909- )4AFE..VEN) Diagram Toyota COROLLA
- Year
- 1998 - 2002
- Sales region
- General
- Frame
- AE111
- grade
- XLI
- body
- SED
- ENGINE
- 4AFE
- TRANSMISSION
- MTM
- DESTINATION
- VEN
- Model
- COROLLA(NAP/SED/CP/HB/LB/WG)
- From
- 05.1998
- To
- 08.2002
- Gear Shift Type
- 5F
- Vehicle Model
- Corolla SED/WG
- Driver's Position
- LHD
Difficulties in parts search?
Difficulties in parts search?
| Description | OEM Part # | Price | |||
|---|---|---|---|---|---|
|
17410
|
17410
17410-1A570 Pipe Assy, Exhaust, FrontEXHAUST, FRONT [10.1997 - 01.1999] 4AFE..AE111..NZ,TH,VEN W(CONVERTER) |
17410-1A570 |
US $313.04 |
||
|
17410A
|
17410A
90179-10070 Nut, Exhaust Pipe Set Stud Bolt[05.1995 - 01.1999] 2E..EE110..GCC,GEN;4AFE..AE111..RHD..GEN;4AF,7AFE..AE111,112..ARL,GCC,GEN,VEN;4AFE ..AE111..LHD..SED..(GCC,GEN,TUR,VEN) |
90179-10070 |
from US $1.54 |
||
| replacement | |||||
|
17410A
|
17410A
90080-17187 Nut, Exhaust Pipe Set Stud Bolt[05.1995 - 01.1999] 2E..EE110..GCC,GEN;4AFE..AE111..RHD..GEN;4AF,7AFE..AE111,112..ARL,GCC,GEN,VEN;4AFE ..AE111..LHD..SED..(GCC,GEN,TUR,VEN) |
90080-17187 |
US $33.80 |
||
|
17410B
|
17410B
17451-16030 Gasket, Exhaust Pipe[05.1995 - 09.1999] 4AFE..AE111..RHD..GEN;4AF,7AFE..AE111,112..GCC,GEN,VEN;4AFE..AE111..LHD..SED..(GCC ,GEN,VEN) W/O(CONVERTER),REAR |
17451-16030 |
from US $21.86 |
||
|
17410B
|
17410B
90917-06061 Gasket, Exhaust Pipe[05.1996 - 08.1998] 4AFE..AE111..RHD..GEN;4AFE..AE111..LHD..SED..(GEN,TUR,VEN) W(CONVERTER) |
90917-06061 |
from US $5.17 |
||
|
17410B
|
17410B
90917-06064 Gasket, Exhaust Pipe[05.1995 - 09.1999] 4AFE..AE111..RHD..GEN;4AF,7AFE..AE111,112..GCC,GEN,VEN;4AFE..AE111..LHD..SED..(GCC ,GEN,VEN) W/O(CONVERTER),FRONT |
90917-06064 |
from US $5.25 |
||
|
17430
|
17430
17430-11820 Pipe Assy, Exhaust, TailEXHAUST, TAIL [05.1995 - 11.1998] 2E..EE110..GCC,GEN;4AFE..AE111..RHD..GEN;4AF,7AFE..AE111,112..GCC,GEN,VEN;4AFE..AE 111..LHD..SED..(GCC,GEN,VEN) W/O(CONVERTER) |
17430-11820 |
US $476.11 |
||
| replacement | |||||
|
17430
|
17430
17430-11821 Pipe Assy, Exhaust, TailEXHAUST, TAIL [05.1995 - 11.1998] 2E..EE110..GCC,GEN;4AFE..AE111..RHD..GEN;4AF,7AFE..AE111,112..GCC,GEN,VEN;4AFE..AE 111..LHD..SED..(GCC,GEN,VEN) W/O(CONVERTER) |
17430-11821 |
US $477.57 |
||
|
17430
|
17430
17430-11821 Pipe Assy, Exhaust, TailEXHAUST, TAIL [11.1998 - 09.1999] 2E..EE110..LHD..3FC;2E..EE110..MTM..(GCC,GEN);4AF#,7AFE..AE111,112..GCC,GEN,VEN W/O(CONVERTER); 4AF#,7AFE,2E..AE111,112,EE110..GCC,GEN,GENKD,IDN,PHL,VEN W/O(CONVERTER) |
17430-11821 |
US $477.57 |
||
|
17451
|
17451
90917-06039 Gasket, Exhaust Pipe[11.1997 - 09.1999] 4AFE,7AFE,2E..AE111,112,EE110..PHL,VEN W/O(CONVERTER) |
90917-06039 |
from US $2.36 |
||
|
17451
|
17451
90917-06084 Gasket, Exhaust PipeEXHAUST PIPE [04.1997 - 10.1999] 7AFE..AE112..ARL,GEN;4AFE..AE111..RHD..(GLI,XLI)..GEN;4AFE..AE111..LHD..SED..(GEN, TUR,VEN) W(CONVERTER); 7AFE..AE112..ARL,BZ,GEN,NZ,TH;4AFE..AE111..(GLI,XLI)..(ARL,GEN,NZ,TH,TUR,VEN) W(CONVERTER) |
90917-06084 |
US $5.10 |
||
|
17452A
|
17452A
17452-16120 Clamp, Exhaust Pipe[04.1997 - 09.1999] 4AFE..AE111..VEN;2E..EE110..LHD..3FC;7AFE..AE112..GEN,VEN;2E..EE110..MTM..(GCC,GEN ); 4AFE..AE111..MA,VEN;7AFE..AE112..GEN,VEN;2E..EE110..GCC,GEN,GENKD,PHL,VEN |
17452-16120 |
US $31.62 |
||
|
17506A
|
17506A
17506-11100 Bracket Sub-Assy, Exhaust Pipe No.1 Support[04.1997 -] 2E..EE110..LHD..3FC;2E..EE110..MTM..(GCC,GEN);4AF,5AFE..AE110,111..GL,GLI,XL;4AFE. .AE111..RHD..(GLI,XLI)..GEN;7AFE,4EFE..AE112,EE111..ARL,GCC,GEN,VEN;4AFE..AE111..L HD..SED..(GCC,GEN,TUR,VEN); 5AFE..AE110..TH;4AFE..AE111..MA;4AFE..AE111..WG.. |
17506-11100 |
US $45.78 |
||
|
17562
|
17562
17562-16240 Support, Exhaust Pipe, No.2[05.1995 -] 2E..EE110..GCC,GEN;4AFE..AE111..RHD..GEN;4AF,5AFE,7AFE,2C#,4EFE..AE11#,CE110,EE111 ..ARL,GCC,GEN,VEN;4AFE,3ZZFE,4ZZFE..AE111,ZZE11#..LHD..SED..(GCC,GEN,TUR,VEN) |
17562-16240 |
from US $18.60 |
||
|
17570
|
17570
17570-16020 Bracket Assy, Exhaust Pipe Support[05.1995 - 08.2002] 2E..EE110..GCC,GEN;4AFE..AE111..RHD..GEN;4AF,7AFE..AE111,112..ARL,GCC,GEN,VEN;4AFE ..AE111..LHD..SED..(GCC,GEN,TUR,VEN) |
17570-16020 |
from US $17.96 |
||
|
17578A
|
17578A
17578-11030 Clamp, Muffler[11.1998 - 08.2002] 2E..EE110..LHD..3FC;4AFE..AE111..WG..4FC;2E..EE110..MTM..(GCC,GEN);4AFE..AE111..LH D..(GCC,GEN,VEN);4AF,7AFE,3ZZFE,4ZZFE..AE111,112,ZZE11#..ARL,GCC,GEN,TUR,VEN |
17578-11030 |
US $43.68 |
||
|
17578A
|
17578A
17578-16040 Clamp, MufflerMUFFLER [05.1995 - 08.1998] 2E..EE110..GCC,GEN;4AFE..AE111..RHD..GEN;4AFE..AE111..4FC..TUR;4AF,7AFE..AE111,112 ..GCC,GEN,VEN;4AFE..AE111..LHD..SED..(GCC,GEN,VEN) |
17578-16040 |
US $28.10 |
||
| replacement | |||||
|
17578A
|
17578A
17578-11030 Clamp, Muffler[05.1995 - 08.1998] 2E..EE110..GCC,GEN;4AFE..AE111..RHD..GEN;4AFE..AE111..4FC..TUR;4AF,7AFE..AE111,112 ..GCC,GEN,VEN;4AFE..AE111..LHD..SED..(GCC,GEN,VEN) |
17578-11030 |
US $43.68 |
||
|
17585
|
17585
17585-16060 Hanger, Exhaust Pipe[05.1995 - 09.1999] 2E..EE110..GCC,GEN;4AFE..AE111..RHD..GEN;4AFE..AE111..4FC..TUR;4AFE..AE111..LHD..S ED..(GCC,GEN,VEN);4AF,5AFE,7AFE,4EFE..AE11#,EE111..ARL,GCC,GEN,VEN |
17585-16060 |
US $9.03 |
||
|
17588A
|
17588A
17588-16020 Spacer, Exhaust Pipe Hanger[05.1995 -] 2E..EE110..GCC,GEN;4AFE..AE111..RHD..GEN;4AF,5AFE,7AFE,2C#,4EFE..AE11#,CE110,EE111 ..ARL,GCC,GEN,VEN;4AFE,3ZZFE,4ZZFE..AE111,ZZE11#..LHD..SED..(GCC,GEN,TUR,VEN) |
17588-16020 |
US $6.88 |
||
|
17591A
|
17591A
17591-16020 Stopper, Exhaust Pipe Support[05.1995 -] 2E..EE110..GCC,GEN;4AFE..AE111..RHD..GEN;4AF,5AFE,7AFE,2C#,4EFE..AE11#,CE110,EE111 ..ARL,GCC,GEN,VEN;4AFE,3ZZFE,4ZZFE..AE111,ZZE11#..LHD..SED..(GCC,GEN,TUR,VEN) |
17591-16020 |
from US $0.82 |
||
|
91626B0832
|
91626B0832
91626-B0832
New Genuine Part
|
91626-B0832 |
— | ||
| replacement | |||||
|
91626B0832
|
91626B0832
91651-B0830 New Genuine Part |
91651-B0830 |
US $1.44 |
||
|
9010506081
|
9010506081
90105-06081
BOLT FLANGE
|
90105-06081 |
— | ||
| replacement | |||||
|
9010506081
|
9010506081
91511-B0614 BOLT, FLANGE |
91511-B0614 |
from US $0.74 |
||
|
9017908193
|
9017908193
90179-08193 NUT |
90179-08193 |
US $2.72 |
||
|
9050135024
|
9050135024
90501-35024 SPRING COMPRESSION |
90501-35024 |
from US $4.45 |
||
|
9090105020
|
9090105020
90901-05020 Bolt Or Ring, Exhaust Pipe Front (For Front) |
90901-05020 |
from US $3.68 |
||
|
9162160820
|
9162160820
91621-60820 New Genuine Part |
91621-60820 |
US $1.75 |
||
| replacement | |||||
|
9162160820
|
9162160820
91651-B0822 BOLT WWASHER |
91651-B0822 |
US $1.76 |
||
