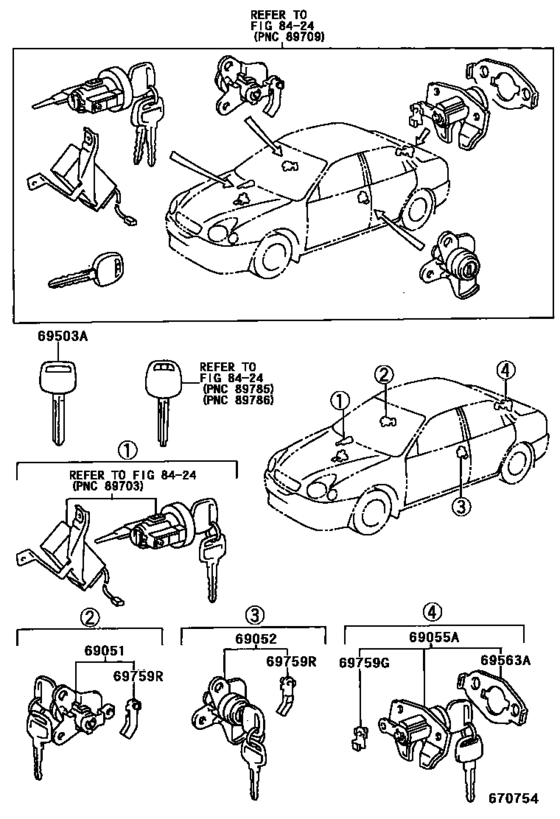

Lock Cylinder Set ([05.1998 - ] W(ENGINE IMMOBILIZER SYSTEM) (9805- )AE111,112..VEN) Diagram Toyota COROLLA
- Year
- 1998 - 2002
- Sales region
- General
- Frame
- AE111
- grade
- XLI
- body
- SED
- ENGINE
- 4AFE
- TRANSMISSION
- MTM
- DESTINATION
- VEN
- Model
- COROLLA(NAP/SED/CP/HB/LB/WG)
- From
- 05.1998
- To
- 08.2002
- Gear Shift Type
- 5F
- Vehicle Model
- Corolla SED/WG
- Driver's Position
- LHD
Difficulties in parts search?
Difficulties in parts search?
| Description | OEM Part # | Price | |||
|---|---|---|---|---|---|
|
69051
|
69051
69051-12490 Cylinder & Key Set, Door Lock, Rh[08.1998 - 10.1998] AE112..GEN;EE110..LHD..3FC;AE112,EE110..SED..(4F,4FC,5F)..(GCC,GEN);AE110,111,CE11 0,EE111..SED..(GCC,GEN,VEN); AE112..GEN;AE112..SED..(GCC,IDN,NZ,TH);AE110,111,CE110,EE11#..SED..(GCC,GEN,GENKD, MA,NZ,PHL,TH,VEN); AE110..4FC..GEN |
69051-12490 |
US $53.87 |
||
| replacement | |||||
|
69051
|
69051
69051-12530 Cylinder & Key Set, Door Lock, RhDOOR LOCK, RH [08.1998 - 10.1998] AE112..GEN;EE110..LHD..3FC;AE112,EE110..SED..(4F,4FC,5F)..(GCC,GEN);AE110,111,CE11 0,EE111..SED..(GCC,GEN,VEN); AE112..GEN;AE112..SED..(GCC,IDN,NZ,TH);AE110,111,CE110,EE11#..SED..(GCC,GEN,GENKD, MA,NZ,PHL,TH,VEN); AE110..4FC..GEN |
69051-12530 |
US $70.91 |
||
|
69051
|
69051
69051-12520 Cylinder & Key Set, Door Lock, Rh[04.1998 - 08.1998] EE110..MTM..GEN;EE110..LHD..3FC;AE111..RHD..GLI..GEN;AE111,CE110..SED..(GL,XL,XLI) ..GEN; AE111,EE110..PHL,VEN W(LICENSE PLATE LAMP; LOWER LIGHTING) |
69051-12520 |
US $62.46 |
||
| replacement | |||||
|
69051
|
69051
69051-12530 Cylinder & Key Set, Door Lock, RhDOOR LOCK, RH [04.1998 - 08.1998] EE110..MTM..GEN;EE110..LHD..3FC;AE111..RHD..GLI..GEN;AE111,CE110..SED..(GL,XL,XLI) ..GEN; AE111,EE110..PHL,VEN W(LICENSE PLATE LAMP; LOWER LIGHTING) |
69051-12530 |
US $70.91 |
||
|
69051
|
69051
69051-12530 Cylinder & Key Set, Door Lock, RhDOOR LOCK, RH [05.1998 - 02.2000] AE111,112..VEN W(ENGINE IMMOBILIZER SYSTEM) |
69051-12530 |
US $70.91 |
||
|
69051
|
69051
69051-12590 Cylinder & Key Set, Door Lock, Rh[10.1998 - 11.1998] EE110..LHD..3FC;AE112,EE110..SED..(4F,4FC,5F)..(GCC,GEN);AE110,111,CE110,EE111..SE D..(GCC,GEN,VEN); AE112..SED..(GCC,IDN,TH);AE110,111,CE110,EE11#..SED..(GCC,GEN,GENKD,MA,PHL,TH,VEN); AE110..4FC..GEN |
69051-12590 |
US $54.02 |
||
| replacement | |||||
|
69051
|
69051
69051-12530 Cylinder & Key Set, Door Lock, RhDOOR LOCK, RH [10.1998 - 11.1998] EE110..LHD..3FC;AE112,EE110..SED..(4F,4FC,5F)..(GCC,GEN);AE110,111,CE110,EE111..SE D..(GCC,GEN,VEN); AE112..SED..(GCC,IDN,TH);AE110,111,CE110,EE11#..SED..(GCC,GEN,GENKD,MA,PHL,TH,VEN); AE110..4FC..GEN |
69051-12530 |
US $70.91 |
||
|
69052
|
69052
69052-12490 Cylinder & Key Set, Door Lock, Lh[08.1998 - 11.1998] AE112..GEN;EE110..LHD..3FC;AE112,EE110..SED..(4F,4FC,5F)..(GCC,GEN);AE110,111,CE11 0,EE111..SED..(GCC,GEN,VEN); AE112..GEN;AE112..SED..(GCC,IDN,NZ,TH);AE110,111,CE110,EE11#..SED..(GCC,GEN,GENKD, MA,NZ,PHL,TH,VEN); AE110..4FC..GEN |
69052-12490 |
US $54.02 |
||
|
69052
|
69052
69052-12520 Cylinder & Key Set, Door Lock, Lh[04.1998 - 08.1998] EE110..MTM..GEN;EE110..LHD..3FC;AE111..RHD..GLI..GEN;AE111,CE110..SED..(GL,XL,XLI) ..GEN; AE111,EE110..PHL,VEN |
69052-12520 |
US $62.46 |
||
| replacement | |||||
|
69052
|
69052
69052-12530 Cylinder & Key Set, Door Lock, LhDOOR LOCK, LH [04.1998 - 08.1998] EE110..MTM..GEN;EE110..LHD..3FC;AE111..RHD..GLI..GEN;AE111,CE110..SED..(GL,XL,XLI) ..GEN; AE111,EE110..PHL,VEN |
69052-12530 |
US $70.91 |
||
|
69052
|
69052
69052-12530 Cylinder & Key Set, Door Lock, LhDOOR LOCK, LH [05.1998 - 02.2000] AE111,112..VEN W(ENGINE IMMOBILIZER SYSTEM) |
69052-12530 |
US $70.91 |
||
|
69055A
|
69055A
69055-1A220
Cylinder & Key Set, Luggage Compartment Lock
[05.1998 - 02.2000] AE111,112..VEN W(ENGINE IMMOBILIZER SYSTEM) |
69055-1A220 |
— | ||
|
69055A
|
69055A
69055-1A240 Cylinder & Key Set, Luggage Compartment Lock[03.1998 - 08.1998] EE110..MTM..GEN;EE110..LHD..3FC;AE111..RHD..GLI..GEN;AE111,CE110..SED..(GL,XL,XLI) ..(GEN,VEN) W(LUGGAGE COMPARTMENT DOOR GARNISH); AE111..PHL;AE111..RHD..GLI..GEN;AE111,CE110,EE110..SED..(GL,STD,XL,XLI)..(GEN,PHL, VEN) W(LUGGAGE COMPA |
69055-1A240 |
US $62.32 |
||
| replacement | |||||
|
69055A
|
69055A
69055-1A220
Cylinder & Key Set, Luggage Compartment Lock
[03.1998 - 08.1998] EE110..MTM..GEN;EE110..LHD..3FC;AE111..RHD..GLI..GEN;AE111,CE110..SED..(GL,XL,XLI) ..(GEN,VEN) W(LUGGAGE COMPARTMENT DOOR GARNISH); AE111..PHL;AE111..RHD..GLI..GEN;AE111,CE110,EE110..SED..(GL,STD,XL,XLI)..(GEN,PHL, VEN) W(LUGGAGE COMPA |
69055-1A220 |
— | ||
|
69055A
|
69055A
69055-1A350 Cylinder & Key Set, Luggage Compartment Lock[08.1998 - 10.1999] EE110..LHD..3FC;AE111,CE110..SED..(GCC,GEN,VEN);AE112,EE110..SED..(4F,4FC,5F)..(GC C,GEN) W(LUGGAGE COMPARTMENT DOOR OUTSIDE GARNISH=TYPE B;REFER TO ILLUSTRATION); AE112..SED..GCC;AE111,CE110,EE110..SED..(GCC,GEN,GENKD,PHL,VEN) W(LUGGA |
69055-1A350 |
US $62.46 |
||
| replacement | |||||
|
69055A
|
69055A
69055-1A220
Cylinder & Key Set, Luggage Compartment Lock
[08.1998 - 10.1999] EE110..LHD..3FC;AE111,CE110..SED..(GCC,GEN,VEN);AE112,EE110..SED..(4F,4FC,5F)..(GC C,GEN) W(LUGGAGE COMPARTMENT DOOR OUTSIDE GARNISH=TYPE B;REFER TO ILLUSTRATION); AE112..SED..GCC;AE111,CE110,EE110..SED..(GCC,GEN,GENKD,PHL,VEN) W(LUGGA |
69055-1A220 |
— | ||
|
69503A
|
69503A
90999-00185 Key, Blank[05.1995 - 12.1998] AE111..RHD..WG;AE111..SED..(GCC,GEN,VEN);AE110,112,CE110,EE11#..GCC,GEN MASTER KEY,W(*68) |
90999-00185 |
from US $11.88 |
||
|
69503A
|
69503A
90999-00186 Key, Blank[05.1995 - 12.1998] AE112,EE110..SED..(GCC,GEN);AE110,111,CE110,EE111..SED..(GCC,GEN,VEN) MASTER KEY |
90999-00186 |
from US $6.88 |
||
|
69503A
|
69503A
90999-00188 Key, Blank[05.1995 - 12.1998] AE112,EE110..SED..(GCC,GEN);AE110,111,CE110,EE111..SED..(GCC,GEN,VEN) SUB KEY |
90999-00188 |
from US $5.88 |
||
|
69563A
|
69563A
69563-12130 Pad, Luggage Compartment Door Lock Cylinder[04.1997 - 12.1998] EE110..LHD..3FC;AE112,EE111..SED..(ARL,GCC,GEN,VEN);AE111..SED..(GL,GLI,XL,XLI)..( GCC,GEN,TUR,VEN);AE110,CE110,EE110..SED..(4F,4FC,5F)..(GL,GLI,STD,XL)..(GCC,GEN); AE110..TH;AE111..MA;AE110..GLI;AE112,CE110,EE11#..SED;AE111..SED..(GL, |
69563-12130 |
US $5.24 |
||
|
69759G
|
69759G
69759-24090 Snap, Front Door Lock Control Rod[05.1995 -] EE110..SED..(GCC,GEN);AE111,ZZE11#..SED..(GCC,GEN,TUR,VEN);AE110,112,CE110,EE111.. SED..(ARL,GCC,GEN,VEN) |
69759-24090 |
US $2.88 |
||
|
69759R
|
69759R
69759-12080 Snap, Front Door Lock Cylinder[05.1995 - 12.1998] EE110..GCC,GEN;AE111..RHD..WG;AE111..SED..(GCC,GEN,TUR,VEN);AE110,112,CE110,EE111. .ARL,GCC,GEN,VEN RH |
69759-12080 |
US $3.14 |
||
|
69759R
|
69759R
69759-12090 Snap, Front Door Lock Cylinder[05.1995 - 12.1998] EE110..GCC,GEN;AE111..RHD..WG;AE111..SED..(GCC,GEN,TUR,VEN);AE110,112,CE110,EE111. .ARL,GCC,GEN,VEN LH |
69759-12090 |
US $2.33 |
||
