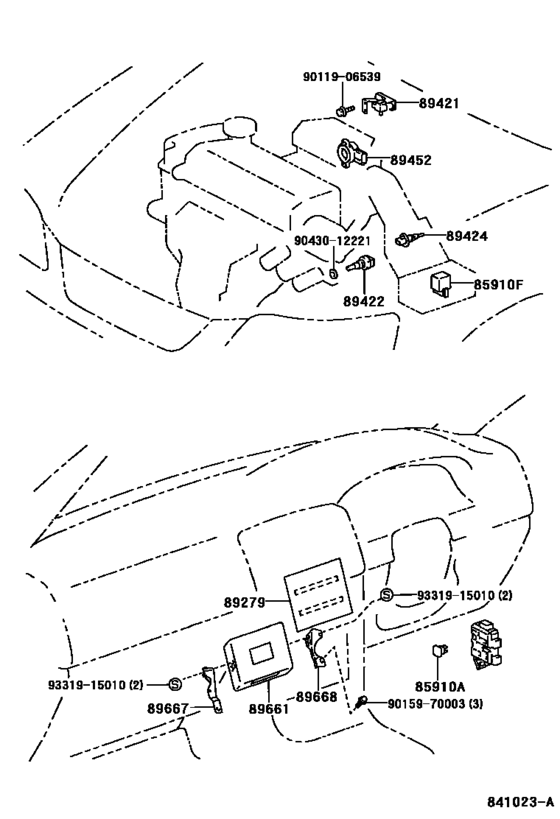

Electronic Fuel Injection System ([04.1997 - ] (9704- )AE11#) Diagram Toyota COROLLA
- Year
- 1997 - 1999
- Sales region
- Europe
- Frame
- AE111
- grade
- TERRA
- body
- SED
- ENGINE
- 4AFE
- TRANSMISSION
- MTM
- Model
- COROLLA(NAP/SED/CP/HB/LB/WG)
- From
- 04.1997
- To
- 10.1999
- Gear Shift Type
- 5F
- Vehicle Model
- Corolla SED/WG
- Driver's Position
- RHD
Difficulties in parts search?
Difficulties in parts search?
| Description | OEM Part # | Price | |||
|---|---|---|---|---|---|
|
85910A
|
85910A
90080-87008
Relay Assy, Circuit Opening (For Efi)
[10.1997 - 10.1999] AE111,EE111 (L) |
90080-87008 |
— | ||
|
85910A
|
85910A
90987-02012 Relay, Ignition, No.1[04.1997 - 10.1997] AE11#,EE111 |
90987-02012 |
from US $27.85 |
||
|
85910F
|
85910F
90080-87008
Relay Assy, Circuit Opening (For Efi)
[10.1997 - 10.1999] AE111,EE111 (L) |
90080-87008 |
— | ||
|
85910F
|
85910F
90987-02012 Relay, Ignition, No.1[04.1997 - 10.1997] AE11#,EE111 |
90987-02012 |
from US $27.85 |
||
|
89279
|
89279
89279-13020 Cover, Engine Control Computer[04.1997 - 10.1999] AE11# |
89279-13020 |
US $24.75 |
||
|
89421
|
89421
89420-02020
Sensor Assy, Vacuum (For E.f.i.)
[09.1998 - 10.1999] AE111..RHD DELCO |
89420-02020 |
— | ||
| replacement | |||||
|
89421
|
89421
89420-12070
Sensor Assy, Vacuum (For E.f.i.)
[09.1998 - 10.1999] AE111..RHD DELCO |
89420-12070 |
— | ||
|
89421
|
89421
89420-12070
Sensor Assy, Vacuum (For E.f.i.)
[04.1997 - 08.1998] AE111..RHD PART NUMBER LABEL=89420-12070,DENSO |
89420-12070 |
— | ||
|
89421
|
89421
89420-12190 Sensor Assy, Vacuum (For E.f.i.)[05.1998 - 10.1999] AE111..RHD DENSO |
89420-12190 |
US $126.67 |
||
|
89422
|
89422
89422-35010 Sensor, Water Temperature (For E.f.i.)[04.1997 - 10.1999] AE11# |
89422-35010 |
from US $40.58 |
||
|
89424
|
89424
89424-12010 Sensor, Inlet Air Temperature (For E.f.i.)[04.1997 - 10.1999] AE11#,EE111 |
89424-12010 |
from US $57 |
||
|
89452
|
89452
89452-33030 Sensor, Throttle Position (For E.f.i.)[04.1997 - 10.1999] AE111 |
89452-33030 |
from US $40.89 |
||
|
89661
|
89661
89661-1A780
Computer, Engine Control
[04.1997 - 10.1999] AE111..5F |
89661-1A780 |
— | ||
|
89667
|
89667
89667-12130 Bracket, Engine Control Computer[04.1997 - 10.1999] AE11#,EE111 |
89667-12130 |
US $9.61 |
||
|
89668
|
89668
89668-12060 Bracket, Engine Control Computer, No.2[04.1997 - 10.1999] AE11#,EE111 |
89668-12060 |
US $6.84 |
||
|
9011906539
|
9011906539
90119-06539 New Genuine Part |
90119-06539 |
US $1.46 |
||
|
9015970003
|
9015970003
90159-70003 Bolt, W/washer |
90159-70003 |
from US $0.52 |
||
|
9043012221
|
9043012221
90430-12221 Gasket |
90430-12221 |
from US $1.13 |
||
|
9331915010
|
9331915010
93319-15010 SCREW |
93319-15010 |
US $1.02 |
||
