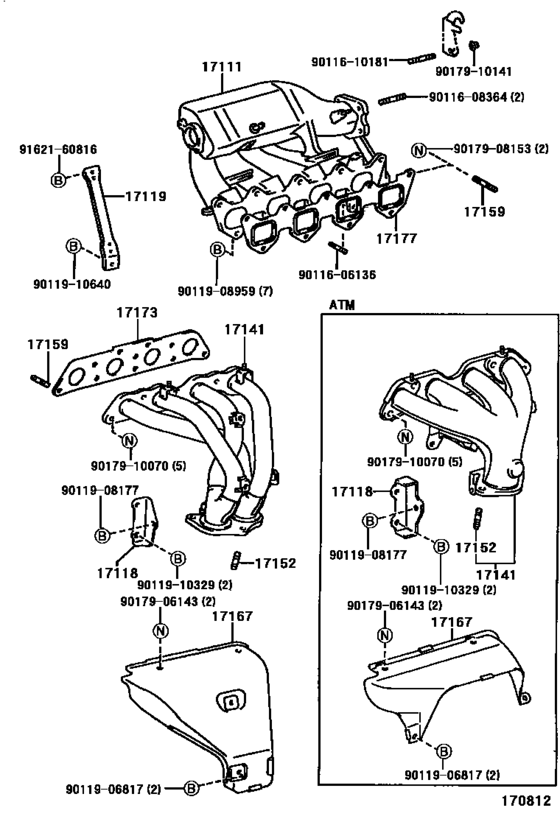

Manifold ([04.1997 - 10.1999] (9704-9910)4AFE) Diagram Toyota COROLLA
- Year
- 1997 - 1999
- Sales region
- Europe
- Frame
- AE111
- grade
- TERRA
- body
- SED
- ENGINE
- 4AFE
- TRANSMISSION
- MTM
- Model
- COROLLA(NAP/SED/CP/HB/LB/WG)
- From
- 04.1997
- To
- 10.1999
- Gear Shift Type
- 5F
- Vehicle Model
- Corolla SED/WG
- Driver's Position
- RHD
Difficulties in parts search?
Difficulties in parts search?
| Description | OEM Part # | Price | |||
|---|---|---|---|---|---|
|
17111
|
17111
17101-16280 Manifold, Intake[04.1997 - 10.1999] 4AFE..AE111 |
17101-16280 |
US $570.75 |
||
|
17118
|
17118
17118-16140 Stay, ManifoldMANIFOLD [04.1997 - 10.1999] 4AFE..AE111..5F |
17118-16140 |
US $26.06 |
||
|
17119
|
17119
17139-15050 Stay, Manifold, No.2[04.1997 - 10.1999] 4AFE..AE111 |
17139-15050 |
US $26.79 |
||
|
17141
|
17141
17141-16320 Manifold, Exhaust[04.1997 - 10.1999] 4AFE..AE111..5F |
17141-16320 |
US $362.54 |
||
|
17152
|
17152
90116-10146 Bolt, Stud(For Manifold To Exhaust Pipe)[04.1997 - 10.1999] 4AFE..AE111..5F |
90116-10146 |
from US $1.91 |
||
|
17159
|
17159
92112-60825 Bolt, Stud(For Oil Filter)[04.1997 - 10.1999] 4AFE,7AFE..AE11# INTAKE MANIFOLD |
92112-60825 |
US $2.56 |
||
|
17159
|
17159
92112-61028 Bolt, Stud(For Manifold To Cylinder Head)[04.1997 - 10.1999] 4AFE,7AFE..AE11# EXHAUST MANIFOLD |
92112-61028 |
US $3.84 |
||
|
17167
|
17167
17167-16171
Insulator, Exhaust Manifold Heat, No.1
[04.1997 - 10.1999] 4AFE..AE111..5F |
17167-16171 |
— | ||
|
17173
|
17173
17173-15040 Gasket, Exhaust Manifold To Head[04.1997 - 10.1999] 4AFE,7AFE..AE11# |
17173-15040 |
from US $22.64 |
||
|
17177
|
17177
17171-15030 Gasket, Intake Manifold To Head, No.1[04.1997 - 10.1999] 4AFE,7AFE..AE11# |
17171-15030 |
from US $10.10 |
||
|
9011606136
|
9011606136
90116-06136 BOLT |
90116-06136 |
US $2.08 |
||
|
9011608364
|
9011608364
90116-08364 New Genuine Part |
90116-08364 |
US $2.97 |
||
|
9011610181
|
9011610181
90116-10181 New Genuine Part |
90116-10181 |
US $1.75 |
||
|
9011906817
|
9011906817
90119-06817 BOLT WWASHER |
90119-06817 |
US $1.12 |
||
| replacement | |||||
|
9011906817
|
9011906817
90119-A0044 New Genuine Part |
90119-A0044 |
US $2.97 |
||
|
9011908177
|
9011908177
90119-08177
New Genuine Part
|
90119-08177 |
— | ||
| replacement | |||||
|
9011908177
|
9011908177
90119-08A87 BOLT W-WASHER |
90119-08A87 |
from US $0.96 |
||
|
9011908959
|
9011908959
90119-08959 New Genuine Part |
90119-08959 |
US $1.22 |
||
|
9011910329
|
9011910329
90119-10329 New Genuine Part |
90119-10329 |
US $1.60 |
||
|
9011910640
|
9011910640
90119-10640 New Genuine Part |
90119-10640 |
US $4 |
||
|
9017906143
|
9017906143
90179-06143 NUT |
90179-06143 |
from US $0.86 |
||
|
9017908153
|
9017908153
90179-08153 NUT |
90179-08153 |
from US $0.84 |
||
|
9017910070
|
9017910070
90179-10070 Nut, Exhaust Pipe Set Stud Bolt |
90179-10070 |
from US $1.54 |
||
| replacement | |||||
|
9017910070
|
9017910070
90080-17187 Nut, Exhaust Pipe Set Stud Bolt |
90080-17187 |
US $33.80 |
||
|
9017910141
|
9017910141
90179-10141
Nut(For Counter Gear Shaft)
|
90179-10141 |
— | ||
| replacement | |||||
|
9017910141
|
9017910141
90179-10132 Nut |
90179-10132 |
from US $0.98 |
||
|
9162160816
|
9162160816
91621-60816
New Genuine Part
|
91621-60816 |
— | ||
| replacement | |||||
|
9162160816
|
9162160816
91621-B0816 BOLT WWASHER |
91621-B0816 |
from US $0.88 |
||
