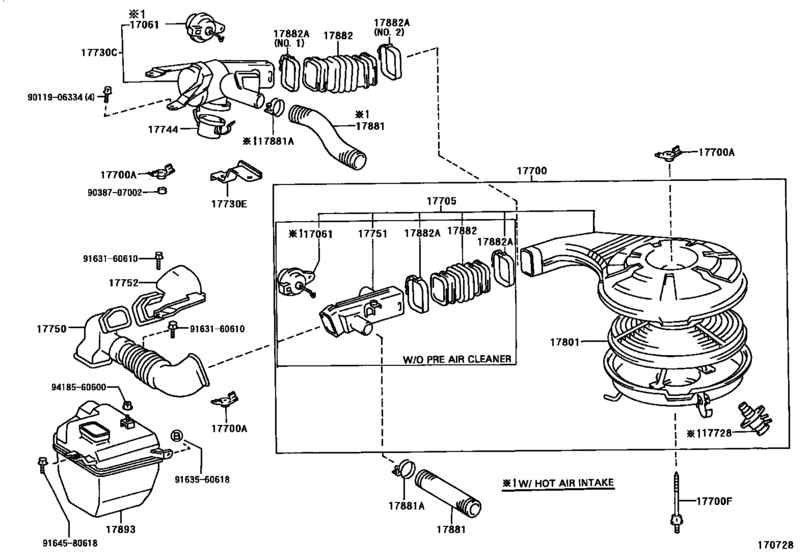

Air Cleaner ([04.1997 - ] (9704- )4AF) Diagram Toyota COROLLA
- Year
- 1997 - 2001
- Sales region
- General
- Frame
- AE111
- grade
- GL
- body
- SED
- ENGINE
- 4AF
- TRANSMISSION
- MTM
- DESTINATION
- GEN
- Model
- COROLLA(NAP/SED/CP/HB/LB/WG)
- From
- 04.1997
- To
- 09.2001
- Gear Shift Type
- 5F
- Vehicle Model
- Corolla SED/WG
- Driver's Position
- RHD
Difficulties in parts search?
Difficulties in parts search?
| Description | OEM Part # | Price | |||
|---|---|---|---|---|---|
|
17061
|
17061
17061-10010
Diaphragm Sub-Assy
[04.1997 - 10.1999] 2E..EE110..MTM..GEN;2E..EE110..LHD..3FC; 2E..EE110..GEN,TUR; 4AF..AE111 W(PRE AIR CLEANER & HOT AIR INTAKE) |
17061-10010 |
— | ||
|
17061
|
17061
17061-15040 Diaphragm Sub-Assy[04.1997 - 10.1999] 4AF..AE111 W(HOT AIR INTAKE) |
17061-15040 |
US $51.11 |
||
|
17700
|
17700
17700-16840 Cleaner Assy, Air[04.1997 - 10.1999] 4AF..AE111 |
17700-16840 |
US $174.72 |
||
|
17700
|
17700
17700-16850 Cleaner Assy, Air[04.1997 - 10.1999] 4AF..AE111 W(HOT AIR INTAKE) |
17700-16850 |
US $409.14 |
||
|
17700
|
17700
17700-16860 Cleaner Assy, Air[04.1997 - 10.1999] 4AF..AE111 W(PRE AIR CLEANER) |
17700-16860 |
US $174.72 |
||
|
17700
|
17700
17700-16870 Cleaner Assy, Air[04.1997 - 10.1999] 4AF..AE111 W(PRE AIR CLEANER & HOT AIR INTAKE) |
17700-16870 |
US $409.14 |
||
|
17700A
|
17700A
90175-06010
Nut, Wing(For Air Cleaner)
[04.1997 - 10.1999] 4AF..AE111 |
90175-06010 |
— | ||
|
17700F
|
17700F
90116-06018 Bolt, Stud(For Air Cleaner Setting)[04.1997 - 10.1999] 4AF..AE111 |
90116-06018 |
from US $3.32 |
||
|
17705
|
17705
17705-16450
Cap Sub-Assy, Air Cleaner
[04.1997 - 10.1999] 4AF..AE111 |
17705-16450 |
— | ||
|
17705
|
17705
17705-16460
Cap Sub-Assy, Air Cleaner
[04.1997 - 10.1999] 4AF..AE111 W(HOT AIR INTAKE) |
17705-16460 |
— | ||
|
17705
|
17705
17705-16470
Cap Sub-Assy, Air Cleaner
[04.1997 - 10.1999] 4AF..AE111 W(PRE AIR CLEANER) |
17705-16470 |
— | ||
|
17705
|
17705
17705-16480
Cap Sub-Assy, Air Cleaner
[04.1997 - 10.1999] 4AF..AE111 W(PRE AIR CLEANER & HOT AIR INTAKE) |
17705-16480 |
— | ||
|
17728
|
17728
17728-16010
Valve, Thermostatic
[04.1997 - 10.1999] 4AF..AE111 |
17728-16010 |
— | ||
|
17730C
|
17730C
17736-16090
Case, Precleaner
[04.1997 - 10.1999] 4AF..AE111 W(PRE AIR CLEANER) |
17736-16090 |
— | ||
|
17730C
|
17730C
17736-16100
Case, Precleaner
[04.1997 - 10.1999] 4AF..AE111 W(PRE AIR CLEANER & HOT AIR INTAKE) |
17736-16100 |
— | ||
|
17730E
|
17730E
17741-16030 Bracket, Precleaner, No.1PRECLEANER, NO.1 [04.1997 - 10.1999] 4AF..AE111 |
17741-16030 |
US $8.74 |
||
|
17744
|
17744
17744-16020
Cup, Precleaner
[04.1997 - 10.1999] 2E..EE110..LHD..3FC;2E..EE110..MTM..(GCC,GEN); 4AF..AE111; 2E..EE110..GCC,GEN |
17744-16020 |
— | ||
|
17750
|
17750
17750-16020 Cover Assy, Air Cleaner Inlet, SealAIR CLEANER INLET, SEAL [04.1997 - 10.1999] 4AF..AE111 |
17750-16020 |
US $44.55 |
||
|
17751
|
17751
17751-15010
Inlet, Air Cleaner, No.1
[04.1997 - 10.1999] 4AF..AE111 W(HOT AIR INTAKE) |
17751-15010 |
— | ||
|
17751
|
17751
17751-16010
Inlet, Air Cleaner, No.1
[04.1997 - 10.1999] 4AF..AE111 |
17751-16010 |
— | ||
|
17752
|
17752
17753-16030 Inlet, Air Cleaner, No.2AIR CLEANER, NO.2 [04.1997 - 10.1999] 4AF..AE111 |
17753-16030 |
US $38.44 |
||
|
17801
|
17801
17801-15060 Element Sub-Assy, Air Cleaner Filter[04.1997 - 10.1999] 4AF..AE111 |
17801-15060 |
from US $15.55 |
||
|
17881
|
17881
17881-15150
Hose, Air Cleaner, No.1
[04.1997 - 10.1999] 4AF..AE111 |
17881-15150 |
— | ||
|
17881A
|
17881A
96111-10460 Clamp Or Clip, Hose(For Radiator Inlet)[04.1997 - 10.1999] 4AF..AE111 |
96111-10460 |
from US $2.98 |
||
|
17882
|
17882
17881-15140
Hose, Air Cleaner, No.2
[04.1997 - 10.1999] 4AF..AE111 |
17881-15140 |
— | ||
|
17882
|
17882
17881-16180
Hose, Precleaner
[04.1997 - 10.1999] 4AF..AE111 W(PRE AIR CLEANER) |
17881-16180 |
— | ||
|
17882A
|
17882A
17786-15010
Clamp(For Air Cleaner Hose, No.2)
[04.1997 - 10.1999] 4AF..AE111 W(PRE AIR CLEANER),NO.1 |
17786-15010 |
— | ||
|
17882A
|
17882A
17786-16010
Clamp, Hose(For Precleaner Hose)
[04.1997 - 10.1999] 4AF..AE111 W(PRE AIR CLEANER),NO.2 |
17786-16010 |
— | ||
|
17893
|
17893
17893-16150 Resonator, Intake AirINTAKE AIR [04.1997 - 10.1999] 4AF..AE111 |
17893-16150 |
US $99.01 |
||
|
9011906334
|
9011906334
90119-06334 New Genuine Part |
90119-06334 |
US $1.92 |
||
|
9038707002
|
9038707002
90387-07002 New Genuine Part |
90387-07002 |
US $2.62 |
||
|
9163160610
|
9163160610
91631-60610
New Genuine Part
|
91631-60610 |
— | ||
| replacement | |||||
|
9163160610
|
9163160610
91631-B0610 BOLTWWASHER |
91631-B0610 |
from US $0.90 |
||
|
9163560618
|
9163560618
91635-60618 New Genuine Part |
91635-60618 |
US $2.62 |
||
| replacement | |||||
|
9163560618
|
9163560618
91631-B0614 BOLT WWASHER |
91631-B0614 |
from US $0.88 |
||
|
9164580618
|
9164580618
91645-80618
Direct
|
91645-80618 |
— | ||
| replacement | |||||
|
9164580618
|
9164580618
91641-C0614 Bolt |
91641-C0614 |
from US $0.72 |
||
|
9418560600
|
9418560600
94185-60600 Nut, Wire Adjusting, No.1 |
94185-60600 |
from US $0.76 |
||
