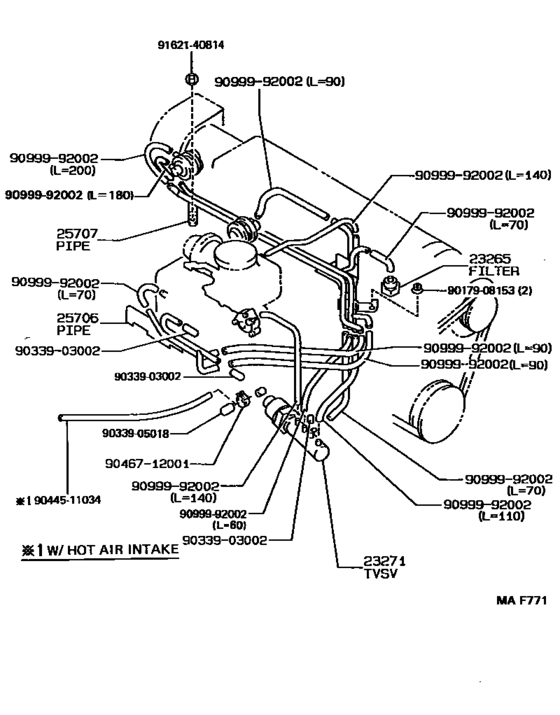

Vacuum Piping ([04.1997 - ] (9704- )4AF) Diagram Toyota COROLLA
- Year
- 1997 - 2001
- Sales region
- General
- Frame
- AE111
- grade
- GL
- body
- SED
- ENGINE
- 4AF
- TRANSMISSION
- MTM
- DESTINATION
- GEN
- Model
- COROLLA(NAP/SED/CP/HB/LB/WG)
- From
- 04.1997
- To
- 09.2001
- Gear Shift Type
- 5F
- Vehicle Model
- Corolla SED/WG
- Driver's Position
- RHD
Difficulties in parts search?
Difficulties in parts search?
| Description | OEM Part # | Price | |||
|---|---|---|---|---|---|
|
23265
|
23265
90917-11022 Filter, Gas, No.1[04.1997 - 07.2002] 4AF,7AFE..AE111,112..GL,GLI,SEG,XL;7AFE..AE112..XLI..(BZ,GCC,GEN,IDN) |
90917-11022 |
from US $15.50 |
||
|
23271
|
23271
90925-02076
Valve, Thermostatic Vacuum Switching, No.1
[04.1997 - 10.1999] 4AF..AE111 |
90925-02076 |
— | ||
|
25706
|
25706
25706-16210 Pipe Sub-Assy, Vacuum Transmitting, No.1VACUUM TRANSMITTING, NO.1 [04.1997 - 10.1999] 4AF..AE111 |
25706-16210 |
US $63.19 |
||
|
25707
|
25707
25707-16061 Pipe Sub-Assy, Vacuum Transmitting, No.2VACUUM TRANSMITTING, NO.2 [04.1997 - 10.1999] 4AF..AE111 |
25707-16061 |
US $59.84 |
||
|
9017908153
|
9017908153
90179-08153 NUT |
90179-08153 |
from US $0.92 |
||
|
9033903002
|
9033903002
90339-03002 PLUG |
90339-03002 |
US $2.88 |
||
|
9033905018
|
9033905018
90339-05018 CAP |
90339-05018 |
US $2.56 |
||
|
9044511034
|
9044511034
90445-11034 New Genuine Part |
90445-11034 |
US $6.99 |
||
|
9046712001
|
9046712001
90467-12001 Clip(For Carburetor Fuel Hose) |
90467-12001 |
US $2.18 |
||
| replacement | |||||
|
9046712001
|
9046712001
96132-51100 Clip (For Hose) |
96132-51100 |
from US $1.74 |
||
|
9099992002
|
9099992002
90999-92002
Air Hose (300 mm)
|
90999-92002 |
— | ||
|
9162140814
|
9162140814
91621-40814 Bolt |
91621-40814 |
US $1.44 |
||
