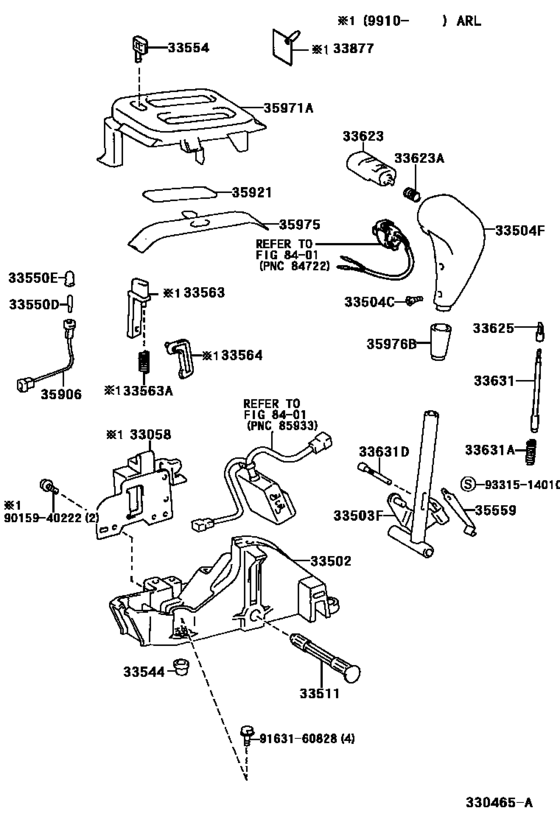

Shift Lever & Retainer ([04.1997 - ] (9704- )AE111..4FC) Diagram Toyota COROLLA
- Year
- 1997 - 2001
- Sales region
- General
- Frame
- AE111
- grade
- GLI
- body
- LB
- ENGINE
- 4AFE
- TRANSMISSION
- ATM
- DESTINATION
- GEN
- Model
- COROLLA LB
- From
- 04.1997
- To
- 09.2001
- Gear Shift Type
- 4FC
- Vehicle Model
- Corolla LB
- Driver's Position
- RHD
Difficulties in parts search?
Difficulties in parts search?
| Description | OEM Part # | Price | |||
|---|---|---|---|---|---|
|
33502
|
33502
33521-12250 Plate Sub-Assy, Shift Lever[04.1997 - 10.1999] AE11#..RHD..4FC |
33521-12250 |
US $39.17 |
||
|
33503F
|
33503F
33055-12050 Lever Sub-Assy, Shift(For Floor Shift)[04.1997 - 10.1999] AE11#..RHD..4FC |
33055-12050 |
US $85.90 |
||
|
33504C
|
33504C
90159-40238 Screw (For Shift Lever Knob Setting)[04.1997 - 10.1999] AE11#..4FC |
90159-40238 |
US $0.84 |
||
|
33504F
|
33504F
33542-12210-B4 Knob Sub-Assy, Shift Lever[04.1997 - 10.1999] AE11#..RHD..4FC DK.CHARCOAL,TRIM1# |
33542-12210-B4 |
US $72.80 |
||
| replacement | |||||
|
33504F
|
33504F
33542-12181-C0
Knob Sub-Assy, Shift Lever
[04.1997 - 10.1999] AE11#..RHD..4FC DK.CHARCOAL,TRIM1# |
33542-12181-C0 |
— | ||
|
33511
|
33511
33511-12110 Shaft, Control (For Floor Shift)[04.1997 - 10.1999] AE11#..RHD..4FC |
33511-12110 |
US $10.48 |
||
|
33544
|
33544
33544-33010 Collar (For Floor Shift Setting)[04.1997 - 10.1999] AE11#..4FC |
33544-33010 |
from US $1.60 |
||
|
33550D
|
33550D
90981-11036 Bulb, Position Indicator Lamp[04.1997 - 10.1999] AE11#..RHD..4FC 12V 1.7W |
90981-11036 |
from US $1.88 |
||
|
33550E
|
33550E
90339-09001 Cap, Position Indicator Lamp[04.1997 - 10.1999] AE11#..RHD..4FC |
90339-09001 |
US $1.92 |
||
|
33554
|
33554
33554-12090-B2 Cap, Shift LeverSHIFT LEVER [04.1997 - 10.1999] AE11#..4FC..(ARL,GEN) DK.CHARCOAL,TRIM1#; AE11#..RHD..4FC DK.CHARCOAL,TRIM1# |
33554-12090-B2 |
US $6.41 |
||
| replacement | |||||
|
33554
|
33554
33554-12090-C0 Cap, Shift LeverSHIFT LEVER [04.1997 - 10.1999] AE11#..4FC..(ARL,GEN) DK.CHARCOAL,TRIM1#; AE11#..RHD..4FC DK.CHARCOAL,TRIM1# |
33554-12090-C0 |
US $6.41 |
||
|
33623
|
33623
33623-12130-B3 Button, Shift Lever Knob[04.1997 - 10.1999] AE11#..RHD..4FC DK.CHARCOAL,TRIM1# |
33623-12130-B3 |
US $17.04 |
||
| replacement | |||||
|
33623
|
33623
33623-12130-C0 Button, Shift Lever Knob[04.1997 - 10.1999] AE11#..RHD..4FC DK.CHARCOAL,TRIM1# |
33623-12130-C0 |
US $17.04 |
||
|
33623A
|
33623A
90501-07110 Spring, Compression (For Shift Lever Knob Button)[04.1997 - 10.1999] AE11#..RHD..4FC |
90501-07110 |
US $1.60 |
||
|
33625
|
33625
33625-12030 Sleeve, Shift Lever Knob[04.1997 - 10.1999] AE11#..4FC |
33625-12030 |
US $5.39 |
||
|
33631
|
33631
33631-33020 Rod, Detent[04.1997 - 10.1999] AE11#..4FC |
33631-33020 |
US $5.39 |
||
|
33631A
|
33631A
90501-07117 Spring, Compression (For Detent Rod)[04.1997 - 10.1999] AE11#..RHD..4FC |
90501-07117 |
US $1.02 |
||
|
33631D
|
33631D
90245-04009 Pin, Grooved (For Detent Rod)[04.1997 - 10.1999] AE11#..RHD..4FC |
90245-04009 |
US $1.89 |
||
|
35559
|
35559
35559-12040 Spring, Manual Detent[04.1997 - 10.1999] AE11#..4FC |
35559-12040 |
US $5.68 |
||
|
35906
|
35906
35906-12140 Wire Sub-Assy, Indicator Lamp[04.1997 - 10.1999] AE11#..RHD..4FC |
35906-12140 |
US $15.74 |
||
|
35921
|
35921
35921-12390
Plate, Control Position Indicator
[04.1997 - 10.1999] AE11#..4FC..(ARL,GEN); AE11#..RHD..4FC |
35921-12390 |
— | ||
|
35971A
|
35971A
35971-12340-B3 Housing, Position Indicator, Upper[04.1997 - 10.1999] AE11#..RHD..4FC DK.CHARCOAL,TRIM1# |
35971-12340-B3 |
US $31.30 |
||
| replacement | |||||
|
35971A
|
35971A
35971-12340-B0
Housing, Position Indicator, Upper
[04.1997 - 10.1999] AE11#..RHD..4FC DK.CHARCOAL,TRIM1# |
35971-12340-B0 |
— | ||
|
35975
|
35975
35975-12220-B3
Cover, Slide (For Position Indicator)
[04.1997 - 10.1999] AE11#..4FC DK.CHARCOAL,TRIM1# |
35975-12220-B3 |
— | ||
| replacement | |||||
|
35975
|
35975
35975-12220-B0
Cover, Slide (For Position Indicator)
[04.1997 - 10.1999] AE11#..4FC DK.CHARCOAL,TRIM1# |
35975-12220-B0 |
— | ||
|
35976B
|
35976B
35976-12080-B4 Cover, Shift Lever Knob (For Floor Shift)[04.1997 - 10.1999] AE11#..4FC DK.CHARCOAL,TRIM1# |
35976-12080-B4 |
US $15.58 |
||
| replacement | |||||
|
35976B
|
35976B
35976-12080-C0 Cover, Slide, No.2 (For Position Indicator)[04.1997 - 10.1999] AE11#..4FC DK.CHARCOAL,TRIM1# |
35976-12080-C0 |
US $14.57 |
||
|
9015940222
|
9015940222
90159-40222 New Genuine Part |
90159-40222 |
US $1.60 |
||
|
9163160828
|
9163160828
91631-60828 BOLT WWASHER |
91631-60828 |
US $1.16 |
||
|
9331514010
|
9331514010
93315-14010 SCREW |
93315-14010 |
from US $0.80 |
||
