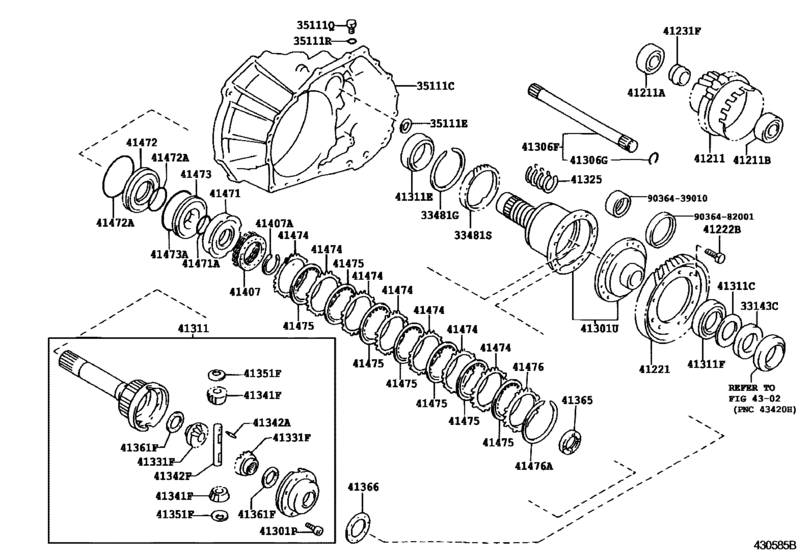

Front Axle Housing & Differential ([05.1995 - ] A241H (9505- )AE114..4FC) Diagram Toyota COROLLA
- Year
- 1995 - 2000
- Sales region
- Japan
- Frame
- AE114
- grade
- SESAL
- body
- SED
- ENGINE
- 4AFE
- TRANSMISSION
- ATM
- Model
- COROLLA
- From
- 05.1995
- To
- 08.2000
- Gear Shift Type
- 4FC
- Vehicle Model
- Corolla
Difficulties in parts search?
Difficulties in parts search?
| Description | OEM Part # | Price | |||
|---|---|---|---|---|---|
|
33143C
|
33143C
33143-12030
Baffle, Front Differential Oil
[05.1995 - 04.1997] AE114..4FC |
33143-12030 |
— | ||
|
33481G
|
33481G
90520-99005 Ring, Shaft Snap (For Atm Speedometer Drive Gear)[05.1995 - 04.1997] AE114..4FC |
90520-99005 |
US $2.48 |
||
|
33481S
|
33481S
33481-12070 Gear, Speedometer Drive (Atm)[05.1995 - 04.1997] AE114..4FC 歯数＝２５，マーク無し |
33481-12070 |
US $52.27 |
||
|
35111C
|
35111C
35105-12041 Housing, Transaxle[05.1995 - 04.1997] AE114..4FC |
35105-12041 |
US $831.38 |
||
|
35111E
|
35111E
90210-13002 Washer, Seal (For Front Transaxle Housing)[05.1995 - 04.1997] AE11#,CE110..4FC |
90210-13002 |
US $4.08 |
||
|
35111Q
|
35111Q
90341-08001 Plug, Transaxle Case, No.1[05.1995 - 04.1997] AE11#,CE110..4FC |
90341-08001 |
from US $1.92 |
||
|
35111R
|
35111R
90301-06196 O Ring, Transaxle Case, No.1[05.1995 - 04.1997] AE11#,CE110..4FC |
90301-06196 |
from US $2.26 |
||
|
41211
|
41211
41206-17030 Pinion, Differential Drive[05.1995 - 04.1997] AE114..4FC |
41206-17030 |
US $334.88 |
||
|
41211A
|
41211A
90366-30054 Bearing (For Rear Drive Pinion Rear)[05.1995 - 04.1997] AE114,CE110..4FC |
90366-30054 |
US $43.24 |
||
|
41211B
|
41211B
90366-30053 Bearing (For Rear Drive Pinion Front)[05.1995 - 04.1997] AE114,CE110..4FC |
90366-30053 |
US $43.24 |
||
| replacement | |||||
|
41211B
|
41211B
90366-30085 Bearing, Tapered Roller (For Front Drive Pinion Front)[05.1995 - 04.1997] AE114,CE110..4FC |
90366-30085 |
US $40.91 |
||
|
41221
|
41221
41221-12280 Gear, Front Differential Ring[05.1995 - 04.1997] AE114..4FC |
41221-12280 |
US $182 |
||
|
41222B
|
41222B
90105-12150 Bolt (For Rear Differential Ring Gear Set)[05.1995 - 04.1997] AE114..4FC |
90105-12150 |
US $4.16 |
||
|
41231F
|
41231F
41231-17010 Spacer, Rear Differential Drive Pinion Bearing[05.1995 - 04.1997] AE114,CE110..4FC |
41231-17010 |
US $10.05 |
||
|
41301P
|
41301P
90149-80017 Screw(For Front Differential Case)[05.1995 - 04.1997] AE114..4FC |
90149-80017 |
US $1.60 |
||
|
41301U
|
41301U
41301-12140 Case Sub-Assy, Front Differential Ring Gear Mounting[05.1995 - 02.1996] AE114..4FC |
41301-12140 |
US $463.01 |
||
|
41301U
|
41301U
41301-12200 Case Sub-Assy, Front Differential Ring Gear Mounting[02.1996 - 04.1997] AE114..4FC |
41301-12200 |
US $352.35 |
||
|
41306F
|
41306F
41306-20010 Shaft Sub-Assy, Differential Side Gear Inter[05.1995 - 04.1997] AE114..4FC |
41306-20010 |
US $136.86 |
||
|
41306G
|
41306G
90521-26004 Ring, Hole Snap (For Front Differential Side Gear Shaft)[05.1995 - 04.1997] AE114,CE114 |
90521-26004 |
from US $1.60 |
||
|
41311
|
41311
41301-12120 Case, Front Differential[05.1995 - 04.1997] AE114..4FC |
41301-12120 |
US $464.46 |
||
|
41311C
|
41311C
90564-77001 Shim (For Front Differential Case Rear)[05.1995 - 04.1997] AE114..4FC 厚さ＝２．００，マーク ５１ |
90564-77001 |
US $4.22 |
||
|
41311C
|
41311C
90564-77004 Shim (For Front Differential Case Rear)[05.1995 - 04.1997] AE114..4FC 厚さ＝２．１５，マーク ５４ |
90564-77004 |
US $4.22 |
||
|
41311C
|
41311C
90564-77007 Shim (For Front Differential Case Rear)[05.1995 - 04.1997] AE114..4FC 厚さ＝２．３０，マーク ５７ |
90564-77007 |
US $5.39 |
||
|
41311C
|
41311C
90564-77010 Shim (For Front Differential Case Rear)[05.1995 - 04.1997] AE114..4FC 厚さ＝２．４５，マーク ６０ |
90564-77010 |
US $5.39 |
||
|
41311C
|
41311C
90564-77011 Shim (For Front Differential Case Rear)[05.1995 - 04.1997] AE114..4FC 厚さ＝２．５０，マーク ６１ |
90564-77011 |
US $5.39 |
||
|
41311C
|
41311C
90564-77012 Shim (For Front Differential Case Rear)[05.1995 - 04.1997] AE114..4FC 厚さ＝２．５５，マーク ６２ |
90564-77012 |
US $5.39 |
||
|
41311C
|
41311C
90564-77013 Shim (For Front Differential Case Rear)[05.1995 - 04.1997] AE114..4FC 厚さ＝２．６０，マーク ６３ |
90564-77013 |
US $5.39 |
||
|
41311C
|
41311C
90564-77014 Shim (For Front Differential Case Rear)[05.1995 - 04.1997] AE114..4FC 厚さ＝２．６５，マーク ６４ |
90564-77014 |
US $5.39 |
||
|
41311C
|
41311C
90564-77015 Shim (For Front Differential Case Rear)[05.1995 - 04.1997] AE114..4FC 厚さ＝２．７０，マーク ６５ |
90564-77015 |
US $5.39 |
||
|
41311C
|
41311C
90564-77016 Shim (For Front Differential Case Rear)[05.1995 - 04.1997] AE114..4FC 厚さ＝２．７５，マーク ６６ |
90564-77016 |
US $5.39 |
||
|
41311C
|
41311C
90564-77017 Shim (For Front Differential Case Rear)[05.1995 - 04.1997] AE114..4FC 厚さ＝２．８０，マーク ６７ |
90564-77017 |
US $5.39 |
||
|
41311C
|
41311C
90564-77018 Shim (For Front Differential Case Rear)[05.1995 - 04.1997] AE114..4FC 厚さ＝２．８５，マーク ６８ |
90564-77018 |
US $5.39 |
||
|
41311C
|
41311C
90564-77019 Shim (For Front Differential Case Rear)[05.1995 - 04.1997] AE114..4FC 厚さ＝２．０３，マーク Ｂ |
90564-77019 |
US $4.22 |
||
|
41311C
|
41311C
90564-77020 Shim (For Front Differential Case Rear)[05.1995 - 04.1997] AE114..4FC 厚さ＝２．０６，マーク Ｃ |
90564-77020 |
US $4.22 |
||
|
41311C
|
41311C
90564-77021 Shim (For Front Differential Case Rear)[05.1995 - 04.1997] AE114..4FC 厚さ＝２．０９，マーク Ｄ |
90564-77021 |
US $4.22 |
||
|
41311C
|
41311C
90564-77022 Shim (For Front Differential Case Rear)[05.1995 - 04.1997] AE114..4FC 厚さ＝２．１２，マーク Ｅ |
90564-77022 |
US $4.22 |
||
|
41311C
|
41311C
90564-77023 Shim (For Front Differential Case Rear)[05.1995 - 04.1997] AE114..4FC 厚さ＝２．１６，マーク Ｇ |
90564-77023 |
US $4.22 |
||
|
41311C
|
41311C
90564-77024 Shim (For Front Differential Case Rear)[05.1995 - 04.1997] AE114..4FC 厚さ＝２．２１，マーク Ｈ |
90564-77024 |
US $4.22 |
||
|
41311C
|
41311C
90564-77025 Shim (For Front Differential Case Rear)[05.1995 - 04.1997] AE114..4FC 厚さ＝２．２４，マーク Ｊ |
90564-77025 |
US $4.22 |
||
|
41311C
|
41311C
90564-77026 Shim (For Front Differential Case Rear)[05.1995 - 04.1997] AE114..4FC 厚さ＝２．２７，マーク Ｋ |
90564-77026 |
US $4.22 |
||
|
41311C
|
41311C
90564-77027 Shim (For Front Differential Case Rear)[05.1995 - 04.1997] AE114..4FC 厚さ＝２．３３，マーク Ｍ |
90564-77027 |
US $4.22 |
||
|
41311C
|
41311C
90564-77028 Shim (For Front Differential Case Rear)[05.1995 - 04.1997] AE114..4FC 厚さ＝２．３６，マーク Ｎ |
90564-77028 |
US $4.22 |
||
|
41311C
|
41311C
90564-77029 Shim (For Front Differential Case Rear)[05.1995 - 04.1997] AE114..4FC 厚さ＝２．３９，マーク Ｐ |
90564-77029 |
US $4.22 |
||
|
41311C
|
41311C
90564-77030 Shim (For Front Differential Case Rear)[05.1995 - 04.1997] AE114..4FC 厚さ＝２．４２，マーク Ｑ |
90564-77030 |
US $4.22 |
||
|
41311E
|
41311E
90366-67001 Bearing, Tapered Roller (For Front Differential Case Front)[05.1995 - 04.1997] AE114..4FC |
90366-67001 |
US $44.26 |
||
|
41311F
|
41311F
90366-55028 Bearing, Tapered Roller (For Front Differential Case Rear)[05.1995 - 04.1997] AE114..4FC |
90366-55028 |
US $40.77 |
||
|
41325
|
41325
41325-12010
Ring, Front Differential Ring Gear Mounting Case Oil Seal
[05.1995 - 04.1997] AE114..4FC |
41325-12010 |
— | ||
|
41331F
|
41331F
41331-12030 Gear, Center Differential Side[05.1995 - 04.1997] AE114,CE114 |
41331-12030 |
US $69.91 |
||
|
41341F
|
41341F
41341-20011 Pinion, Rear Differential[05.1995 - 04.1997] AE114..4FC |
41341-20011 |
US $109.58 |
||
|
41342A
|
41342A
90249-06093 Pin, Straight (For Front Differential Pinion Shaft)[05.1995 - 04.1997] AE114..4FC |
90249-06093 |
US $2.33 |
||
|
41342F
|
41342F
41342-12060 Shaft, Front Differential Pinion, No.1[05.1995 - 04.1997] AE114..4FC |
41342-12060 |
US $28.39 |
||
|
41351F
|
41351F
41351-12010 Washer, Rear Differential Pinion Thrust[05.1995 - 04.1997] AE114..4FC |
41351-12010 |
US $2.80 |
||
|
41361F
|
41361F
41361-12330 Washer, Center Differential Side Gear Thrust, No.2[05.1995 - 04.1997] AE114,CE114 厚さ＝０．９５，マーク Ａ |
41361-12330 |
US $2.91 |
||
|
41361F
|
41361F
41361-12340 Washer, Center Differential Side Gear Thrust, No.1[05.1995 - 04.1997] AE114..4FC 厚さ＝１．００，マーク Ｂ |
41361-12340 |
from US $2.91 |
||
|
41361F
|
41361F
41361-12350 Washer, Center Differential Side Gear Thrust, No.1[05.1995 - 04.1997] AE114..4FC 厚さ＝１．０５，マーク Ｃ |
41361-12350 |
US $2.91 |
||
|
41361F
|
41361F
41361-12360 Washer, Center Differential Side Gear Thrust, No.1[05.1995 - 04.1997] AE114..4FC 厚さ＝１．１０，マーク Ｄ |
41361-12360 |
US $2.91 |
||
|
41361F
|
41361F
41361-12370
Washer, Center Differential Side Gear Thrust, No.1
[05.1995 - 04.1997] AE114..4FC 厚さ＝１．１５，マーク Ｅ |
41361-12370 |
— | ||
|
41361F
|
41361F
41361-12380 Washer, Center Differential Side Gear Thrust, No.1[05.1995 - 04.1997] AE114..4FC 厚さ＝１．２０，マーク Ｆ |
41361-12380 |
US $2.91 |
||
|
41361F
|
41361F
41361-12390 Washer, Center Differential Side Gear Thrust, No.1[05.1995 - 04.1997] AE114..4FC 厚さ＝１．２５，マーク Ｇ |
41361-12390 |
US $2.91 |
||
|
41361F
|
41361F
41361-12400 Washer, Center Differential Side Gear Thrust, No.2[05.1995 - 04.1997] AE114,CE114 厚さ＝１．３０，マーク Ｈ |
41361-12400 |
US $2.91 |
||
|
41361F
|
41361F
41361-12410 Washer, Center Differential Side Gear Thrust, No.2[05.1995 - 04.1997] AE114,CE114 厚さ＝１．３５，マーク Ｊ |
41361-12410 |
US $2.91 |
||
|
41361F
|
41361F
41361-12420 Washer, Center Differential Side Gear Thrust, No.2[05.1995 - 04.1997] AE114,CE114 厚さ＝１．４０，マーク Ｋ |
41361-12420 |
US $2.91 |
||
|
41365
|
41365
41365-12010 Washer, Front Differential Side Trust, No.1[05.1995 - 04.1997] AE114..4FC |
41365-12010 |
US $20.68 |
||
|
41366
|
41366
41366-12010 Washer, Front Differential Side Trust, No.2[05.1995 - 04.1997] AE114..4FC |
41366-12010 |
US $4.66 |
||
|
41407
|
41407
41407-12010 Spring Sub-Assy, Differential Lock Piston Return[05.1995 - 04.1997] AE114..4FC |
41407-12010 |
US $24.61 |
||
|
41407A
|
41407A
90520-43008 Ring, Shaft Snap (For Diff Lock Piston Return Spring)[05.1995 - 04.1997] AE114..4FC |
90520-43008 |
US $3.20 |
||
|
41471
|
41471
41471-12010 Piston, Differential Lock Clutch, No.1[05.1995 - 04.1997] AE114..4FC |
41471-12010 |
US $27.23 |
||
|
41471A
|
41471A
90301-55004 Ring, O (For Differential Lock Clutch Piston No.1)[05.1995 - 04.1997] AE114..4FC |
90301-55004 |
US $3.79 |
||
|
41472
|
41472
41472-12010 Piston, Differential Lock Clutch, No.2[05.1995 - 04.1997] AE114..4FC |
41472-12010 |
US $23.30 |
||
|
41472A
|
41472A
90301-46002 Ring, O (For Forward Clutch Piston)[05.1995 - 04.1997] AE114..4FC 内側 |
90301-46002 |
US $9.60 |
||
|
41472A
|
41472A
90301-98001 Ring, O (For Underdrive Clutch Piston)[05.1995 - 04.1997] AE114..4FC 外側 |
90301-98001 |
US $8.01 |
||
| replacement | |||||
|
41472A
|
41472A
90301-98003 Ring, O (For Underdrive Clutch Piston)[05.1995 - 04.1997] AE114..4FC 外側 |
90301-98003 |
US $2.62 |
||
|
41473
|
41473
41473-12010 Sleeve, Differential Lock Clutch Piston Reaction[05.1995 - 04.1997] AE114..4FC |
41473-12010 |
US $23.30 |
||
|
41473A
|
41473A
90301-92001 Ring, O (For Piston Reaction Sleeve)[05.1995 - 04.1997] AE114..4FC |
90301-92001 |
US $3.79 |
||
|
41474
|
41474
41474-12010 Plate, Differential Lock Clutch[05.1995 - 04.1997] AE114..4FC |
41474-12010 |
US $23.30 |
||
|
41475
|
41475
41475-12010 Disc, Differential Lock Clutch[05.1995 - 04.1997] AE114..4FC |
41475-12010 |
US $21.69 |
||
|
41476
|
41476
41476-12010 Flange, Differential Lock Clutch[05.1995 - 04.1997] AE114..4FC |
41476-12010 |
US $28.39 |
||
|
41476A
|
41476A
90521-99057 Ring, Hole Snap (For Differential Lock Clutch Flange)[05.1995 - 04.1997] AE114..4FC |
90521-99057 |
US $4.22 |
||
|
9036439010
|
9036439010
90364-39010 New Genuine Part |
90364-39010 |
US $19.22 |
||
|
9036482001
|
9036482001
90364-82001 New Genuine Part |
90364-82001 |
US $30.14 |
||
