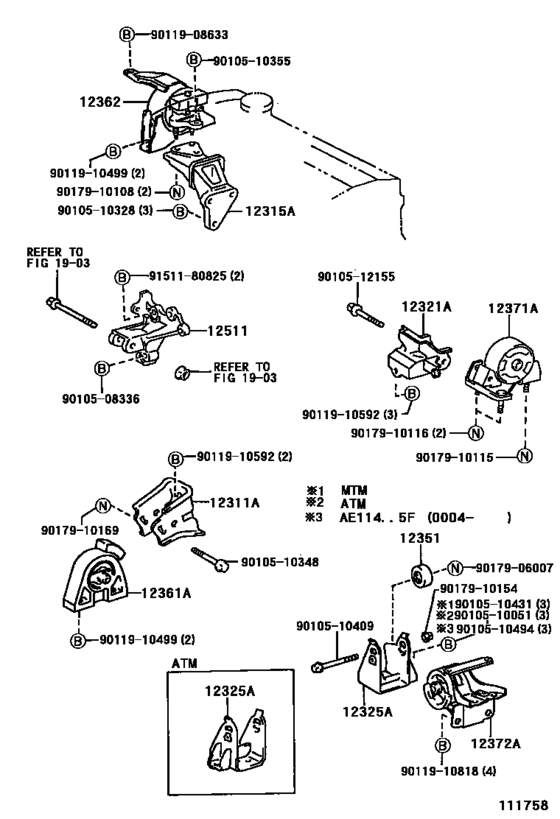

Mounting ([04.1997 - ] (9704- )4AFE) Diagram Toyota COROLLA
- Year
- 1995 - 2000
- Sales region
- Japan
- Frame
- AE114
- grade
- SESAL
- body
- SED
- ENGINE
- 4AFE
- TRANSMISSION
- ATM
- Model
- COROLLA
- From
- 05.1995
- To
- 08.2000
- Gear Shift Type
- 4FC
- Vehicle Model
- Corolla
Difficulties in parts search?
Difficulties in parts search?
| Description | OEM Part # | Price | |||
|---|---|---|---|---|---|
|
12311A
|
12311A
12311-16110
Bracket, Engine Mounting, Front(For Transverse Engine)
[05.1995 - 04.1997] 4AFE..AE114 |
12311-16110 |
— | ||
|
12315A
|
12315A
12315-15070
Bracket, Engine Mounting, Rh(For Transverse Engine)
[05.1995 - 04.1997] 4AFE..AE114 |
12315-15070 |
— | ||
|
12321A
|
12321A
12321-16250
Bracket, Engine Mounting, Rear(For Transverse Engine)
[05.1995 - 04.1997] 4AFE..AE114..4FC |
12321-16250 |
— | ||
|
12325A
|
12325A
12325-16160
Bracket, Engine Mounting, Lh(For Transverse Engine)
[05.1995 - 04.1997] 4AFE..AE114..4FC |
12325-16160 |
— | ||
|
12325A
|
12325A
12325-16250 Bracket, Engine Mounting, Lh(For Transverse Engine)[04.1997 - 08.2000] 4AFE..AE114..4FC |
12325-16250 |
US $41.06 |
||
|
12361A
|
12361A
12361-16270
Insulator, Engine Mounting, Front(For Transverse Engine)
[05.1995 - 04.1997] 4AFE..AE114 |
12361-16270 |
— | ||
|
12362
|
12362
12305-16110
Insulator, Engine Mounting, Rh(For Transverse Engine)
[05.1995 - 04.1997] 4AFE..AE114 |
12305-16110 |
— | ||
|
12371A
|
12371A
12371-16250
Insulator, Engine Mounting, Rear
[05.1995 - 04.1997] 4AFE..AE114..4FC |
12371-16250 |
— | ||
|
12372A
|
12372A
12372-15230
Insulator, Engine Mounting, Lh(For Transverse Engine)
[04.1997 - 08.2000] 4AFE..AE114..4FC |
12372-15230 |
— | ||
|
12372A
|
12372A
12372-16260
Insulator, Engine Mounting, Lh(For Transverse Engine)
[05.1995 - 04.1997] 4AFE..AE114..4FC |
12372-16260 |
— | ||
|
12511
|
12511
12511-15050 Bracket, Alternator, No.1[05.1995 - 12.1995] 4AFE,5AFE..AE11# |
12511-15050 |
US $136.86 |
||
|
12511
|
12511
12511-15060 Bracket, Alternator, No.1[12.1995 - 04.1997] 4AFE,5AFE..AE11# |
12511-15060 |
US $112.11 |
||
|
9010508336
|
9010508336
90105-08336 Bolt(For Alternator) |
90105-08336 |
US $2.33 |
||
| replacement | |||||
|
9010508336
|
9010508336
91511-80830 Bolt(For Alternator) |
91511-80830 |
US $3.20 |
||
|
9010510051
|
9010510051
90105-10051
Bolt (For Drive Shaft Bearing Bracket Setting No.1)
|
90105-10051 |
— | ||
| replacement | |||||
|
9010510051
|
9010510051
91512-81022 Bolt (For Drive Shaft Bearing Bracket Setting No.1) |
91512-81022 |
US $2.56 |
||
|
9010510328
|
9010510328
90105-10328 Bolt (For Rear Differential Carrier Cover Setting) |
90105-10328 |
US $2.04 |
||
|
9010510348
|
9010510348
90105-10348 BOLT WASHER BASED |
90105-10348 |
US $4.96 |
||
|
9010510355
|
9010510355
90105-10355 BOLT WASHER BASED |
90105-10355 |
US $2.62 |
||
|
9010510409
|
9010510409
90105-10409 New Genuine Part |
90105-10409 |
US $4.32 |
||
|
9010510431
|
9010510431
90105-10431 New Genuine Part |
90105-10431 |
US $2.72 |
||
|
9010510494
|
9010510494
90105-10494 BOLT FLANGE |
90105-10494 |
US $1.60 |
||
|
9010512155
|
9010512155
90105-12155 BOLT WASHER BASED |
90105-12155 |
US $5.28 |
||
|
9011908633
|
9011908633
90119-08633 New Genuine Part |
90119-08633 |
from US $1.60 |
||
|
9011910499
|
9011910499
90119-10499 BOLT WWASHER |
90119-10499 |
US $3.20 |
||
|
9011910592
|
9011910592
90119-10592 New Genuine Part |
90119-10592 |
US $3.20 |
||
|
9011910818
|
9011910818
90119-10818 BOLT WWASHER |
90119-10818 |
US $1.60 |
||
|
9017906007
|
9017906007
90179-06007 Nut |
90179-06007 |
from US $0.86 |
||
|
9017910108
|
9017910108
90179-10108 NUT |
90179-10108 |
US $2.40 |
||
|
9017910115
|
9017910115
90179-10115 New Genuine Part |
90179-10115 |
US $3.49 |
||
|
9017910116
|
9017910116
90179-10116 New Genuine Part |
90179-10116 |
US $3.20 |
||
|
9017910154
|
9017910154
90179-10154 NUT |
90179-10154 |
from US $1.01 |
||
|
9017910169
|
9017910169
90179-10169 NUT |
90179-10169 |
US $2.62 |
||
|
9151180825
|
9151180825
91511-80825 BOLTFLANGE |
91511-80825 |
US $1.60 |
||
