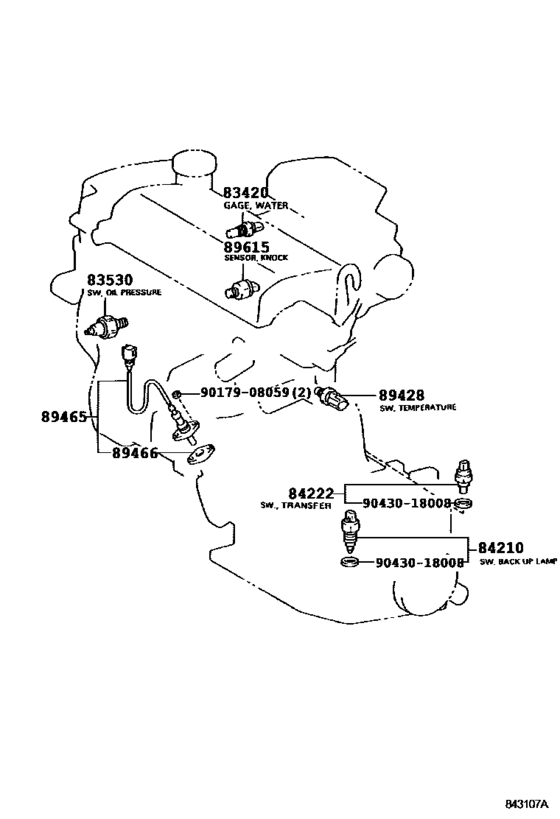

Switch & Relay & Computer ([10.1999 - ] ENGINE & TRANSMISSION (9910- )AE115) Diagram Toyota COROLLA
- Year
- 1999 - 2001
- Sales region
- Europe
- Frame
- AE115
- grade
- SOL
- body
- WG
- ENGINE
- 7AFE
- TRANSMISSION
- MTM
- Model
- COROLLA(NAP/SED/CP/HB/LB/WG)
- From
- 10.1999
- To
- 07.2001
- Gear Shift Type
- 5F
- Vehicle Model
- Corolla SED/WG
- Driver's Position
- LHD
Difficulties in parts search?
Difficulties in parts search?
| Description | OEM Part # | Price | |||
|---|---|---|---|---|---|
|
83420
|
83420
83420-20040 Gage Assy, Water Temperature Sender[10.1999 - 07.2001] AE115 |
83420-20040 |
from US $35.65 |
||
|
83530
|
83530
83530-28020 Switch Assy, Oil Pressure (For Engine)[03.1998 - 09.2001] AE115..SOL;EE110,ZZE11# DENSO |
83530-28020 |
US $29.94 |
||
| replacements | |||||
|
83530
|
83530
83530-60020 Switch Assy, Oil Pressure (For Engine)ＹＡＺＡＫＩ→ＤＥＮＳＯ [03.1998 - 09.2001] AE115..SOL;EE110,ZZE11# DENSO |
83530-60020 |
from US $25.55 |
||
|
83530
|
83530
83530-0E010 Switch Assy, Oil Pressure (For Engine)[03.1998 - 09.2001] AE115..SOL;EE110,ZZE11# DENSO |
83530-0E010 |
from US $51.25 |
||
|
83530
|
83530
83530-60020 Switch Assy, Oil Pressure (For Engine)ＹＡＺＡＫＩ→ＤＥＮＳＯ [03.1998 - 09.2001] AE115..SOL;EE110,ZZE11# YAZAKI |
83530-60020 |
from US $25.55 |
||
|
84210
|
84210
84210-12040
Switch Assy, Back-Up Lamp
[04.1997 - 09.2001] AE115..SOL;CDE110,EE110,ZZE11#..5F |
84210-12040 |
— | ||
| replacement | |||||
|
84210
|
84210
84210-52050 Switch Assy, Back-Up Lamp[04.1997 - 09.2001] AE115..SOL;CDE110,EE110,ZZE11#..5F |
84210-52050 |
from US $20.67 |
||
|
84222
|
84222
84222-12010 Switch, Transfer Indicator, No.1[10.1999 - 07.2001] AE115 |
84222-12010 |
from US $49.25 |
||
|
89428
|
89428
89428-12160 Switch, Temperature Detect, No.2[04.1997 - 07.2001] EE110;AE115..SOL |
89428-12160 |
from US $78.44 |
||
|
89465
|
89465
89465-12580
Sensor, Oxygen
[10.1999 - 07.2001] AE115 REAR |
89465-12580 |
— | ||
|
89465
|
89465
89465-19755
Sensor, Oxygen
[10.1999 - 07.2001] AE115 FRONT |
89465-19755 |
— | ||
|
89466
|
89466
89466-20020 Gasket(For Exhaust Manifold Plate)[10.1999 - 07.2001] AE115 |
89466-20020 |
from US $13.88 |
||
|
89615
|
89615
89615-22050 Sensor, Knock Control[10.1999 - 07.2001] AE115 TOYOTA |
89615-22050 |
US $208.21 |
||
| replacement | |||||
|
89615
|
89615
89615-52010 Sensor, Knock Control[10.1999 - 07.2001] AE115 TOYOTA |
89615-52010 |
from US $134.67 |
||
|
89615
|
89615
89615-52010 Sensor, Knock Control[10.1999 - 07.2001] AE115 MATSUSHITA |
89615-52010 |
from US $134.67 |
||
|
9017908059
|
9017908059
90179-08059
Nut
|
90179-08059 |
— | ||
| replacement | |||||
|
9017908059
|
9017908059
90179-08101 NUT |
90179-08101 |
from US $0.84 |
||
|
9043018008
|
9043018008
90430-18008 Gasket |
90430-18008 |
from US $0.92 |
||
| replacement | |||||
|
9043018008
|
9043018008
90430-T0021
Gasket(For Manual Transmission Filler Plug)
|
90430-T0021 |
— | ||
