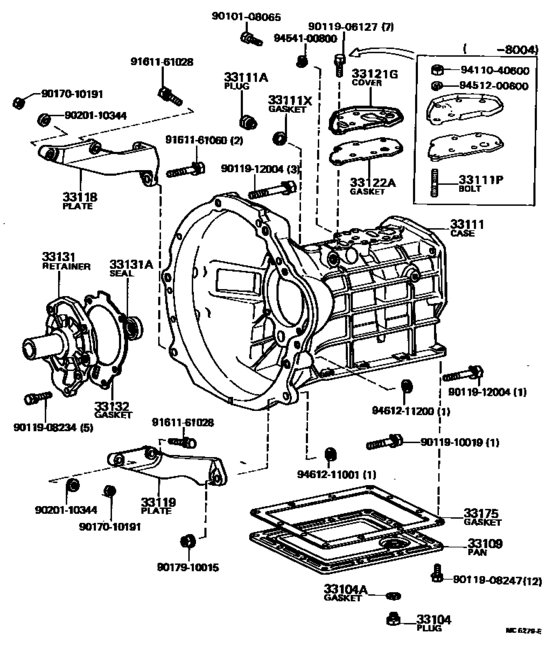

Clutch Housing & Transmission Case (Mtm) ([03.1979 - 04.1983] (7903-8304)AE70..MTM) Diagram Toyota COROLLA
- Year
- 1981 - 1983
- Sales region
- Japan
- Frame
- AE70
- grade
- DX
- body
- SED
- ENGINE
- 3AU
- TRANSMISSION
- MTM
- Model
- COROLLA
- From
- 08.1981
- To
- 04.1983
- Gear Shift Type
- 5F
- No.of Doors
- 4D
- Vehicle Model
- Corolla
Difficulties in parts search?
Difficulties in parts search?
| Description | OEM Part # | Price | |||
|---|---|---|---|---|---|
|
33104
|
33104
90341-18057 Drain Plug (with Magnet)[03.1979 - 07.1987] AE70,CE7#,KE70,71,72,73..MTM |
90341-18057 |
US $5.60 |
||
|
33104A
|
33104A
12157-10010 Gasket (For Drain Plug)[03.1979 - 08.1981] AE70,KE7#,TE7#..MTM |
12157-10010 |
from US $1.60 |
||
|
33104A
|
33104A
90430-18007
Gasket(For Water Hole)
[08.1981 - 08.1984] AE70,CE7#,KE7#,TE7#..MTM |
90430-18007 |
— | ||
| replacement | |||||
|
33104A
|
33104A
90430-18008 Gasket[08.1981 - 08.1984] AE70,CE7#,KE7#,TE7#..MTM |
90430-18008 |
from US $0.92 |
||
|
33109
|
33109
33109-12011
Pan Sub-Assy, Transmission Oil(Mtm)
[03.1979 - 07.1987] AE70,KE70,71,72,73..MTM |
33109-12011 |
— | ||
| replacement | |||||
|
33109
|
33109
33109-12012
Pan Sub-Assy, Transmission Oil(Mtm)
[03.1979 - 07.1987] AE70,KE70,71,72,73..MTM |
33109-12012 |
— | ||
|
33111
|
33111
33111-12121
Case, Manual Transmission
[09.1980 - 04.1983] AE70..MTM |
33111-12121 |
— | ||
|
33111A
|
33111A
90341-18002 Plug, No.1[03.1979 - 10.1982] AE70,CE7#,KE7#,TE7#..MTM |
90341-18002 |
from US $3.76 |
||
|
33111A
|
33111A
90341-18006 Plug (No magnet)[10.1982 - 08.1985] AE70,CE7#,KE7#,TE7#..MTM |
90341-18006 |
US $2.88 |
||
|
33111X
|
33111X
12157-10010 Gasket (For Drain Plug)[03.1979 - 08.1981] AE70,KE7#,TE7#..MTM |
12157-10010 |
from US $1.60 |
||
|
33111X
|
33111X
90430-18007
Gasket(For Water Hole)
[08.1981 - 08.1984] AE70,CE7#,KE7#,TE7#..MTM |
90430-18007 |
— | ||
| replacement | |||||
|
33111X
|
33111X
90430-18008 Gasket[08.1981 - 08.1984] AE70,CE7#,KE7#,TE7#..MTM |
90430-18008 |
from US $0.92 |
||
|
33118
|
33118
33118-12070 Plate, Stiffener, Rh(Mtm)[03.1979 - 08.1981] AE70..MTM |
33118-12070 |
US $33.78 |
||
|
33118
|
33118
33118-12090 Plate, Stiffener, Rh(Mtm)STIFENER, RH (ATM) [08.1981 - 04.1983] AE70..MTM |
33118-12090 |
US $33.34 |
||
| replacement | |||||
|
33118
|
33118
33118-12110 Plate, Stiffener, Rh(Mtm)STIFENER, RH (ATM) [08.1981 - 04.1983] AE70..MTM |
33118-12110 |
US $33.78 |
||
|
33119
|
33119
33119-12040 Plate, Stiffener, Lh(Mtm)[03.1979 - 08.1981] AE70..MTM |
33119-12040 |
US $29.27 |
||
| replacements | |||||
|
33119
|
33119
91612-61060 Bolt(for Clutch Release Cylinder Setting)[03.1979 - 08.1981] AE70..MTM |
91612-61060 |
US $1.92 |
||
|
33119
|
33119
33119-12100 Plate, Stiffener, Lh(Mtm)[03.1979 - 08.1981] AE70..MTM |
33119-12100 |
US $29.27 |
||
|
33119
|
33119
91651-61060 New Genuine Part[03.1979 - 08.1981] AE70..MTM |
91651-61060 |
US $0.96 |
||
|
33119
|
33119
33119-12060 Plate, Stiffener, Lh(Mtm)[08.1981 - 04.1983] AE70..MTM |
33119-12060 |
US $29.27 |
||
| replacements | |||||
|
33119
|
33119
91612-61060 Bolt(for Clutch Release Cylinder Setting)[08.1981 - 04.1983] AE70..MTM |
91612-61060 |
US $1.92 |
||
|
33119
|
33119
33119-12100 Plate, Stiffener, Lh(Mtm)[08.1981 - 04.1983] AE70..MTM |
33119-12100 |
US $29.27 |
||
|
33119
|
33119
91651-61060 New Genuine Part[08.1981 - 04.1983] AE70..MTM |
91651-61060 |
US $0.96 |
||
|
33119
|
33119
33119-12100 Plate, Stiffener, Lh(Mtm)[04.1983 - 04.1983] AE70..MTM |
33119-12100 |
US $29.27 |
||
|
33121G
|
33121G
33121-12031 Cover, Manual Transmission CaseMANUAL TRANSMISSION CASE [03.1979 - 04.1983] AE70..MTM |
33121-12031 |
US $14.41 |
||
|
33122A
|
33122A
33122-12031 Gasket, Manual Transmission Case CoverMANUAL TRANSMISSION CASE COVER [03.1979 - 04.1983] AE70..MTM |
33122-12031 |
US $3.06 |
||
|
33131
|
33131
33131-12060 Retainer, Bearing, Front(Mtm)BEARING, FRONT(MTM) [03.1979 - 04.1983] AE70..MTM |
33131-12060 |
US $56.93 |
||
|
33131A
|
33131A
90311-25003 Seal, Oil(For Transmission Front Bearing Retainer)[03.1979 - 07.1987] AE70,KE7#,TE7#..MTM |
90311-25003 |
US $3.36 |
||
|
33132
|
33132
33132-12050
Gasket, Front Bearing Retainer(Mtm)
[03.1979 - 04.1983] AE70..MTM |
33132-12050 |
— | ||
|
33175
|
33175
33175-12010
Gasket, Manual Transmission Oil Pan
[03.1979 - 07.1987] AE70,KE70,71,72,73..MTM |
33175-12010 |
— | ||
|
9010108065
|
9010108065
90101-08065 New Genuine Part |
90101-08065 |
US $1.89 |
||
|
9011906127
|
9011906127
90119-06127 New Genuine Part |
90119-06127 |
US $2.04 |
||
|
9011908234
|
9011908234
90119-08234 New Genuine Part |
90119-08234 |
US $2.48 |
||
|
9011908247
|
9011908247
90119-08247 Bolt(For Manual Transmission Oil Pan Setting) |
90119-08247 |
US $1.75 |
||
|
9011910019
|
9011910019
90119-10019 Bolt(For Transmission Case & Engine Setting) |
90119-10019 |
US $4.48 |
||
|
9011912004
|
9011912004
90119-12004 Bolt(For Transmission Case & Engine Setting) |
90119-12004 |
US $4.96 |
||
|
9017010191
|
9017010191
90170-10191 Nut(For Rear Drive Shaft) |
90170-10191 |
US $1.76 |
||
|
9017910015
|
9017910015
90179-10015 NUT |
90179-10015 |
from US $1.09 |
||
|
9020110344
|
9020110344
90201-10344 Washer, Plate(For Cylinder Head Set) |
90201-10344 |
US $1.76 |
||
|
9161161028
|
9161161028
91611-61028
Bolt(For Transaxle Case & Engine Setting)
|
91611-61028 |
— | ||
| replacement | |||||
|
9161161028
|
9161161028
91612-61028 Bolt(For Transaxle Case & Engine Setting) |
91612-61028 |
US $2.72 |
||
|
9161161060
|
9161161060
91611-61060
Bolt(for Clutch Release Cylinder Setting)
|
91611-61060 |
— | ||
| replacement | |||||
|
9161161060
|
9161161060
91612-61060 Bolt(for Clutch Release Cylinder Setting) |
91612-61060 |
US $1.92 |
||
|
9411040600
|
9411040600
94110-40600 Nut, Rock |
94110-40600 |
from US $0.70 |
||
|
9451200600
|
9451200600
94512-00600 Washer, Seal(For Head Cover Set) |
94512-00600 |
US $2.08 |
||
|
9454100800
|
9454100800
94541-00800 New Genuine Part |
94541-00800 |
US $1.60 |
||
|
9461211001
|
9461211001
94612-11001 Washer, Plate (For Center Support Bearing Housing) |
94612-11001 |
from US $0.96 |
||
|
9461211200
|
9461211200
94612-11200 Washer |
94612-11200 |
from US $0.74 |
||
