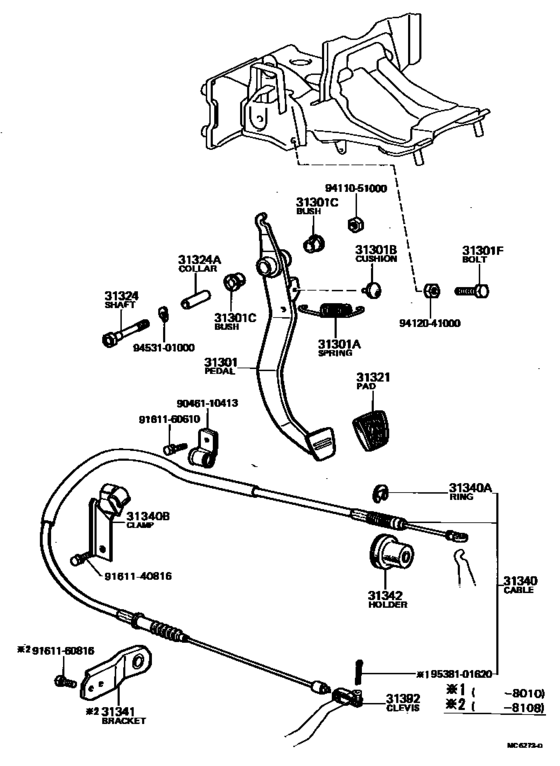

Clutch Pedal & Flexible Hose ([03.1979 - 04.1983] (7903-8304)AE70..MTM) Diagram Toyota COROLLA
- Year
- 1981 - 1983
- Sales region
- Japan
- Frame
- AE70
- grade
- DX
- body
- SED
- ENGINE
- 3AU
- TRANSMISSION
- MTM
- Model
- COROLLA
- From
- 08.1981
- To
- 04.1983
- Gear Shift Type
- 5F
- No.of Doors
- 4D
- Vehicle Model
- Corolla
Difficulties in parts search?
Difficulties in parts search?
| Description | OEM Part # | Price | |||
|---|---|---|---|---|---|
|
31301
|
31301
31301-12120 Pedal Sub-Assy, ClutchCLUTCH [08.1981 - 07.1987] AE70,KE70,73..MTM |
31301-12120 |
US $33.20 |
||
|
31301
|
31301
31301-12160 Pedal Sub-Assy, ClutchCLUTCH [03.1979 - 08.1981] AE70,KE71..MTM |
31301-12160 |
US $30.28 |
||
| replacement | |||||
|
31301
|
31301
31301-12180 Pedal Sub-Assy, ClutchCLUTCH [03.1979 - 08.1981] AE70,KE71..MTM |
31301-12180 |
US $30.28 |
||
|
31301A
|
31301A
90507-14003
Spring(For Clutch Pedal)
[03.1979 - 07.1987] AE70,CE7#,KE7#,TE7#..MTM |
90507-14003 |
— | ||
|
31301B
|
31301B
90541-06008 Cushion, No.1(For Clutch Pedal)[03.1979 - 07.1987] AE70,CE7#,KE7#,TE7#..MTM |
90541-06008 |
from US $1.60 |
||
|
31301C
|
31301C
90386-13007 Bush(For Clutch Pedal)[03.1979 - 07.1987] AE70,CE7#,KE7#,TE7#..MTM |
90386-13007 |
from US $2.56 |
||
|
31301F
|
31301F
90101-10369 Bolt(For Clutch Pedal Stopper)[03.1979 - 07.1987] AE70,CE7#,KE7#,TE7#..MTM |
90101-10369 |
from US $1.35 |
||
|
31321
|
31321
31321-12030 Pad, Clutch Pedal[03.1979 - 07.1987] AE70,CE7#,KE7#,TE7#..MTM |
31321-12030 |
US $9.28 |
||
|
31324
|
31324
90101-10015 Shaft, Clutch Pedal[03.1979 - 07.1987] AE70,CE7#,KE7#,TE7#..MTM |
90101-10015 |
from US $1.19 |
||
| replacement | |||||
|
31324
|
31324
90101100151 Bolt, Hexagon[03.1979 - 07.1987] AE70,CE7#,KE7#,TE7#..MTM |
90101100151 |
US $1.11 |
||
|
31324A
|
31324A
90387-10003 Collar, Clutch Pedal Shaft[03.1979 - 07.1987] AE70,CE7#,KE7#,TE7#..MTM |
90387-10003 |
from US $4.11 |
||
|
31340
|
31340
31340-19217 Cable Assy, Clutch Release[12.1979 - 08.1981] AE70..MTM |
31340-19217 |
US $78.62 |
||
| replacement | |||||
|
31340
|
31340
31340-19286 Cable Assy, Clutch Release[12.1979 - 08.1981] AE70..MTM |
31340-19286 |
US $82.99 |
||
|
31340
|
31340
31340-19255
Cable Assy, Clutch Release
[08.1981 - 04.1983] AE70..MTM |
31340-19255 |
— | ||
| replacements | |||||
|
31340
|
31340
31340-12210
Cable Assy, Clutch Release
[08.1981 - 04.1983] AE70..MTM |
31340-12210 |
— | ||
|
31340
|
31340
96160-01200 Ring, E(For Clutch Release Cable)[08.1981 - 04.1983] AE70..MTM |
96160-01200 |
from US $1.60 |
||
|
31340A
|
31340A
96160-01200 Ring, E(For Clutch Release Cable)[03.1979 - 07.1987] AE70,KE70,71,72,73..MTM |
96160-01200 |
from US $1.60 |
||
|
31340B
|
31340B
90949-01007 Clamp(For Clutch Release Cable)[08.1981 - 04.1983] AE70..MTM |
90949-01007 |
US $11.07 |
||
|
31341
|
31341
31341-12012 Bracket, Clutch Cable[12.1979 - 08.1981] AE70..MTM |
31341-12012 |
US $16.60 |
||
|
31342
|
31342
31342-12902
Holder, Clutch Cable, Inner
[04.1979 - 07.1987] AE70,KE70,71,72,73..MTM |
31342-12902 |
— | ||
|
31392
|
31392
31392-10010
Clevis, Clutch Cable
[08.1981 - 07.1987] AE70,KE70,72,73..MTM |
31392-10010 |
— | ||
|
31392
|
31392
31392-12010 Clevis, Clutch CableCLUTCH CABLE [11.1979 - 08.1981] AE70..MTM |
31392-12010 |
US $8.88 |
||
|
9046110413
|
9046110413
90461-10413 New Genuine Part |
90461-10413 |
US $3.20 |
||
|
9161140816
|
9161140816
91611-40816
Screw Or Bolt(For Valve Rocker Shaft Lock)
|
91611-40816 |
— | ||
| replacement | |||||
|
9161140816
|
9161140816
91611-B0816 Bolt |
91611-B0816 |
from US $1.09 |
||
|
9161160610
|
9161160610
91611-60610
Bolt (For Transfer Oil Receiver No.1)
|
91611-60610 |
— | ||
| replacement | |||||
|
9161160610
|
9161160610
91611-B0610 Bolt (For Transfer Oil Receiver No.1) |
91611-B0610 |
US $1.12 |
||
|
9161160816
|
9161160816
91611-60816
Screw Or Bolt(For Valve Rocker Shaft Lock)
|
91611-60816 |
— | ||
| replacement | |||||
|
9161160816
|
9161160816
91611-B0816 Bolt |
91611-B0816 |
from US $1.09 |
||
|
9411051000
|
9411051000
94110-51000 Nut(For Steering Center Arm) |
94110-51000 |
from US $2.08 |
||
|
9412041000
|
9412041000
94120-41000 Nut(For Clutch Pedal Stopper) |
94120-41000 |
from US $0.78 |
||
| replacement | |||||
|
9412041000
|
9412041000
90170-A0002 Nut |
90170-A0002 |
US $2.33 |
||
|
9453101000
|
9453101000
94531-01000 WASHER |
94531-01000 |
from US $1.44 |
||
|
9538101620
|
9538101620
95381-01620 New Genuine Part |
95381-01620 |
US $1.75 |
||
