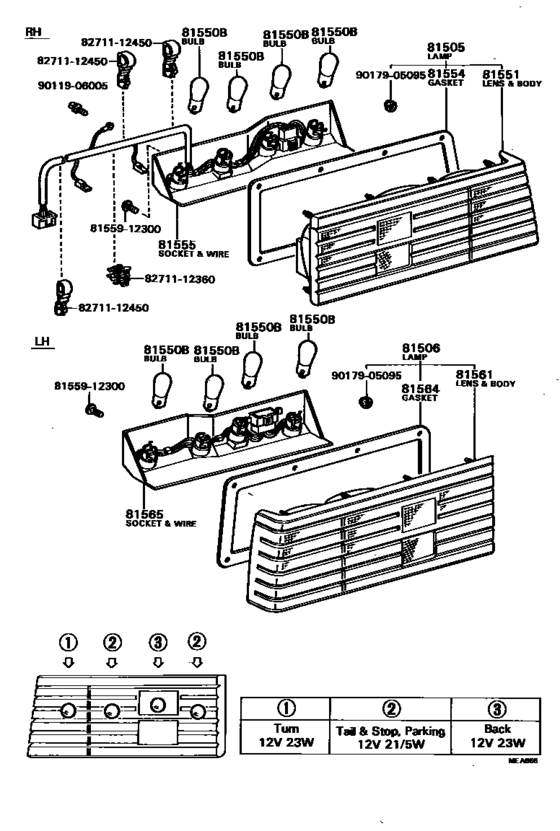

Rear Combination Lamp ([08.1981 - 04.1983] (8108-8304)HT) Diagram Toyota COROLLA
- Year
- 1981 - 1983
- Sales region
- Japan
- Frame
- AE70
- grade
- SX
- body
- HT
- ENGINE
- 3AU
- TRANSMISSION
- MTM
- Model
- COROLLA
- From
- 08.1981
- To
- 04.1983
- Gear Shift Type
- 5F
- No.of Doors
- 2D
- Vehicle Model
- Corolla
Difficulties in parts search?
Difficulties in parts search?
| Description | OEM Part # | Price | |||
|---|---|---|---|---|---|
|
81505
|
81505
81505-19615 Lamp Sub-Assy, Rear Combination, RhREAR COMBINATION, RH [08.1981 - 04.1983] AE70,KE70,TE71..HT |
81505-19615 |
US $251.89 |
||
|
81506
|
81506
81506-19475 Lamp Sub-Assy, Rear Combination, LhREAR COMBINATION, LH [08.1981 - 04.1983] AE70,KE70,TE71..HT |
81506-19475 |
US $251.89 |
||
|
81550B
|
81550B
99132-11230
Bulb, Fog Lamp
[03.1979 - 07.1987] AE70,CE7#,KE7#,TE7# １２Ｖ ２３Ｗ,12V 23W |
99132-11230 |
— | ||
| replacement | |||||
|
81550B
|
81550B
00234-01073 Bulb[03.1979 - 07.1987] AE70,CE7#,KE7#,TE7# １２Ｖ ２３Ｗ,12V 23W |
00234-01073 |
US $2.34 |
||
|
81550B
|
81550B
99132-21210 Bulb, Cornering Lamp[03.1979 - 07.1987] AE70,CE7#,KE7#,TE7# １２Ｖ ２１／５Ｗ,12V 21/5W |
99132-21210 |
from US $3.04 |
||
|
81551
|
81551
81551-1A010 Lens, Rear Combination Lamp, RhREAR COMBINATION LAMP, RH [08.1981 - 04.1983] AE70,KE70,TE71..HT |
81551-1A010 |
US $206.75 |
||
|
81554
|
81554
81554-12530
Gasket, Rear Combination Lamp Body, Rh
[03.1979 - 08.1981] AE70,KE70,TE70,71..HT |
81554-12530 |
— | ||
|
81554
|
81554
81554-1A110
Gasket, Rear Combination Lamp Body, Rh
[08.1981 - 04.1983] AE70,KE70,TE71..HT |
81554-1A110 |
— | ||
|
81555
|
81555
81555-12531
Socket & Wire Sub-Assy, Rear Combination Lamp, Rh
[11.1980 - 08.1981] AE70,KE70,TE70,71..HT |
81555-12531 |
— | ||
|
81555
|
81555
81555-1A010
Socket & Wire Sub-Assy, Rear Combination Lamp, Rh
[08.1981 - 04.1983] AE70,KE70,TE71..HT |
81555-1A010 |
— | ||
|
81561
|
81561
81561-1A010 Lens, Rear Combination Lamp, LhREAR COMBINATION LAMP, LH [08.1981 - 04.1983] AE70,KE70,TE71..HT |
81561-1A010 |
US $206.75 |
||
|
81564
|
81564
81554-12530
Gasket, Rear Combination Lamp Body, Rh
[03.1979 - 08.1981] AE70,KE70,TE70,71..HT |
81554-12530 |
— | ||
|
81564
|
81564
81554-1A110
Gasket, Rear Combination Lamp Body, Rh
[08.1981 - 04.1983] AE70,KE70,TE71..HT |
81554-1A110 |
— | ||
|
81565
|
81565
81565-12530
Socket & Wire Sub-Assy, Rear Combination Lamp, Lh
[03.1979 - 08.1981] AE70,KE70,TE70,71..HT |
81565-12530 |
— | ||
|
81565
|
81565
81565-1A010
Socket & Wire Sub-Assy, Rear Combination Lamp, Lh
[08.1981 - 04.1983] AE70,KE70,TE71..HT |
81565-1A010 |
— | ||
|
8155912300
|
8155912300
81559-12300
Bracket,foglamp,rh No.2
|
81559-12300 |
— | ||
| replacement | |||||
|
8155912300
|
8155912300
81279-91D01
Bracket,foglamp,rh No.2
|
81279-91D01 |
— | ||
|
8271112360
|
8271112360
82711-12360
Wire, Fuse To Fuse(for Combustion Heater)
|
82711-12360 |
— | ||
|
8271112450
|
8271112450
82711-12450 Wire, Fuse To Fuse(for Combustion Heater) |
82711-12450 |
US $9.17 |
||
|
9011906005
|
9011906005
90119-06005 New Genuine Part |
90119-06005 |
US $1.28 |
||
|
9017905095
|
9017905095
90179-05095
NUT
|
90179-05095 |
— | ||
| replacement | |||||
|
9017905095
|
9017905095
90179-05004 NUT |
90179-05004 |
from US $2.08 |
||
