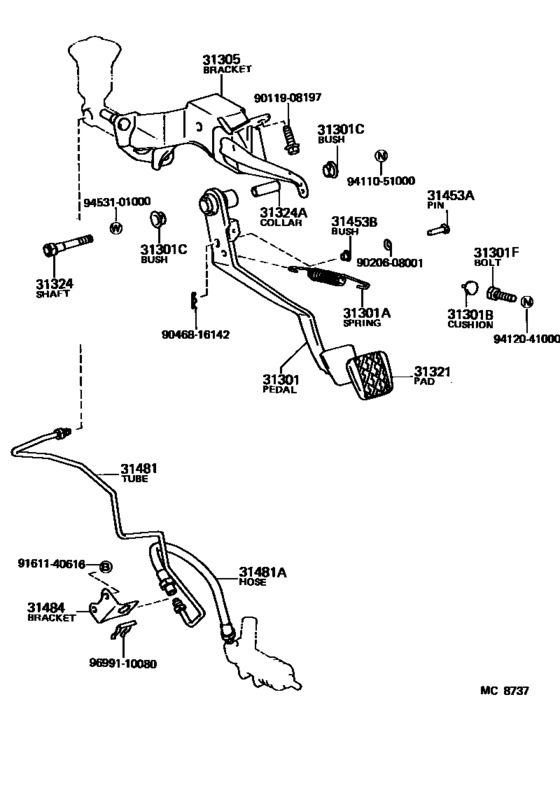

Clutch Pedal & Flexible Hose ([08.1982 - ] (8208- )MTM) Diagram Toyota COROLLA
- Year
- 1982 - 1983
- Sales region
- U.S.A.
- Frame
- AE71
- grade
- DX
- body
- CP
- ENGINE
- 4AC
- TRANSMISSION
- MTM
- DESTINATION
- USA
- Model
- COROLLA
- From
- 08.1982
- To
- 07.1983
- Gear Shift Type
- 5F
- No.of Doors
- 2D
- Vehicle Model
- Corolla
Difficulties in parts search?
Difficulties in parts search?
| Description | OEM Part # | Price | |||
|---|---|---|---|---|---|
|
31301
|
31301
31301-12170
Pedal Sub-Assy, Clutch
[08.1982 - 07.1983] AE71..MTM |
31301-12170 |
— | ||
|
31301A
|
31301A
90507-14003
Spring(For Clutch Pedal)
[08.1979 - 07.1983] AE71,TE72..MTM |
90507-14003 |
— | ||
|
31301B
|
31301B
90541-06008 Cushion, No.1(For Clutch Pedal)[08.1979 - 07.1983] AE71,TE72..MTM |
90541-06008 |
from US $1.60 |
||
|
31301C
|
31301C
90386-13007 Bush(For Clutch Pedal)[08.1979 - 07.1983] AE71,TE72..MTM |
90386-13007 |
from US $2.56 |
||
|
31301F
|
31301F
90101-10369 Bolt(For Clutch Pedal Stopper)[08.1979 - 07.1983] AE71,TE72..MTM |
90101-10369 |
from US $1.35 |
||
|
31305
|
31305
55107-12020
Bracket Sub-Assy, Clutch Pedal
[08.1982 - 07.1983] AE71..MTM |
55107-12020 |
— | ||
|
31321
|
31321
31321-12030 Pad, Clutch Pedal[08.1979 - 07.1983] AE71,TE72..MTM |
31321-12030 |
from US $4.29 |
||
|
31324
|
31324
90101-10015 Shaft, Clutch Pedal[08.1979 - 07.1983] AE71,TE72..MTM |
90101-10015 |
from US $1.27 |
||
| replacement | |||||
|
31324
|
31324
90101100151 Bolt, Hexagon[08.1979 - 07.1983] AE71,TE72..MTM |
90101100151 |
US $1.11 |
||
|
31324A
|
31324A
90387-10003 Collar, Clutch Pedal Shaft[08.1979 - 07.1983] AE71,TE72..MTM |
90387-10003 |
from US $4.11 |
||
|
31453A
|
31453A
90240-08006 Pin, W/hole(For Clutch Master Cylinder Push Rod Clevis)[08.1979 - 07.1983] AE71,TE72..MTM L=23.5 |
90240-08006 |
from US $2.32 |
||
|
31453B
|
31453B
90386-08002 Bush(For Clutch Pedal Over Center Spring Pin)[08.1979 - 07.1983] AE71,TE72..MTM |
90386-08002 |
from US $3.84 |
||
|
31481
|
31481
31481-12080 Tube, Clutch Master Cylinder To Flexible HoseCLUTCH MASTER CYLINDER TO FLEXIBLE HOSE [08.1982 - 07.1983] AE71..MTM |
31481-12080 |
US $11.36 |
||
|
31481A
|
31481A
90947-02440 Hose, ClutchCLUTCH [08.1982 - 07.1983] AE71..MTM |
90947-02440 |
US $20.67 |
||
|
31484
|
31484
31484-14050
Bracket, Flexible Hose(For Clutch)
[08.1982 - 07.1983] AE71..MTM |
31484-14050 |
— | ||
|
9011908197
|
9011908197
90119-08197 New Genuine Part |
90119-08197 |
US $2.72 |
||
|
9020608001
|
9020608001
90206-08001 WASHER |
90206-08001 |
US $1.92 |
||
|
9046816142
|
9046816142
90468-16142 Clip(For Push Rod Clevis Pin) |
90468-16142 |
from US $0.88 |
||
|
9161140616
|
9161140616
91611-40616
Bolt, Hexagon(For Steering Column Bracket)
|
91611-40616 |
— | ||
| replacement | |||||
|
9161140616
|
9161140616
91611-B0616 Bolt(For Transaxle Case Receiver) |
91611-B0616 |
from US $0.96 |
||
|
9411051000
|
9411051000
94110-51000 Nut(For Steering Center Arm) |
94110-51000 |
from US $2.08 |
||
|
9412041000
|
9412041000
94120-41000 Nut(For Clutch Pedal Stopper) |
94120-41000 |
from US $0.80 |
||
| replacement | |||||
|
9412041000
|
9412041000
90170-A0002 Nut |
90170-A0002 |
US $2.33 |
||
|
9453101000
|
9453101000
94531-01000 WASHER |
94531-01000 |
from US $1.44 |
||
|
9699110080
|
9699110080
96991-10080 CLIP |
96991-10080 |
from US $1.35 |
||
