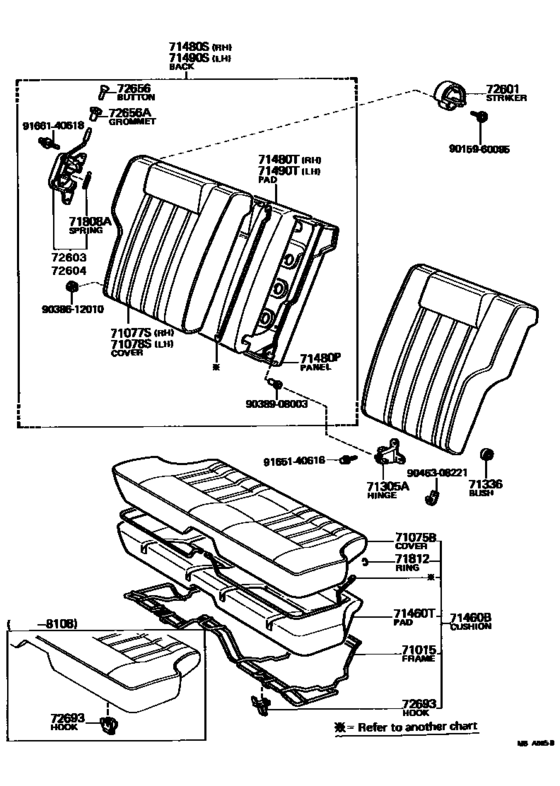

Rear Seat & Seat Track ([08.1979 - ] (7908- )CP) Diagram Toyota COROLLA
- Year
- 1982 - 1983
- Sales region
- U.S.A.
- Frame
- AE71
- grade
- DX
- body
- CP
- ENGINE
- 4AC
- TRANSMISSION
- MTM
- DESTINATION
- USA
- Model
- COROLLA
- From
- 08.1982
- To
- 07.1983
- Gear Shift Type
- 5F
- No.of Doors
- 2D
- Vehicle Model
- Corolla
Difficulties in parts search?
Difficulties in parts search?
| Description | OEM Part # | Price | |||
|---|---|---|---|---|---|
|
71015
|
71015
71015-12220
Frame Sub-Assy, Rear Seat Cushion
[08.1979 - 07.1983] AE71,TE72..CP |
71015-12220 |
— | ||
|
71075B
|
71075B
71065-12770-01
Cover, Rear Seat Cushion (For Bench Type)
[08.1982 - 07.1983] AE71..CP..USA SPORT SEAT,FB,BLACK,BLACK |
71065-12770-01 |
— | ||
|
71075B
|
71075B
71075-1A482-06
Cover, Rear Seat Cushion (For Bench Type)
[08.1982 - 07.1983] AE71..CP..USA SR-5 PACKAGE,K-TY,BROWN,BROWN |
71075-1A482-06 |
— | ||
|
71075B
|
71075B
71075-1A522-04
Cover, Rear Seat Cushion (For Bench Type)
[08.1982 - 07.1983] AE71..CP..USA FB,BLUE,BLUE; AE71..CP..CND SR-5 PACKAGE,FB,BLUE,BLUE |
71075-1A522-04 |
— | ||
|
71075B
|
71075B
71075-1A522-06
Cover, Rear Seat Cushion (For Bench Type)
[08.1982 - 07.1983] AE71..CP..USA FB,BROWN,BROWN; AE71..CP..CND SR-5 PACKAGE,FB,BROWN,BROWN |
71075-1A522-06 |
— | ||
|
71075B
|
71075B
71075-1A522-13
Cover, Rear Seat Cushion (For Bench Type)
[08.1982 - 07.1983] AE71..CP..USA FB,GRAY,GRAY; AE71..CP..CND SR-5 PACKAGE,FB,GRAY,GRAY |
71075-1A522-13 |
— | ||
|
71077S
|
71077S
71077-1A731-06
Cover, Rear Seat Back, Rh (For Separate Type)
[08.1982 - 07.1983] AE71..(CP,LB)..(4FC,5F)..USA SR-5 PACKAGE,K-TY,BROWN,BROWN |
71077-1A731-06 |
— | ||
|
71077S
|
71077S
71077-1A852-04
Cover, Rear Seat Back, Rh (For Separate Type)
[08.1982 - 07.1983] AE71..CP..USA FB,BLUE,BLUE; AE71..CP..CND SR-5 PACKAGE,FB,BLUE,BLUE |
71077-1A852-04 |
— | ||
|
71077S
|
71077S
71077-1A852-06
Cover, Rear Seat Back, Rh (For Separate Type)
[08.1982 - 07.1983] AE71..CP..USA FB,BROWN,BROWN; AE71..CP..CND SR-5 PACKAGE,FB,BROWN,BROWN |
71077-1A852-06 |
— | ||
|
71077S
|
71077S
71077-1A852-13
Cover, Rear Seat Back, Rh (For Separate Type)
[08.1982 - 07.1983] AE71..CP..USA FB,GRAY,GRAY; AE71..CP..CND SR-5 PACKAGE,FB,GRAY,GRAY |
71077-1A852-13 |
— | ||
|
71077S
|
71077S
71077-1E390-01
Cover, Rear Seat Back, Rh (For Separate Type)
[08.1982 - 07.1983] AE71..CP..USA SPORT SEAT,BLACK,BLACK |
71077-1E390-01 |
— | ||
|
71078S
|
71078S
71078-12401-06
Cover, Rear Seat Back, Lh(For Separate Type)
[08.1982 - 07.1983] AE71..(CP,LB)..(4FC,5F)..USA SR-5 PACKAGE,K-TY,BROWN,BROWN |
71078-12401-06 |
— | ||
|
71078S
|
71078S
71078-12412-04
Cover, Rear Seat Back, Lh(For Separate Type)
[08.1982 - 07.1983] AE71..CP..USA FB,BLUE,BLUE; AE71..CP..CND SR-5 PACKAGE,FB,BLUE,BLUE |
71078-12412-04 |
— | ||
|
71078S
|
71078S
71078-12412-06
Cover, Rear Seat Back, Lh(For Separate Type)
[08.1982 - 07.1983] AE71..CP..USA FB,BROWN,BROWN; AE71..CP..CND SR-5 PACKAGE,FB,BROWN,BROWN |
71078-12412-06 |
— | ||
|
71078S
|
71078S
71078-12412-13
Cover, Rear Seat Back, Lh(For Separate Type)
[08.1982 - 07.1983] AE71..CP..USA FB,GRAY,GRAY; AE71..CP..CND SR-5 PACKAGE,FB,GRAY,GRAY |
71078-12412-13 |
— | ||
|
71078S
|
71078S
71078-12620-01
Cover, Rear Seat Back, Lh(For Separate Type)
[08.1982 - 07.1983] AE71..CP..USA SPORT SEAT,FB,BLACK,BLACK |
71078-12620-01 |
— | ||
|
71305A
|
71305A
71305-12020
Hinge Sub-Assy, Rear Seat Back, Center
[08.1979 - 07.1983] AE71,TE72..CP,LB |
71305-12020 |
— | ||
|
71336
|
71336
71332-12010
Bush Or Spacer, Rear Seat Back Hinge
[08.1979 - 07.1983] AE71,TE72..CP,LB |
71332-12010 |
— | ||
|
71460T
|
71460T
71611-12360
Pad Sub-Assy, Rear Seat Cushion, No.1
[08.1979 - 07.1983] AE71,TE72..CP |
71611-12360 |
— | ||
|
71480P
|
71480P
71202-12040
Panel Sub-Assy, Rear Seat Back
[08.1979 - 07.1983] AE71,TE72..CP,LB RH |
71202-12040 |
— | ||
|
71480P
|
71480P
71203-12020
Panel Sub-Assy, Rear Seat Back
[08.1979 - 07.1983] AE71,TE72..CP,LB LH |
71203-12020 |
— | ||
|
71480T
|
71480T
71651-12340
Pad, Rear Seat Back, Rh (For Separate Seat)
[08.1979 - 07.1983] AE71,TE72..CP,LB |
71651-12340 |
— | ||
|
71490T
|
71490T
71652-12190
Pad, Rear Seat Back, Lh (For Separate Seat)
[08.1979 - 07.1983] AE71,TE72..CP,LB |
71652-12190 |
— | ||
|
71808A
|
71808A
90506-08003 Spring, Rear Seat Back Stopper[08.1979 - 07.1983] AE71,TE72..CP,LB |
90506-08003 |
US $2.62 |
||
|
71812
|
71812
90468-18071
Clip (For Front Seat Cushion Cover)
[08.1979 - 07.1983] AE71,TE72 |
90468-18071 |
— | ||
| replacement | |||||
|
71812
|
71812
90468-16019 Clip (For Rear Seat Back)[08.1979 - 07.1983] AE71,TE72 |
90468-16019 |
from US $0.78 |
||
|
72601
|
72601
72601-12030 Striker Sub-Assy, Rear Seat LockREAR SEAT LOCK [08.1979 - 07.1983] AE71,TE72..CP,LB RH |
72601-12030 |
US $17.91 |
||
|
72601
|
72601
72602-12010
Striker Sub-Assy, Rear Seat Lock
[08.1979 - 07.1983] AE71,TE72..CP,LB LH |
72602-12010 |
— | ||
|
72603
|
72603
72630-12040 Lock Sub-Assy, Rear Seat Back, Rh[08.1979 - 07.1983] AE71,TE72..CP,LB RH |
72630-12040 |
US $29.99 |
||
|
72604
|
72604
72640-12040 Lock Sub-Assy, Rear Seat Back, Lh[08.1979 - 07.1983] AE71,TE72..CP,LB LH |
72640-12040 |
US $29.99 |
||
|
72656
|
72656
72656-20010-01 Button, Rear Seat Back Stop Release[08.1979 - 07.1983] AE71,TE72..CP,LB BLACK,BLACK |
72656-20010-01 |
US $9.90 |
||
| replacement | |||||
|
72656
|
72656
72656-20010-C1
Button, Rear Seat Back Stop Release
[08.1979 - 07.1983] AE71,TE72..CP,LB BLACK,BLACK |
72656-20010-C1 |
— | ||
|
72656
|
72656
72656-20010-04 Button, Rear Seat Back Stop ReleaseREAR SEAT BACK STOP RELEASE [08.1979 - 07.1983] AE71,TE72..CP,LB BLUE,BLUE |
72656-20010-04 |
US $9.90 |
||
| replacement | |||||
|
72656
|
72656
72656-20010-C1
Button, Rear Seat Back Stop Release
[08.1979 - 07.1983] AE71,TE72..CP,LB BLUE,BLUE |
72656-20010-C1 |
— | ||
|
72656
|
72656
72656-20010-16 Button, Rear Seat Back Stop Release[08.1979 - 07.1983] AE71,TE72..CP,LB DARK BROWN,BROWN |
72656-20010-16 |
US $9.90 |
||
| replacement | |||||
|
72656
|
72656
72656-20010-C1
Button, Rear Seat Back Stop Release
[08.1979 - 07.1983] AE71,TE72..CP,LB DARK BROWN,BROWN |
72656-20010-C1 |
— | ||
|
72656A
|
72656A
72655-20020-01 Grommet, Rear Seat Back Stop ButtonREAR SEAT BACK STOP BUTTON [08.1979 - 07.1983] AE71,TE72..CP,LB BLACK,BLACK |
72655-20020-01 |
US $6.41 |
||
| replacement | |||||
|
72656A
|
72656A
72655-20020-11
Grommet, Rear Seat Back Stop Button
[08.1979 - 07.1983] AE71,TE72..CP,LB BLACK,BLACK |
72655-20020-11 |
— | ||
|
72656A
|
72656A
72655-20020-04 Grommet, Rear Seat Back Stop ButtonREAR SEAT BACK STOP BUTTON [08.1979 - 07.1983] AE71,TE72..CP,LB BLUE,BLUE |
72655-20020-04 |
US $6.41 |
||
| replacement | |||||
|
72656A
|
72656A
72655-20020-11
Grommet, Rear Seat Back Stop Button
[08.1979 - 07.1983] AE71,TE72..CP,LB BLUE,BLUE |
72655-20020-11 |
— | ||
|
72656A
|
72656A
72655-20020-16 Grommet, Rear Seat Back Stop ButtonREAR SEAT BACK STOP BUTTON [08.1979 - 07.1983] AE71,TE72..CP,LB DARK BROWN,BROWN |
72655-20020-16 |
US $6.41 |
||
| replacement | |||||
|
72656A
|
72656A
72655-20020-11
Grommet, Rear Seat Back Stop Button
[08.1979 - 07.1983] AE71,TE72..CP,LB DARK BROWN,BROWN |
72655-20020-11 |
— | ||
|
72693
|
72693
72693-12010 Hook, Rear Seat Cushion Lock[08.1981 - 07.1983] AE71,TE72..CP,HT,LB,SED |
72693-12010 |
US $8.88 |
||
|
9015960095
|
9015960095
90159-60095 New Genuine Part |
90159-60095 |
US $1.89 |
||
|
9038612010
|
9038612010
90386-12010
New Genuine Part
|
90386-12010 |
— | ||
|
9038908003
|
9038908003
90389-08003
Bush Or Spacer, Rear Seat Back Hinge
|
90389-08003 |
— | ||
|
9046308221
|
9046308221
90463-08221
New Genuine Part
|
90463-08221 |
— | ||
|
9165140616
|
9165140616
91651-40616 BOLT |
91651-40616 |
from US $0.80 |
||
| replacements | |||||
|
9165140616
|
9165140616
91621-60614 Bolt(For Transaxle & Engine Setting) |
91621-60614 |
from US $1.54 |
||
|
9165140616
|
9165140616
90080-11395 New Genuine Part |
90080-11395 |
US $2.73 |
||
|
9166140618
|
9166140618
91661-40618 New Genuine Part |
91661-40618 |
US $1.14 |
||
