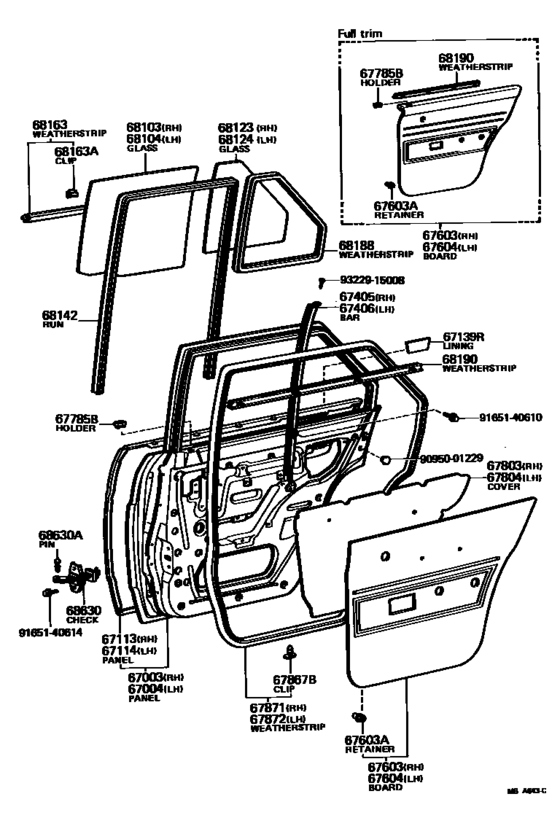

Rear Door Panel & Glass ([08.1979 - ] (7908- )4D) Diagram Toyota COROLLA
- Year
- 1982 - 1983
- Sales region
- U.S.A.
- Frame
- AE71
- grade
- DX
- body
- SED
- ENGINE
- 4AC
- TRANSMISSION
- MTM
- DESTINATION
- USA
- Model
- COROLLA
- From
- 08.1982
- To
- 07.1983
- Gear Shift Type
- 5F
- No.of Doors
- 4D
- Vehicle Model
- Corolla
Difficulties in parts search?
Difficulties in parts search?
| Description | OEM Part # | Price | |||
|---|---|---|---|---|---|
|
67003
|
67003
67003-12200 Panel Sub-Assy, Rear Door, RhREAR DOOR, RH [08.1979 - 07.1983] AE71,TE72..SED..4D |
67003-12200 |
US $697.42 |
||
|
67004
|
67004
67004-12200
Panel Sub-Assy, Rear Door, Lh
[08.1979 - 07.1983] AE71,TE72..SED..4D |
67004-12200 |
— | ||
|
67113
|
67113
67113-12090 Panel, Rear Door, Outer RhREAR DOOR, OUTER RH [08.1979 - 07.1983] AE71,TE72..4D |
67113-12090 |
US $282.46 |
||
|
67114
|
67114
67114-12090 Panel, Rear Door, Outer LhREAR DOOR, OUTER LH [08.1979 - 07.1983] AE71,TE72..4D |
67114-12090 |
US $282.46 |
||
|
67139R
|
67139R
67139-12020
Lining, Door Outside Panel Reinforcement
[07.1980 - 07.1983] AE71,TE72..4D |
67139-12020 |
— | ||
|
67405
|
67405
67407-12080 Bar Sub-Assy, Rear Door Window Division, RhREAR DOOR WINDOW DIVISION, RH [08.1979 - 07.1983] AE71,TE72..4D |
67407-12080 |
US $40.91 |
||
|
67406
|
67406
67408-12080
Bar Sub-Assy, Rear Door Window Division, Lh
[08.1979 - 07.1983] AE71,TE72..4D |
67408-12080 |
— | ||
|
67603
|
67603
67630-12201-01 Board Sub-Assy, Rear Door Trim, RhREAR DOOR TRIM, RH [08.1981 - 07.1983] AE71,TE72..SED..4D BLACK,BLACK |
67630-12201-01 |
US $235.87 |
||
|
67603
|
67603
67630-12201-04
Board Sub-Assy, Rear Door Trim, Rh
[08.1981 - 07.1983] AE71,TE72..SED..4D BLUE,BLUE |
67630-12201-04 |
— | ||
|
67603
|
67603
67630-12201-06 Board Sub-Assy, Rear Door Trim, RhREAR DOOR TRIM, RH [08.1981 - 07.1983] AE71,TE72..SED..4D LIGHT BROWN,BROWN |
67630-12201-06 |
US $235.87 |
||
|
67603
|
67603
67630-12201-08
Board Sub-Assy, Rear Door Trim, Rh
[08.1981 - 07.1983] AE71,TE72..SED..4D..USA IVORY,IVORY |
67630-12201-08 |
— | ||
|
67603
|
67603
67630-12211-01 Board Sub-Assy, Rear Door Trim, RhREAR DOOR TRIM, RH [08.1981 - 07.1983] AE71,TE72..SED..4D FULL TRIM,BLACK,BLACK |
67630-12211-01 |
US $230.05 |
||
| replacement | |||||
|
67603
|
67603
67630-12231-01
Board Sub-Assy, Rear Door Trim, Rh
[08.1981 - 07.1983] AE71,TE72..SED..4D FULL TRIM,BLACK,BLACK |
67630-12231-01 |
— | ||
|
67603
|
67603
67630-12211-04 Board Sub-Assy, Rear Door Trim, RhREAR DOOR TRIM, RH [08.1981 - 07.1983] AE71,TE72..SED..4D FULL TRIM,BLUE,BLUE |
67630-12211-04 |
US $230.05 |
||
| replacement | |||||
|
67603
|
67603
67630-12231-04
Board Sub-Assy, Rear Door Trim, Rh
[08.1981 - 07.1983] AE71,TE72..SED..4D FULL TRIM,BLUE,BLUE |
67630-12231-04 |
— | ||
|
67603
|
67603
67630-12211-06 Board Sub-Assy, Rear Door Trim, RhREAR DOOR TRIM, RH [08.1981 - 07.1983] AE71,TE72..SED..4D FULL TRIM,LIGHT BROWN,BROWN |
67630-12211-06 |
US $230.05 |
||
| replacement | |||||
|
67603
|
67603
67630-12231-06 Board Sub-Assy, Rear Door Trim, Rh[08.1981 - 07.1983] AE71,TE72..SED..4D FULL TRIM,LIGHT BROWN,BROWN |
67630-12231-06 |
US $320.32 |
||
|
67603
|
67603
67630-12211-08
Board Sub-Assy, Rear Door Trim, Rh
[08.1981 - 07.1983] AE71,TE72..SED..4D..USA FULL TRIM,IVORY,IVORY |
67630-12211-08 |
— | ||
|
67603A
|
67603A
67771-12010 Retainer, Door Trim[08.1979 - 07.1983] AE71,TE72..4D |
67771-12010 |
from US $1.74 |
||
|
67604
|
67604
67640-12201-01 Board Sub-Assy, Rear Door Trim, LhREAR DOOR TRIM, LH [08.1981 - 07.1983] AE71,TE72..SED..4D BLACK,BLACK |
67640-12201-01 |
US $235.87 |
||
|
67604
|
67604
67640-12201-04
Board Sub-Assy, Rear Door Trim, Lh
[08.1981 - 07.1983] AE71,TE72..SED..4D BLUE,BLUE |
67640-12201-04 |
— | ||
|
67604
|
67604
67640-12201-06 Board Sub-Assy, Rear Door Trim, LhREAR DOOR TRIM, LH [08.1981 - 07.1983] AE71,TE72..SED..4D LIGHT BROWN,BROWN |
67640-12201-06 |
US $235.87 |
||
|
67604
|
67604
67640-12201-08
Board Sub-Assy, Rear Door Trim, Lh
[08.1981 - 07.1983] AE71,TE72..SED..4D..USA IVORY,IVORY |
67640-12201-08 |
— | ||
|
67604
|
67604
67640-12211-01 Board Sub-Assy, Rear Door Trim, LhREAR DOOR TRIM, LH [08.1981 - 07.1983] AE71,TE72..SED..4D FULL TRIM,BLACK,BLACK |
67640-12211-01 |
US $230.05 |
||
| replacement | |||||
|
67604
|
67604
67640-12231-01
Board Sub-Assy, Rear Door Trim, Lh
[08.1981 - 07.1983] AE71,TE72..SED..4D FULL TRIM,BLACK,BLACK |
67640-12231-01 |
— | ||
|
67604
|
67604
67640-12211-04
Board Sub-Assy, Rear Door Trim, Lh
[08.1981 - 07.1983] AE71,TE72..SED..4D FULL TRIM,BLUE,BLUE |
67640-12211-04 |
— | ||
| replacement | |||||
|
67604
|
67604
67640-12231-04
Board Sub-Assy, Rear Door Trim, Lh
[08.1981 - 07.1983] AE71,TE72..SED..4D FULL TRIM,BLUE,BLUE |
67640-12231-04 |
— | ||
|
67604
|
67604
67640-12211-06 Board Sub-Assy, Rear Door Trim, LhREAR DOOR TRIM, LH [08.1981 - 07.1983] AE71,TE72..SED..4D FULL TRIM,LIGHT BROWN,BROWN |
67640-12211-06 |
US $230.05 |
||
| replacement | |||||
|
67604
|
67604
67640-12231-06 Board Sub-Assy, Rear Door Trim, Lh[08.1981 - 07.1983] AE71,TE72..SED..4D FULL TRIM,LIGHT BROWN,BROWN |
67640-12231-06 |
US $320.32 |
||
|
67604
|
67604
67640-12211-08
Board Sub-Assy, Rear Door Trim, Lh
[08.1981 - 07.1983] AE71,TE72..SED..4D..USA FULL TRIM,IVORY,IVORY |
67640-12211-08 |
— | ||
|
67785B
|
67785B
69751-20031-01
Holder, Front Door Locking Button Collar
[01.1981 - 07.1983] AE71,TE72..4D W/SEMI TRIM,BLACK,BLACK |
69751-20031-01 |
— | ||
| replacement | |||||
|
67785B
|
67785B
69751-20031-20 Holder, Door Locking(For Rear Door) BLACK[01.1981 - 07.1983] AE71,TE72..4D W/SEMI TRIM,BLACK,BLACK |
69751-20031-20 |
US $4.54 |
||
|
67785B
|
67785B
69751-20040 Holder, Front Door Locking Button Collar[08.1979 - 07.1983] AE71,TE72..4D..DX W/FULL TRIM |
69751-20040 |
US $5.60 |
||
|
67803
|
67803
67841-12120 Cover Sub-Assy, Rear Door Service Hole, RhREAR DOOR SERVICE HOLE, RH [08.1979 - 07.1983] AE71,TE72..4D |
67841-12120 |
US $5.24 |
||
|
67804
|
67804
67841-12120 Cover Sub-Assy, Rear Door Service Hole, RhREAR DOOR SERVICE HOLE, RH [08.1979 - 07.1983] AE71,TE72..4D |
67841-12120 |
US $5.24 |
||
|
67867B
|
67867B
67868-30040 Retainer, Roof Side Rail, Rh[08.1979 - 07.1983] AE71,TE72..4D |
67868-30040 |
US $1.76 |
||
|
67871
|
67871
67871-12110 Weatherstrip, Rear Door, RhREAR DOOR, RH [08.1979 - 07.1983] AE71,TE72..SED..4D |
67871-12110 |
US $99.01 |
||
|
67872
|
67872
67872-12110 Weatherstrip, Rear Door, LhREAR DOOR, LH [08.1979 - 07.1983] AE71,TE72..SED..4D |
67872-12110 |
US $99.01 |
||
|
68103
|
68103
68113-12100 Glass Sub-Assy, Rear Door, RhREAR DOOR, RH [08.1981 - 07.1983] AE71,TE72..SED..4D *TT,T=3.5 |
68113-12100 |
US $104.83 |
||
|
68104
|
68104
68114-12100 Glass Sub-Assy, Rear Door, LhREAR DOOR, LH [08.1981 - 07.1983] AE71,TE72..SED..4D *TT,T=3.5 |
68114-12100 |
US $104.83 |
||
|
68123
|
68123
68123-12140 Glass, Rear Door Window, RhREAR DOOR WINDOW, RH [08.1981 - 07.1983] AE71,TE72..SED..4D *TT,T=3.5 |
68123-12140 |
US $56.78 |
||
|
68124
|
68124
68124-12140 Glass, Rear Door Window, LhREAR DOOR WINDOW, LH [08.1981 - 07.1983] AE71,TE72..SED..4D *TT,T=3.5 |
68124-12140 |
US $56.78 |
||
|
68142
|
68142
68142-12040 Run, Rear Door GlassREAR DOOR GLASS [08.1979 - 07.1983] AE71,TE72..4D L=1829.5 |
68142-12040 |
US $26.35 |
||
|
68163
|
68163
68180-12040
Weatherstrip, Rear Door Glass, Outer
[08.1979 - 01.1983] AE71,TE72..4D |
68180-12040 |
— | ||
|
68163
|
68163
68180-12060
Weatherstrip, Rear Door Glass, Outer
[01.1983 - 07.1983] AE71..4D |
68180-12060 |
— | ||
|
68163A
|
68163A
68211-10030 Clip(For Front Door Glass Outer Weatherstrip)[08.1979 - 01.1983] AE71,TE72..4D |
68211-10030 |
from US $2.03 |
||
|
68163A
|
68163A
68211-12080 Clip(For Front Door Glass Outer Weatherstrip)[01.1983 - 07.1983] AE71..4D |
68211-12080 |
US $2.08 |
||
|
68188
|
68188
68188-12070
Weatherstrip, Rear Door Quarter Window, Rh
[08.1979 - 07.1983] AE71,TE72..SED..4D RH |
68188-12070 |
— | ||
|
68188
|
68188
68189-12070
Weatherstrip, Rear Door Quarter Window, Lh
[08.1979 - 07.1983] AE71,TE72..SED..4D LH |
68189-12070 |
— | ||
|
68190
|
68190
68190-12060 Weatherstrip Assy, Rear Door Glass, InnerREAR DOOR GLASS, INNER [08.1979 - 07.1983] AE71,TE72..4D..DX W/FULL TRIM |
68190-12060 |
US $33.63 |
||
|
68190
|
68190
68190-12070 Weatherstrip Assy, Rear Door Glass, InnerREAR DOOR GLASS, INNER [08.1979 - 07.1983] AE71,TE72..4D |
68190-12070 |
US $22.42 |
||
|
68630
|
68630
68630-12011 Check Assy, Rear DoorREAR DOOR [01.1981 - 07.1983] AE71,TE72..4D |
68630-12011 |
US $52.27 |
||
|
68630A
|
68630A
68617-22010
Pin(For Front Door Check)
[08.1979 - 07.1983] AE71,TE72..4D |
68617-22010 |
— | ||
| replacement | |||||
|
68630A
|
68630A
68617-90A01 Pin(For Front Door Check)[08.1979 - 07.1983] AE71,TE72..4D |
68617-90A01 |
US $4.80 |
||
|
9095001229
|
9095001229
90950-01229 Plug, Hole(For Rear Door Panel) |
90950-01229 |
US $3.14 |
||
|
9165140610
|
9165140610
91651-40610 RIVET |
91651-40610 |
US $2.56 |
||
|
9165140614
|
9165140614
91651-40614 Bolt |
91651-40614 |
from US $0.78 |
||
|
9322915008
|
9322915008
93229-15008 SCREW |
93229-15008 |
US $1.28 |
||
