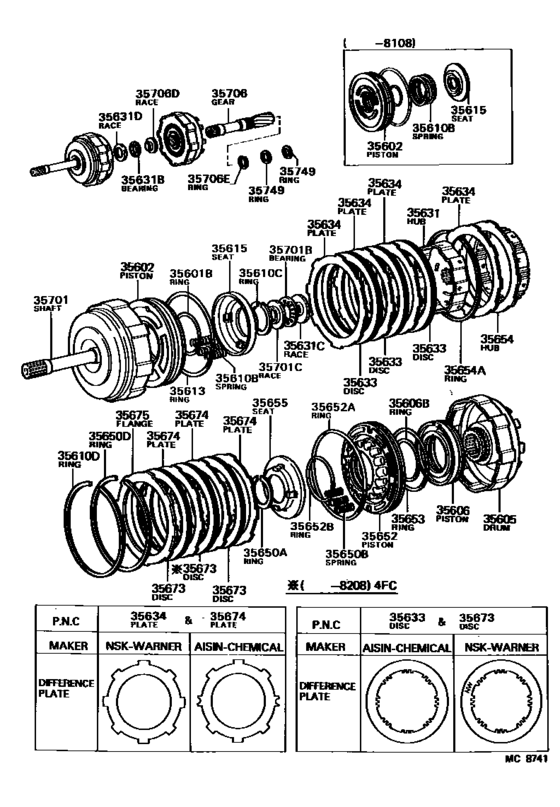

Brake Band & Multiple Disc Clutch (Atm) ([01.1981 - ] (8101- )ATM) Diagram Toyota COROLLA
- Year
- 1982 - 1983
- Sales region
- U.S.A.
- Frame
- AE71
- grade
- DX
- body
- HT
- ENGINE
- 4AC
- TRANSMISSION
- ATM
- DESTINATION
- CND
- Model
- COROLLA
- From
- 08.1982
- To
- 07.1983
- Gear Shift Type
- 3FC
- No.of Doors
- 2D
- Vehicle Model
- Corolla
Difficulties in parts search?
Difficulties in parts search?
| Description | OEM Part # | Price | |||
|---|---|---|---|---|---|
|
35601B
|
35601B
90301-57188 Ring, O (For Underdrive Clutch Piston)[08.1979 - 07.1983] AE71,TE72..ATM |
90301-57188 |
US $10.08 |
||
| replacement | |||||
|
35601B
|
35601B
90301-56007 Ring, O (For Underdrive Clutch Piston)[08.1979 - 07.1983] AE71,TE72..ATM |
90301-56007 |
US $2.72 |
||
|
35602
|
35602
35602-12031 Piston Sub-Assy, Front Clutch[08.1981 - 07.1983] AE71,TE72..ATM |
35602-12031 |
US $72.80 |
||
|
35605
|
35605
35605-30021
Drum Sub-Assy, Rear Clutch W/2Nd Sun Gear
[08.1981 - 07.1983] AE71,TE72..3FC |
35605-30021 |
— | ||
|
35606
|
35606
35606-22010
Piston Sub-Assy, Rear Clutch
[08.1979 - 07.1983] AE71,TE72..ATM |
35606-22010 |
— | ||
|
35606B
|
35606B
90301-57188 Ring, O (For Underdrive Clutch Piston)[08.1979 - 07.1983] AE71,TE72..ATM |
90301-57188 |
US $10.08 |
||
| replacement | |||||
|
35606B
|
35606B
90301-56007 Ring, O (For Underdrive Clutch Piston)[08.1979 - 07.1983] AE71,TE72..ATM |
90301-56007 |
US $2.72 |
||
|
35610B
|
35610B
90501-10671 Spring, Compression (For Overdrive Direct Clutch)[08.1981 - 07.1983] AE71,TE72..ATM |
90501-10671 |
US $2.48 |
||
|
35610C
|
35610C
90520-39261
Ring, Shaft Snap (For Front Clutch Piston Return Spring)
[08.1979 - 07.1983] AE71,TE72..ATM |
90520-39261 |
— | ||
|
35610D
|
35610D
90521-99139
Ring, Hole Snap (For Overdrive Brake Return Spring Seat)
[08.1979 - 07.1983] AE71,TE72..ATM |
90521-99139 |
— | ||
|
35613
|
35613
90301-99016 Ring, O (For Overdrive Direct Clutch Piston)[08.1981 - 07.1983] AE71,TE72..ATM |
90301-99016 |
US $12.80 |
||
|
35615
|
35615
35615-30020 Seat, Clutch Piston Return Spring[08.1981 - 07.1983] AE71,TE72..ATM |
35615-30020 |
US $5.97 |
||
|
35631
|
35631
35631-22010 Hub, Clutch(For Multiple Disc Clutch)[08.1979 - 07.1983] AE71,TE72..ATM |
35631-22010 |
US $103.38 |
||
| replacement | |||||
|
35631
|
35631
35631-30050 Hub, Clutch(For Multiple Disc Clutch)[08.1979 - 07.1983] AE71,TE72..ATM |
35631-30050 |
US $87.36 |
||
|
35631
|
35631
35631-30040 Hub, Clutch(For Multiple Disc Clutch)[07.1983 - 07.1983] AE71 |
35631-30040 |
US $88.82 |
||
| replacement | |||||
|
35631
|
35631
35631-30050 Hub, Clutch(For Multiple Disc Clutch)[07.1983 - 07.1983] AE71 |
35631-30050 |
US $87.36 |
||
|
35631B
|
35631B
90374-28014 Bearing, Thrust Needle Roller(For Overdrive)[08.1979 - 07.1983] AE71,TE72..ATM |
90374-28014 |
US $4.89 |
||
|
35631C
|
35631C
35789-22050 Race, Thrust Bearing (For Rear Planetary Ring Gear Front)[08.1979 - 07.1983] AE71,TE72..ATM |
35789-22050 |
US $8.91 |
||
|
35631D
|
35631D
35789-22020 Race, Thrust Bearing (For Rear Planetary Ring Gear Rear)[08.1979 - 07.1983] AE71,TE72..ATM |
35789-22020 |
US $8.91 |
||
|
35633
|
35633
35677-22020 Disc, Clutch (For Overdrive)[08.1982 - 07.1983] AE71..ATM NSK-WARNER |
35677-22020 |
US $47.17 |
||
| replacement | |||||
|
35633
|
35633
35677-30160 Disc, Clutch (For Overdrive)[08.1982 - 07.1983] AE71..ATM NSK-WARNER |
35677-30160 |
from US $38.16 |
||
|
35633
|
35633
35677-22030 Disc, Clutch (For Brake)[08.1982 - 07.1983] AE71..3FC AISIN CHEMICAL |
35677-22030 |
US $42.52 |
||
| replacement | |||||
|
35633
|
35633
35677-30160 Disc, Clutch (For Overdrive)[08.1982 - 07.1983] AE71..3FC AISIN CHEMICAL |
35677-30160 |
from US $38.16 |
||
|
35633
|
35633
35677-22050 Disc, Clutch (For Brake)[07.1983 - 07.1983] AE71..3FC |
35677-22050 |
US $36.84 |
||
| replacement | |||||
|
35633
|
35633
35677-30160 Disc, Clutch (For Overdrive)[07.1983 - 07.1983] AE71..3FC |
35677-30160 |
from US $38.16 |
||
|
35634
|
35634
35634-22040 Plate, Clutch (For Overdrive)[08.1982 - 07.1983] AE71..ATM T=1.8,NSK-WARNER |
35634-22040 |
US $18.90 |
||
|
35634
|
35634
35634-22070 Plate, Front Clutch[08.1979 - 07.1983] AE71,TE72..3FC T=1.8,AISIN CHEMICAL |
35634-22070 |
US $35.24 |
||
| replacement | |||||
|
35634
|
35634
35634-22040 Plate, Clutch (For Overdrive)[08.1979 - 07.1983] AE71,TE72..3FC T=1.8,AISIN CHEMICAL |
35634-22040 |
US $18.90 |
||
|
35650A
|
35650A
90520-39261
Ring, Shaft Snap (For Front Clutch Piston Return Spring)
[08.1979 - 07.1983] AE71,TE72..ATM |
90520-39261 |
— | ||
|
35650B
|
35650B
90501-10671 Spring, Compression (For Overdrive Direct Clutch)[01.1981 - 07.1983] AE71,TE72..ATM |
90501-10671 |
US $2.48 |
||
|
35650D
|
35650D
90521-99139
Ring, Hole Snap (For Overdrive Brake Return Spring Seat)
[08.1979 - 07.1983] AE71,TE72..ATM |
90521-99139 |
— | ||
|
35652
|
35652
35602-12031 Piston Sub-Assy, Front Clutch[08.1981 - 07.1983] AE71,TE72..3FC |
35602-12031 |
US $72.80 |
||
|
35652A
|
35652A
90301-99016 Ring, O (For Overdrive Direct Clutch Piston)[08.1981 - 07.1983] AE71,TE72..ATM |
90301-99016 |
US $12.80 |
||
|
35652B
|
35652B
90301-57188 Ring, O (For Underdrive Clutch Piston)[08.1979 - 07.1983] AE71,TE72..ATM |
90301-57188 |
US $10.08 |
||
| replacement | |||||
|
35652B
|
35652B
90301-56007 Ring, O (For Underdrive Clutch Piston)[08.1979 - 07.1983] AE71,TE72..ATM |
90301-56007 |
US $2.72 |
||
|
35653
|
35653
90301-84184
Ring, O (For Transfer Low Speed Brake Piston)
[08.1979 - 07.1983] AE71,TE72..ATM |
90301-84184 |
— | ||
| replacement | |||||
|
35653
|
35653
90301-83001 Ring, O (For Rear Clutch Piston)[08.1979 - 07.1983] AE71,TE72..ATM |
90301-83001 |
US $5.68 |
||
|
35654
|
35654
35654-22010 Hub, Rear Clutch[08.1979 - 07.1983] AE71,TE72..ATM |
35654-22010 |
US $117.94 |
||
|
35654A
|
35654A
90521-99146
Ring, Hole Snap, No.1 (For Overdrive)
[08.1979 - 07.1983] AE71,TE72..ATM |
90521-99146 |
— | ||
|
35655
|
35655
35615-30020 Seat, Clutch Piston Return Spring[01.1981 - 07.1983] AE71,TE72..ATM |
35615-30020 |
US $5.97 |
||
|
35673
|
35673
35677-22020 Disc, Clutch (For Overdrive)[08.1982 - 07.1983] AE71..ATM NSK-WARNER |
35677-22020 |
US $47.17 |
||
| replacement | |||||
|
35673
|
35673
35677-30160 Disc, Clutch (For Overdrive)[08.1982 - 07.1983] AE71..ATM NSK-WARNER |
35677-30160 |
from US $38.16 |
||
|
35673
|
35673
35677-22030 Disc, Clutch (For Brake)[08.1982 - 07.1983] AE71..3FC |
35677-22030 |
US $42.52 |
||
| replacement | |||||
|
35673
|
35673
35677-30160 Disc, Clutch (For Overdrive)[08.1982 - 07.1983] AE71..3FC |
35677-30160 |
from US $38.16 |
||
|
35673
|
35673
35677-22050 Disc, Clutch (For Brake)[07.1983 - 07.1983] AE71..3FC |
35677-22050 |
US $36.84 |
||
| replacement | |||||
|
35673
|
35673
35677-30160 Disc, Clutch (For Overdrive)[07.1983 - 07.1983] AE71..3FC |
35677-30160 |
from US $38.16 |
||
|
35674
|
35674
35634-22040 Plate, Clutch (For Overdrive)[08.1982 - 07.1983] AE71..ATM T=1.8,NSK-WARNER |
35634-22040 |
US $18.90 |
||
|
35674
|
35674
35634-22070 Plate, Front Clutch[08.1979 - 07.1983] AE71,TE72..3FC AISIN CHEMICAL |
35634-22070 |
US $35.24 |
||
| replacement | |||||
|
35674
|
35674
35634-22040 Plate, Clutch (For Overdrive)[08.1979 - 07.1983] AE71,TE72..3FC AISIN CHEMICAL |
35634-22040 |
US $18.90 |
||
|
35675
|
35675
35675-22010
Flange, Overdrive Clutch
[08.1979 - 07.1983] AE71,TE72..3FC T=4.0 |
35675-22010 |
— | ||
| replacement | |||||
|
35675
|
35675
35675-22140
Flange, Overdrive Clutch
[08.1979 - 07.1983] AE71,TE72..3FC T=4.0 |
35675-22140 |
— | ||
|
35701
|
35701
35701-12020 Shaft Sub-Assy, InputINPUT [08.1982 - 07.1983] AE71..3FC |
35701-12020 |
US $394.58 |
||
|
35701B
|
35701B
90374-23012 Bearing, Thrust Needle Roller(For Overdrive Planetary Gear)[08.1979 - 07.1983] AE71,TE72..ATM |
90374-23012 |
US $5.42 |
||
|
35701C
|
35701C
35789-22010 Race, Thrust Bearing(For Overdrive Planetary Gear)[08.1979 - 07.1983] AE71,TE72..ATM |
35789-22010 |
US $6.99 |
||
|
35706
|
35706
35706-22011 Gear Sub-Assy, Planetary Sun[01.1981 - 07.1983] AE71,TE72..3FC |
35706-22011 |
US $225.68 |
||
|
35706D
|
35706D
35789-22030 Race, Thrust Bearing(For Overdrive)[08.1979 - 07.1983] AE71,TE72..ATM |
35789-22030 |
US $8.21 |
||
|
35706E
|
35706E
90520-34260 Ring, Shaft Snap (For Sun Gear Front)[08.1979 - 07.1983] AE71,TE72..3FC |
90520-34260 |
US $3.20 |
||
|
35749
|
35749
35749-22010 Ring, Sun Gear Shaft Oil Seal[08.1979 - 07.1983] AE71,TE72..ATM |
35749-22010 |
US $12.75 |
||
