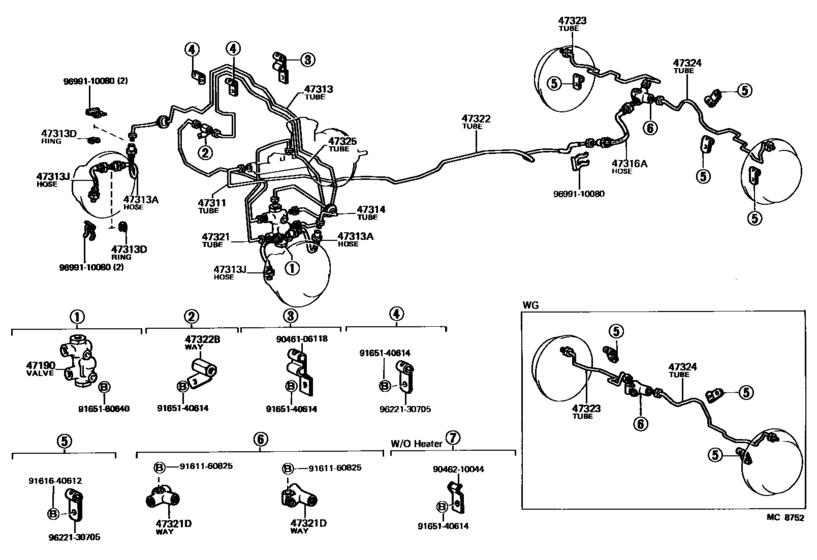

Brake Tube & Clamp ([08.1982 - ] (8208- )) Diagram Toyota COROLLA
- Year
- 1982 - 1983
- Sales region
- U.S.A.
- Frame
- AE71
- grade
- DX
- body
- HT
- ENGINE
- 4AC
- TRANSMISSION
- ATM
- DESTINATION
- CND
- Model
- COROLLA
- From
- 08.1982
- To
- 07.1983
- Gear Shift Type
- 3FC
- No.of Doors
- 2D
- Vehicle Model
- Corolla
Difficulties in parts search?
Difficulties in parts search?
| Description | OEM Part # | Price | |||
|---|---|---|---|---|---|
|
47190
|
47190
47190-22040
Valve Assy, Proportioning & By-Pass
[08.1982 - 07.1983] AE71 |
47190-22040 |
— | ||
|
47311
|
47311
47312-12120 Tube, Front Brake, No.1FRONT BRAKE, NO.1 [08.1982 - 07.1983] AE71 |
47312-12120 |
US $7.86 |
||
|
47313
|
47313
47314-12180
Tube, Front Brake, No.3
[08.1982 - 07.1983] AE71 |
47314-12180 |
— | ||
|
47313A
|
47313A
90947-02403
Hose, Flexible, No.1(For Front)
[08.1979 - 07.1983] AE71,TE72 |
90947-02403 |
— | ||
|
47313D
|
47313D
96160-01200 Ring, E(For Clutch Release Cable)[08.1979 - 07.1983] AE71,TE72 |
96160-01200 |
from US $1.60 |
||
|
47313J
|
47313J
96960-32305
Hose, Flexible, No.2(For Front)
[08.1979 - 07.1983] AE71,TE72 |
96960-32305 |
— | ||
|
47314
|
47314
47315-12320 Tube, Front Brake, No.4FRONT BRAKE, NO.5 [08.1982 - 07.1983] AE71 |
47315-12320 |
US $9.17 |
||
|
47316A
|
47316A
96940-32805 Hose, Flexible, No.1(For Front)[08.1979 - 07.1983] AE71,TE72..CP,HT,LB,SED |
96940-32805 |
US $18.09 |
||
|
47321
|
47321
47322-12100 Tube, Rear Brake, No.1REAR BRAKE, NO.1 [08.1982 - 07.1983] AE71 |
47322-12100 |
US $12.23 |
||
|
47321D
|
47321D
90413-10098 Way, No.2(For Rear Brake Tube)[08.1979 - 07.1983] AE71,TE72..CP,HT,LB,SED |
90413-10098 |
US $17.63 |
||
|
47322
|
47322
47323-12070
Tube, Rear Brake, No.2
[08.1979 - 07.1983] AE71,TE72..CP,HT,LB,SED |
47323-12070 |
— | ||
| replacement | |||||
|
47322
|
47322
47323-12050
Tube, Rear Brake, No.2
[08.1979 - 07.1983] AE71,TE72..CP,HT,LB,SED |
47323-12050 |
— | ||
|
47322B
|
47322B
90412-10001 Way, No.1(For Rear Brake Tube)NO.1(FOR REAR BRAKE TUBE) [08.1982 - 07.1983] AE71 |
90412-10001 |
US $8.59 |
||
|
47323
|
47323
47324-12040 Tube, Rear Brake, No.3REAR BRAKE, NO.3 [08.1979 - 07.1983] AE71,TE72..CP,HT,LB,SED |
47324-12040 |
US $19.95 |
||
| replacement | |||||
|
47323
|
47323
47324-12130 Tube, Rear Brake, No.4REAR BRAKE, NO.3 [08.1979 - 07.1983] AE71,TE72..CP,HT,LB,SED |
47324-12130 |
US $19.80 |
||
|
47324
|
47324
47325-12050 Tube, Rear Brake, No.4REAR BRAKE, NO.4 [08.1979 - 07.1983] AE71,TE72..CP,HT,LB,SED |
47325-12050 |
US $21.99 |
||
| replacement | |||||
|
47324
|
47324
47325-12130 Tube, Rear Brake, No.5REAR BRAKE, NO.4 [08.1979 - 07.1983] AE71,TE72..CP,HT,LB,SED |
47325-12130 |
US $20.68 |
||
|
47325
|
47325
47326-12010 Tube, Rear Brake, No.5REAR BRAKE, NO.5 [08.1982 - 07.1983] AE71 |
47326-12010 |
US $29.12 |
||
|
9046106118
|
9046106118
90461-06118 New Genuine Part |
90461-06118 |
US $4.22 |
||
|
9046210044
|
9046210044
90462-10044 New Genuine Part |
90462-10044 |
US $2.77 |
||
|
9161160825
|
9161160825
91611-60825
Bolt(For Head To Camshaft Bearing Cap)
|
91611-60825 |
— | ||
| replacement | |||||
|
9161160825
|
9161160825
91611-B0825 Bolt(For Clutch Release Cylinder Setting) |
91611-B0825 |
from US $1.93 |
||
|
9161640612
|
9161640612
91616-40612
Bolt(For Dust Cover To Steering Knuckle Arm Setting)
|
91616-40612 |
— | ||
| replacement | |||||
|
9161640612
|
9161640612
91611-G0612 Bolt |
91611-G0612 |
from US $0.82 |
||
|
9165140614
|
9165140614
91651-40614 Bolt |
91651-40614 |
from US $2.05 |
||
|
9165160640
|
9165160640
91651-60640
Bolt, Rear Body Mounting
|
91651-60640 |
— | ||
| replacement | |||||
|
9165160640
|
9165160640
91651-B0640 Bolt, Rear Body Mounting |
91651-B0640 |
US $1.28 |
||
|
9622130705
|
9622130705
96221-30705 Clamp, Brake Tube, No.4 |
96221-30705 |
US $3.52 |
||
|
9699110080
|
9699110080
96991-10080 CLIP |
96991-10080 |
from US $1.35 |
||
