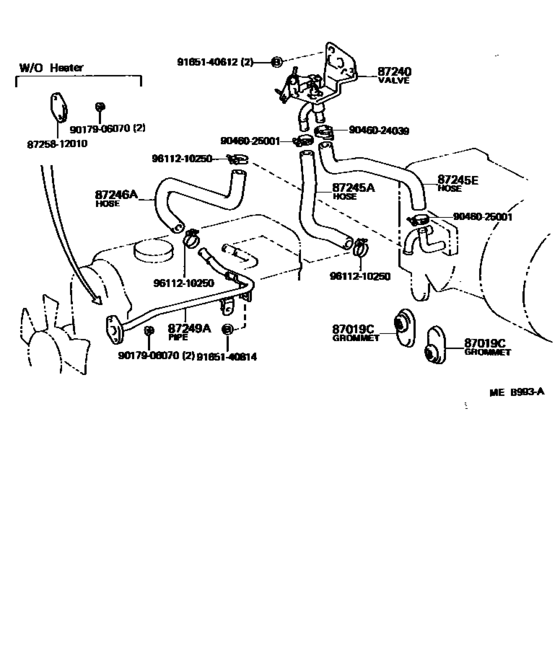

Heating & Air Conditioning - Water Piping ([08.1982 - ] (8208- )) Diagram Toyota COROLLA
- Year
- 1982 - 1983
- Sales region
- U.S.A.
- Frame
- AE71
- grade
- DX
- body
- HT
- ENGINE
- 4AC
- TRANSMISSION
- ATM
- DESTINATION
- CND
- Model
- COROLLA
- From
- 08.1982
- To
- 07.1983
- Gear Shift Type
- 3FC
- No.of Doors
- 2D
- Vehicle Model
- Corolla
Difficulties in parts search?
Difficulties in parts search?
| Description | OEM Part # | Price | |||
|---|---|---|---|---|---|
|
87019C
|
87019C
90480-01015
Grommet, Heater Hose
[08.1979 - 07.1983] AE71,TE72 |
90480-01015 |
— | ||
|
87240
|
87240
87240-12180
Valve Assy, Heater Water
[08.1982 - 07.1983] AE71 |
87240-12180 |
— | ||
|
87245A
|
87245A
87245-12630
Hose, Heater Water, Inlet A
[08.1982 - 07.1983] AE71 |
87245-12630 |
— | ||
|
87245E
|
87245E
87245-12640
Hose, Heater Water, Inlet E
[08.1982 - 07.1983] AE71 |
87245-12640 |
— | ||
|
87246A
|
87246A
87245-12620
Hose, Heater Water, Outlet A
[08.1982 - 07.1983] AE71 |
87245-12620 |
— | ||
|
87249A
|
87249A
87208-12020
Pipe, Heater Water Outlet, A
[08.1982 - 07.1983] AE71 |
87208-12020 |
— | ||
|
8725812010
|
8725812010
87258-12010
New Genuine Part
|
87258-12010 |
— | ||
|
9017906070
|
9017906070
90179-06070
Nut(For Steering Inter Shaft Dust Seal Cover)
|
90179-06070 |
— | ||
| replacement | |||||
|
9017906070
|
9017906070
90179-06159 Nut, Rear Wiper Link Pivot, No.1 |
90179-06159 |
from US $0.59 |
||
|
9046024039
|
9046024039
90460-24039 Clamp Or Clip, Hose(For Oil Cooler Hose) |
90460-24039 |
US $1.54 |
||
| replacement | |||||
|
9046024039
|
9046024039
90467-21010 Clip(For Ventilation Hose No.2) |
90467-21010 |
from US $5.85 |
||
|
9046025001
|
9046025001
90460-25001
New Genuine Part
|
90460-25001 |
— | ||
|
9165140612
|
9165140612
91651-40612 BOLT |
91651-40612 |
US $1.12 |
||
| replacement | |||||
|
9165140612
|
9165140612
90080-11225 New Genuine Part |
90080-11225 |
US $2.31 |
||
|
9165140814
|
9165140814
91651-40814 BOLT |
91651-40814 |
from US $2.88 |
||
| replacement | |||||
|
9165140814
|
9165140814
90080-11228 New Genuine Part |
90080-11228 |
US $3.20 |
||
|
9611210250
|
9611210250
96112-10250 Clamp Or Clip, Hose(For Oil Cooler Hose) |
96112-10250 |
from US $2.36 |
||
