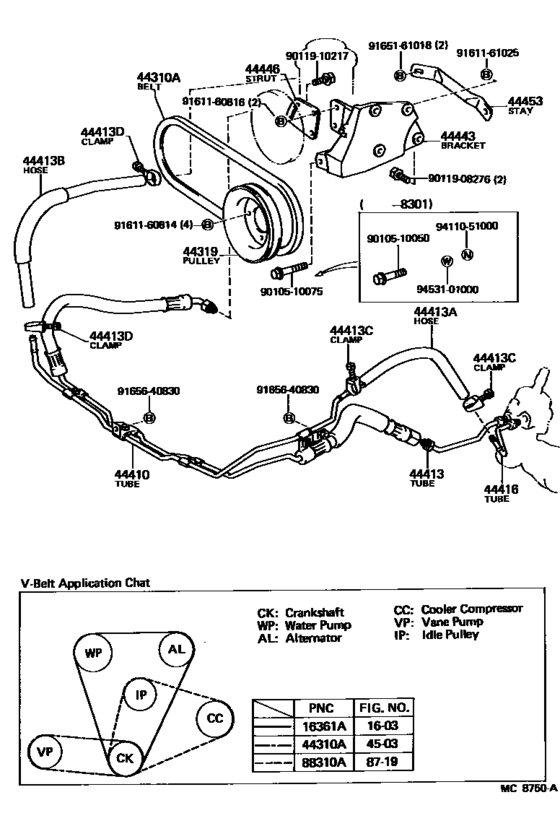

Power Steering Tube ([08.1982 - ] (8208- )DX) Diagram Toyota COROLLA
- Year
- 1982 - 1983
- Sales region
- U.S.A.
- Frame
- AE71
- grade
- DX
- body
- HT
- ENGINE
- 4AC
- TRANSMISSION
- ATM
- DESTINATION
- CND
- Model
- COROLLA
- From
- 08.1982
- To
- 07.1983
- Gear Shift Type
- 3FC
- No.of Doors
- 2D
- Vehicle Model
- Corolla
Difficulties in parts search?
Difficulties in parts search?
| Description | OEM Part # | Price | |||
|---|---|---|---|---|---|
|
16361A
|
16361A
90916-02126 Belt, V(For Fan & Alternator)V(FOR FAN & ALTERNATOR) [08.1982 - 07.1983] 4AC..AE71 |
90916-02126 |
US $33.49 |
||
|
44310A
|
44310A
99332-00805 Belt, V(For Vane Pump)[08.1982 - 07.1983] AE71..DX |
99332-00805 |
US $15.43 |
||
|
44319
|
44319
44319-12011 Pulley, Vane Pump Drive[08.1982 - 07.1983] AE71..DX |
44319-12011 |
US $104.83 |
||
|
44410
|
44410
44410-12030 Tube Assy, Pressure FeedPRESSURE FEED [08.1982 - 07.1983] AE71..DX |
44410-12030 |
US $476.11 |
||
|
44413
|
44413
44413-12030 Tube, Pressure Feed, No.1PRESSURE FEED, NO.1 [08.1982 - 07.1983] AE71..DX |
44413-12030 |
US $33.05 |
||
|
44413A
|
44413A
90445-18115
Hose(For Return Tube Outlet)
[08.1982 - 07.1983] AE71..DX |
90445-18115 |
— | ||
|
44413B
|
44413B
90445-18116
Hose(For Reservoir Tank Inlet)
[08.1982 - 07.1983] AE71..DX |
90445-18116 |
— | ||
|
44413C
|
44413C
90460-01001 Clamp, Oil Cooler Hose[08.1982 - 07.1983] AE71..DX |
90460-01001 |
US $9.28 |
||
|
44413D
|
44413D
90460-01001 Clamp, Oil Cooler Hose[08.1982 - 07.1983] AE71..DX |
90460-01001 |
US $9.28 |
||
|
44416
|
44416
44416-12030
Tube, Return(For Steering Gear Outlet)
[08.1982 - 07.1983] AE71..DX |
44416-12030 |
— | ||
|
44443
|
44443
44443-12021 Bracket, Pump[08.1982 - 07.1983] AE71..DX |
44443-12021 |
US $182 |
||
|
44446
|
44446
44446-12011 Strut, Adjusting[08.1982 - 07.1983] AE71..DX |
44446-12011 |
US $8.30 |
||
|
44453
|
44453
44453-12010 Stay, Pump, Front[08.1982 - 07.1983] AE71..DX |
44453-12010 |
US $11.50 |
||
|
9010510050
|
9010510050
90105-10050 New Genuine Part |
90105-10050 |
US $4.95 |
||
|
9010510075
|
9010510075
90105-10075 Bolt(For Alternator) |
90105-10075 |
from US $1.56 |
||
|
9011908276
|
9011908276
90119-08276
New Genuine Part
|
90119-08276 |
— | ||
| replacement | |||||
|
9011908276
|
9011908276
90119-08336 BOLT |
90119-08336 |
US $2.56 |
||
|
9011910217
|
9011910217
90119-10217 Bolt, No.1 (For Center Support Bearing) |
90119-10217 |
US $3.68 |
||
|
9161160814
|
9161160814
91611-60814 Bolt |
91611-60814 |
from US $0.80 |
||
|
9161160816
|
9161160816
91611-60816
Screw Or Bolt(For Valve Rocker Shaft Lock)
|
91611-60816 |
— | ||
| replacement | |||||
|
9161160816
|
9161160816
91611-B0816 Bolt |
91611-B0816 |
from US $1.09 |
||
|
9161161025
|
9161161025
91611-61025
Bolt(For Transaxle & Engine Setting)
|
91611-61025 |
— | ||
| replacement | |||||
|
9161161025
|
9161161025
91612-61025 Bolt (For Control Shaft Cover) |
91612-61025 |
from US $1.13 |
||
|
9165161018
|
9165161018
91651-61018 New Genuine Part |
91651-61018 |
US $1.89 |
||
|
9165640830
|
9165640830
91656-40830 Bolt (For Transfer Power Take-Off Cover) |
91656-40830 |
US $2.18 |
||
| replacement | |||||
|
9165640830
|
9165640830
91651-60830 Bolt (For Transfer Power Take-Off Cover) |
91651-60830 |
US $1.44 |
||
|
9411051000
|
9411051000
94110-51000 Nut(For Steering Center Arm) |
94110-51000 |
from US $2.08 |
||
|
9453101000
|
9453101000
94531-01000 WASHER |
94531-01000 |
from US $1.44 |
||
