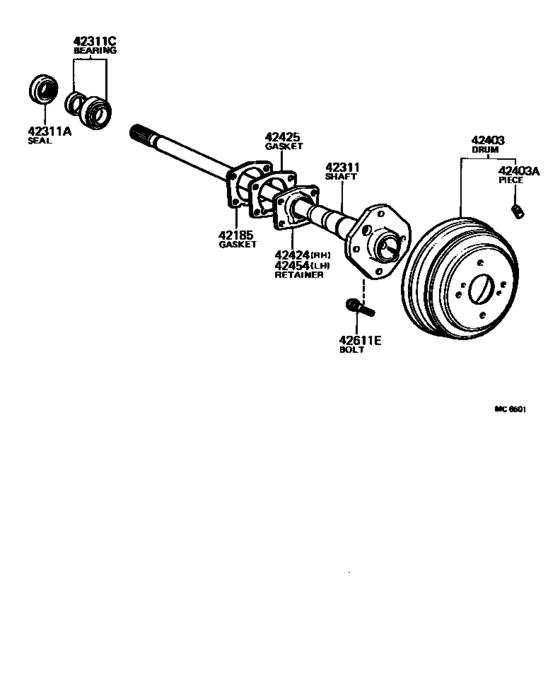

Rear Axle Shaft & Hub ([08.1979 - ] (7908- )) Diagram Toyota COROLLA
- Year
- 1982 - 1983
- Sales region
- U.S.A.
- Frame
- AE71
- grade
- DX
- body
- HT
- ENGINE
- 4AC
- TRANSMISSION
- ATM
- DESTINATION
- CND
- Model
- COROLLA
- From
- 08.1982
- To
- 07.1983
- Gear Shift Type
- 3FC
- No.of Doors
- 2D
- Vehicle Model
- Corolla
Difficulties in parts search?
Difficulties in parts search?
| Description | OEM Part # | Price | |||
|---|---|---|---|---|---|
|
42185
|
42185
42185-12010
Gasket, Rear Axle Housing End
[08.1979 - 07.1983] AE71,TE72..CP,HT,LB,SED |
42185-12010 |
— | ||
| replacement | |||||
|
42185
|
42185
42185-52030 Gasket, Rear Axle Housing End[08.1979 - 07.1983] AE71,TE72..CP,HT,LB,SED |
42185-52030 |
US $9.44 |
||
|
42311
|
42311
42311-12080
Shaft, Rear Axle
[08.1979 - 07.1983] AE71,TE72 |
42311-12080 |
— | ||
|
42311A
|
42311A
90311-42055 Seal, Oil (For Rear Axle Shaft)[08.1979 - 07.1983] AE71,TE72 |
90311-42055 |
from US $4.32 |
||
|
42311C
|
42311C
04421-12010
Bearing Kit, Rear Axle Shaft
[08.1979 - 07.1983] AE71,TE72..CP,HT,LB,SED |
04421-12010 |
— | ||
| replacement | |||||
|
42311C
|
42311C
04421-12011 Bearing Kit, Rear Axle Shaft[08.1979 - 07.1983] AE71,TE72..CP,HT,LB,SED |
04421-12011 |
from US $34.50 |
||
|
42403
|
42403
42431-12060 Drum Sub-Assy, Rear Brake[08.1979 - 09.1982] AE71,TE72 |
42431-12060 |
US $176.18 |
||
| replacement | |||||
|
42403
|
42403
42431-14061 Drum Sub-Assy, Rear Brake[08.1979 - 09.1982] AE71,TE72 |
42431-14061 |
US $171.36 |
||
|
42403
|
42403
42431-12081 Drum Sub-Assy, Rear BrakeREAR BRAKE [09.1982 - 07.1983] AE71 |
42431-12081 |
US $187.82 |
||
|
42403A
|
42403A
90937-01020 Piece, Balance (For Rear Brake Drum)[09.1982 - 07.1983] AE71 20G |
90937-01020 |
US $4.51 |
||
|
42403A
|
42403A
90937-01021 Piece, Balance (For Rear Brake Drum)[09.1982 - 07.1983] AE71 40G |
90937-01021 |
US $4.51 |
||
|
42403A
|
42403A
90937-01023
Piece, Balance (For Rear Brake Drum)
[09.1982 - 07.1983] AE71 10G |
90937-01023 |
— | ||
|
42403A
|
42403A
90937-01032
Piece, Balance (For Rear Brake Drum)
[09.1982 - 07.1983] AE71 30G |
90937-01032 |
— | ||
|
42403A
|
42403A
90937-01033
Piece, Balance (For Rear Brake Drum)
[09.1982 - 07.1983] AE71 50G |
90937-01033 |
— | ||
|
42403A
|
42403A
90937-01034
Piece, Balance (For Rear Brake Drum)
[09.1982 - 07.1983] AE71 60G |
90937-01034 |
— | ||
|
42403A
|
42403A
90937-01117 Piece, Balance (For Rear Brake Drum)[08.1979 - 09.1982] AE71,TE72 10G,10G |
90937-01117 |
US $1.14 |
||
|
42403A
|
42403A
90937-01118 Piece, Balance (For Rear Brake Drum)[08.1979 - 09.1982] AE71,TE72 20G,20G |
90937-01118 |
US $1.05 |
||
|
42403A
|
42403A
90937-01119 Piece, Balance (For Rear Brake Drum)[08.1979 - 09.1982] AE71,TE72 30G,30G |
90937-01119 |
US $1.05 |
||
|
42403A
|
42403A
90937-01195 Piece, Balance (For Rear Brake Drum)[08.1979 - 03.1987] AE71,TE72 40G,40G |
90937-01195 |
US $1.31 |
||
|
42403A
|
42403A
90937-01196 Piece, Balance (For Rear Brake Drum)[08.1979 - 03.1987] AE71,TE72 50G,50G |
90937-01196 |
US $1.49 |
||
|
42403A
|
42403A
90937-01197 Piece, Balance (For Rear Brake Drum)[08.1979 - 03.1987] AE71,TE72 60G,60G |
90937-01197 |
US $3.64 |
||
|
42424
|
42424
42424-20010 Retainer, Rear Axle Bearing, Outer, Rh[08.1979 - 07.1983] AE71,TE72 |
42424-20010 |
US $11.20 |
||
|
42425
|
42425
42425-20010
Gasket, Rear Axle Bearing Retainer
[08.1979 - 07.1983] AE71,TE72..CP,HT,LB,SED |
42425-20010 |
— | ||
| replacement | |||||
|
42425
|
42425
42425-52030 Gasket, Rear Axle Bearing Retainer[08.1979 - 07.1983] AE71,TE72..CP,HT,LB,SED |
42425-52030 |
US $3.84 |
||
|
42454
|
42454
42454-20010 Retainer, Rear Axle Bearing, Outer, Lh[08.1979 - 07.1983] AE71,TE72 |
42454-20010 |
US $11.20 |
||
|
42611E
|
42611E
90942-02035
Bolt, Hub (For Front Axle)
[08.1979 - 05.1983] AE71,TE72 |
90942-02035 |
— | ||
| replacement | |||||
|
42611E
|
42611E
90942-02047 Bolt, Hub[08.1979 - 05.1983] AE71,TE72 |
90942-02047 |
from US $3.68 |
||
|
42611E
|
42611E
90942-02047 Bolt, Hub[05.1983 - 07.1983] AE71 |
90942-02047 |
from US $3.68 |
||
