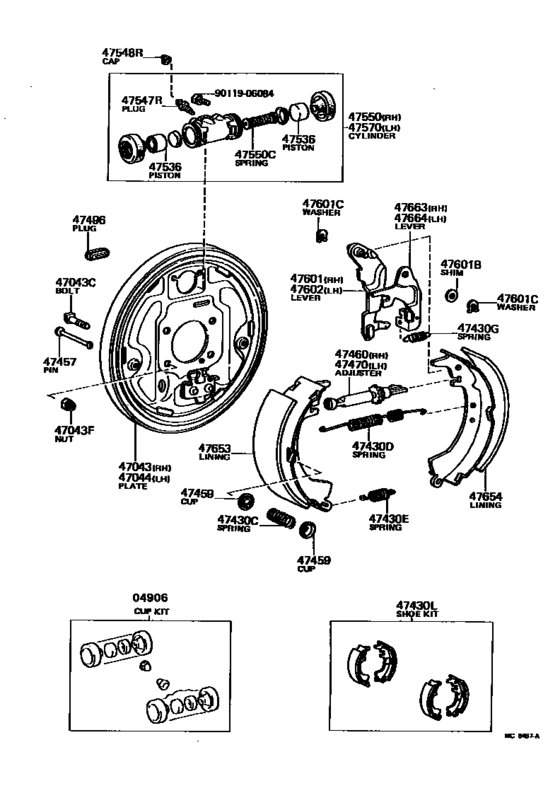

Rear Drum Brake Wheel Cylinder & Backing Plate ([08.1979 - ] (7908- )) Diagram Toyota COROLLA
- Year
- 1982 - 1983
- Sales region
- U.S.A.
- Frame
- AE71
- grade
- DX
- body
- HT
- ENGINE
- 4AC
- TRANSMISSION
- ATM
- DESTINATION
- CND
- Model
- COROLLA
- From
- 08.1982
- To
- 07.1983
- Gear Shift Type
- 3FC
- No.of Doors
- 2D
- Vehicle Model
- Corolla
Difficulties in parts search?
Difficulties in parts search?
| Description | OEM Part # | Price | |||
|---|---|---|---|---|---|
|
04906
|
04906
04906-12040 Cup Kit, Rear Wheel Cylinder[08.1979 - 07.1983] AE71,TE72 |
04906-12040 |
US $15.35 |
||
|
47043
|
47043
47043-14011 Plate Sub-Assy, Brake Backing, Rear RhBRAKE BACKING, REAR RH [08.1979 - 07.1983] AE71,TE72..CP,HT,LB,SED |
47043-14011 |
US $71.49 |
||
| replacement | |||||
|
47043
|
47043
47043-12060 Plate Sub-Assy, Brake Backing, Rear Rh[08.1979 - 07.1983] AE71,TE72..CP,HT,LB,SED |
47043-12060 |
US $71.34 |
||
|
47043C
|
47043C
42184-22020 Bolt(For Backing Plate To Rear Axle Housing Setting)[08.1979 - 07.1983] AE71,TE72..CP,HT,LB,SED *10-1.25PX26-10 |
42184-22020 |
US $3.68 |
||
|
47043F
|
47043F
94181-11000 Nut(For Backing Plate To Rear Axle Housing Setting)[08.1979 - 07.1983] AE71,TE72 |
94181-11000 |
US $2.88 |
||
|
47044
|
47044
47044-14011 Plate Sub-Assy, Brake Backing, Rear LhBRAKE BACKING, REAR LH [08.1979 - 07.1983] AE71,TE72..CP,HT,LB,SED |
47044-14011 |
US $71.49 |
||
| replacement | |||||
|
47044
|
47044
47044-12060 Plate Sub-Assy, Brake Backing, Rear Lh[08.1979 - 07.1983] AE71,TE72..CP,HT,LB,SED |
47044-12060 |
US $71.34 |
||
|
47430C
|
47430C
90501-18017 Spring(For Front Brake Shoe Hold Down)[08.1979 - 07.1983] AE71,TE72 |
90501-18017 |
from US $2.03 |
||
|
47430D
|
47430D
90506-23375 Spring, Tension(For Rear Brake Shoe Return)[08.1979 - 07.1983] AE71,TE72 |
90506-23375 |
US $4.02 |
||
|
47430E
|
47430E
90506-23346 Spring, Tension(For Rear Brake Shoe Return)[08.1979 - 07.1983] AE71,TE72 |
90506-23346 |
US $2.97 |
||
|
47430G
|
47430G
90506-12011 Spring, Tension(For Rear Brake Automatic Adjust Lever)[08.1979 - 07.1983] AE71,TE72 |
90506-12011 |
US $3.04 |
||
|
47430L
|
47430L
04495-14010
Shoe Kit, Rear Brake
[08.1979 - 07.1983] AE71,TE72 |
04495-14010 |
— | ||
| replacement | |||||
|
47430L
|
47430L
04495-27051 Shoe Kit, Rear Brake[08.1979 - 07.1983] AE71,TE72 |
04495-27051 |
US $138.32 |
||
|
47457
|
47457
47447-20030 Pin, Shoe Hold Down Spring[08.1979 - 07.1983] AE71,TE72 |
47447-20030 |
from US $1.74 |
||
|
47459
|
47459
47449-30020 Cup, Shoe Hold Down Spring(For Front Brake)[08.1979 - 07.1983] AE71,TE72 |
47449-30020 |
from US $1.35 |
||
|
47460
|
47460
47061-14021
Adjuster Assy, Shoe, Rh(For Rear Brake)
[08.1979 - 07.1983] AE71,TE72 |
47061-14021 |
— | ||
|
47470
|
47470
47062-14021
Adjuster Assy, Shoe, Lh(For Rear Brake)
[08.1979 - 07.1983] AE71,TE72 |
47062-14021 |
— | ||
|
47496
|
47496
47491-20011 Plug, Hole(For Rear Brake)[08.1979 - 07.1983] AE71,TE72 |
47491-20011 |
from US $2.24 |
||
|
47536
|
47536
47051-22040 Piston, Wheel Brake Cylinder(For Rear Brake)[08.1979 - 07.1983] AE71,TE72 |
47051-22040 |
US $9.03 |
||
|
47547R
|
47547R
47547-20010 Plug, Bleeder(For Release Cylinder)[08.1979 - 07.1983] AE71,TE72 |
47547-20010 |
from US $3.20 |
||
|
47548R
|
47548R
31478-30010 Bleeder Plug Cap[08.1979 - 07.1983] AE71,TE72 |
31478-30010 |
from US $1.66 |
||
|
47550
|
47550
47550-19135 Cylinder Assy, Rear Wheel Brake(For Rh, Front Or Upper)[08.1979 - 07.1983] AE71,TE72 |
47550-19135 |
US $78.62 |
||
| replacement | |||||
|
47550
|
47550
47550-12060 Cylinder Assy, Rear Wheel Brake(For Rh, Front Or Upper)[08.1979 - 07.1983] AE71,TE72 |
47550-12060 |
US $84.36 |
||
|
47550C
|
47550C
47509-12020 Spring, Compression(For Rear Wheel Brake Cylinder)[08.1979 - 07.1983] AE71,TE72 |
47509-12020 |
US $3.49 |
||
|
47570
|
47570
47550-19135 Cylinder Assy, Rear Wheel Brake(For Rh, Front Or Upper)[08.1979 - 07.1983] AE71,TE72 |
47550-19135 |
US $78.62 |
||
| replacement | |||||
|
47570
|
47570
47550-12060 Cylinder Assy, Rear Wheel Brake(For Rh, Front Or Upper)[08.1979 - 07.1983] AE71,TE72 |
47550-12060 |
US $84.36 |
||
|
47601
|
47601
47601-14010 Lever Sub-Assy, Parking Brake Shoe, Rh(For Rear Brake)[08.1979 - 07.1983] AE71,TE72 |
47601-14010 |
US $7.70 |
||
|
47601B
|
47601B
90564-08150 Shim, Rear Parking Brake Shoe Lever[08.1979 - 07.1983] AE71,TE72 T=0.3,T=0.3 |
90564-08150 |
US $2.72 |
||
|
47601B
|
47601B
90564-08151 Shim, Rear Parking Brake Shoe Lever[08.1979 - 07.1983] AE71,TE72 T=0.6,T=0.6 |
90564-08151 |
US $1.49 |
||
|
47601B
|
47601B
90564-08152 Shim, Rear Parking Brake Shoe Lever[08.1979 - 07.1983] AE71,TE72 T=0.9,T=0.9 |
90564-08152 |
US $2.18 |
||
|
47601B
|
47601B
90564-08172 Shim, Rear Parking Brake Shoe Lever[08.1979 - 07.1983] AE71,TE72 T=0.2,T=0.2 |
90564-08172 |
US $2.48 |
||
|
47601B
|
47601B
90564-08173 Shim, Rear Parking Brake Shoe Lever[08.1979 - 07.1983] AE71,TE72 T=0.4,T=0.4 |
90564-08173 |
US $2.18 |
||
|
47601B
|
47601B
90564-08174 Shim, Rear Parking Brake Shoe Lever[08.1979 - 07.1983] AE71,TE72 T=0.5,T=0.5 |
90564-08174 |
US $2.18 |
||
|
47601C
|
47601C
90213-06013 Washer, Type C(For Parking Brake Shoe)[08.1979 - 07.1983] AE71,TE72 T=1.2 |
90213-06013 |
from US $0.80 |
||
|
47602
|
47602
47602-14010 Lever Sub-Assy, Parking Brake Shoe, Lh (For Rear Brake)[08.1979 - 07.1983] AE71,TE72 |
47602-14010 |
US $8.04 |
||
|
47653
|
47653
47655-14010
Lining, Rear Brake Shoe(For Front Or Upper)
[08.1979 - 07.1983] AE71,TE72 |
47655-14010 |
— | ||
|
47654
|
47654
47655-14010
Lining, Rear Brake Shoe(For Front Or Upper)
[08.1979 - 07.1983] AE71,TE72 |
47655-14010 |
— | ||
|
47663
|
47663
47643-20020 Lever, Rear Brake Automatic Adjust, Rh[08.1979 - 07.1983] AE71,TE72 |
47643-20020 |
US $6.29 |
||
|
47664
|
47664
47644-20020 Lever, Rear Brake Automatic Adjust, Lh[08.1979 - 07.1983] AE71,TE72 |
47644-20020 |
US $6.41 |
||
|
9011906084
|
9011906084
90119-06084 Bolt(For Rear Wheel Cylinder) |
90119-06084 |
from US $1.05 |
||
