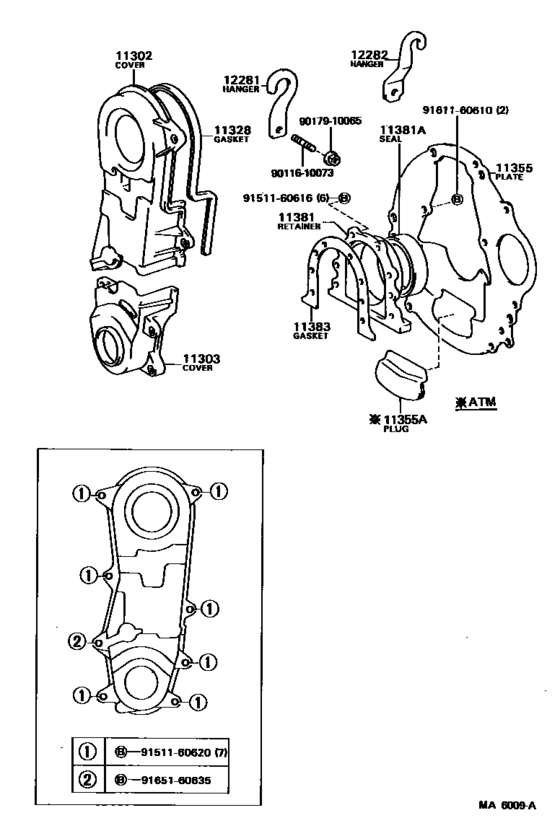

Timing Gear Cover & Rear End Plate ([08.1982 - ] (8208- )) Diagram Toyota COROLLA
- Year
- 1982 - 1983
- Sales region
- U.S.A.
- Frame
- AE71
- grade
- DX
- body
- HT
- ENGINE
- 4AC
- TRANSMISSION
- ATM
- DESTINATION
- CND
- Model
- COROLLA
- From
- 08.1982
- To
- 07.1983
- Gear Shift Type
- 3FC
- No.of Doors
- 2D
- Vehicle Model
- Corolla
Difficulties in parts search?
Difficulties in parts search?
| Description | OEM Part # | Price | |||
|---|---|---|---|---|---|
|
11302
|
11302
11302-15020
Cover Sub-Assy, Timing Chain Or Belt
[08.1982 - 07.1983] 4AC..AE71 |
11302-15020 |
— | ||
|
11303
|
11303
11303-15020
Cover Sub-Assy, Crankshaft Gear Or Pulley
[08.1982 - 07.1983] 4AC..AE71 |
11303-15020 |
— | ||
|
11328
|
11328
11328-15020
Gasket, Timing Gear Or Chain Cover
[08.1982 - 07.1983] 4AC..AE71 |
11328-15020 |
— | ||
|
11355
|
11355
11355-15031 Plate, Rear End[08.1982 - 07.1983] 4AC..AE71..ATM |
11355-15031 |
US $55.18 |
||
|
11355A
|
11355A
90950-01264 Plug, Hole(For Rear End Plate)[08.1982 - 07.1983] 4AC..AE71..ATM |
90950-01264 |
US $8.88 |
||
|
11381
|
11381
11381-15010 Retainer, Engine Rear Oil Seal[08.1982 - 07.1983] 4AC..AE71 |
11381-15010 |
US $55.56 |
||
|
11381A
|
11381A
90311-70004
Seal, Engine Rear Oil
[08.1982 - 07.1983] 4AC..AE71 |
90311-70004 |
— | ||
| replacement | |||||
|
11381A
|
11381A
90311-70007 Seal, Engine Rear Oil[08.1982 - 07.1983] 4AC..AE71 |
90311-70007 |
from US $16.42 |
||
|
11383
|
11383
11383-15010
Gasket, Engine Rear Oil Seal Retainer
[08.1982 - 07.1983] 4AC..AE71 |
11383-15010 |
— | ||
| replacement | |||||
|
11383
|
11383
11383-16010 Gasket, Engine Rear Oil Seal Retainer[08.1982 - 07.1983] 4AC..AE71 |
11383-16010 |
from US $3.94 |
||
|
12281
|
12281
12281-15010 Hanger, Engine, No.1ENGINE, NO.1 [08.1982 - 07.1983] 4AC..AE71 |
12281-15010 |
US $12.52 |
||
|
12282
|
12282
12282-15010
Hanger, Engine, No.2
[08.1982 - 04.1983] 4AC..AE71 |
12282-15010 |
— | ||
| replacement | |||||
|
12282
|
12282
12282-15020 Hanger, Engine, No.2[08.1982 - 04.1983] 4AC..AE71 |
12282-15020 |
US $13.40 |
||
|
12282
|
12282
12282-15020 Hanger, Engine, No.2[04.1983 - 07.1983] 4AC..AE71 |
12282-15020 |
US $13.40 |
||
|
9011610073
|
9011610073
90116-10073 New Genuine Part |
90116-10073 |
from US $1.29 |
||
|
9017910065
|
9017910065
90179-10065 Nut, Master Cylinder Push Rod Clevis Lock |
90179-10065 |
from US $1.44 |
||
|
9151160616
|
9151160616
91511-60616
BOLTFLANGE
|
91511-60616 |
— | ||
| replacement | |||||
|
9151160616
|
9151160616
91511-B0616 BOLT, FLANGE |
91511-B0616 |
from US $0.96 |
||
|
9151160620
|
9151160620
91511-60620
Bolt(For Clutch Release Bearing Hub Retainer)
|
91511-60620 |
— | ||
| replacement | |||||
|
9151160620
|
9151160620
91511-B0620 Bolt(For Clutch Release Bearing Hub Retainer) |
91511-B0620 |
from US $0.76 |
||
|
9161160610
|
9161160610
91611-60610
Bolt (For Transfer Oil Receiver No.1)
|
91611-60610 |
— | ||
| replacement | |||||
|
9161160610
|
9161160610
91611-B0610 Bolt (For Transfer Oil Receiver No.1) |
91611-B0610 |
US $1.12 |
||
|
9165160635
|
9165160635
91651-60635 BOLT |
91651-60635 |
US $2.56 |
||
