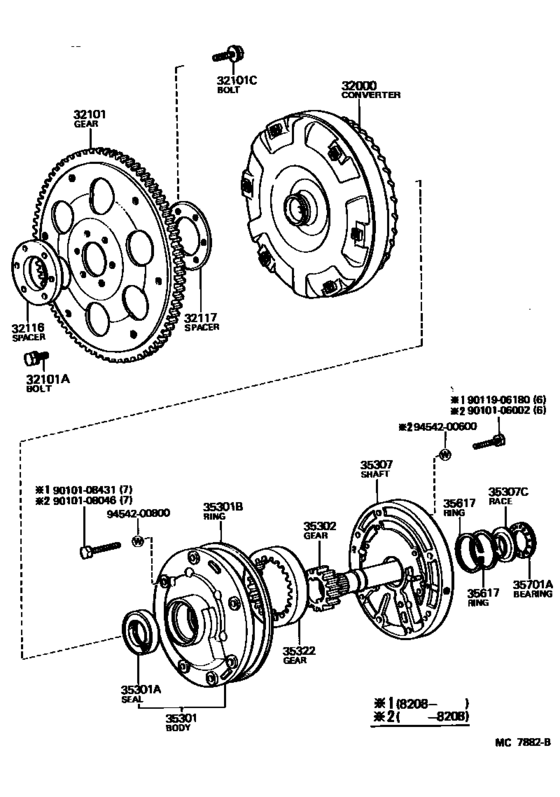

Torque Converter, Front Oil Pump & Chain (Atm) ([08.1982 - ] (8108-8208)4FC ; (8208- )ATM) Diagram Toyota COROLLA
- Year
- 1982 - 1983
- Sales region
- U.S.A.
- Frame
- AE71
- grade
- DX
- body
- HT
- ENGINE
- 4AC
- TRANSMISSION
- ATM
- DESTINATION
- CND
- Model
- COROLLA
- From
- 08.1982
- To
- 07.1983
- Gear Shift Type
- 3FC
- No.of Doors
- 2D
- Vehicle Model
- Corolla
Difficulties in parts search?
Difficulties in parts search?
| Description | OEM Part # | Price | |||
|---|---|---|---|---|---|
|
32000
|
32000
32000-12060 Converter Assy, Torque[08.1982 - 07.1983] AE71..ATM |
32000-12060 |
US $1,403.58 |
||
| replacement | |||||
|
32000
|
32000
32000-12061 Converter Assy, Torque[08.1982 - 07.1983] AE71..ATM |
32000-12061 |
US $1,402.13 |
||
|
32101
|
32101
32101-12030 Gear Sub-Assy, Drive Plate & Ring[08.1982 - 07.1983] AE71..ATM |
32101-12030 |
US $216.94 |
||
|
32101A
|
32101A
90109-08090 Bolt(For Drive Plate & Torque Converter Setting)[01.1983 - 07.1983] AE71..ATM WHITE |
90109-08090 |
US $2.18 |
||
|
32101A
|
32101A
90119-08223 Bolt(For Drive Plate & Torque Converter Setting)[01.1983 - 07.1983] AE71..ATM *8-1.25PX10.5-6.5,YELLOW |
90119-08223 |
US $2.48 |
||
|
32101C
|
32101C
90105-10048 Bolt, Flywheel Setting[08.1982 - 07.1983] AE71..ATM *10-1.25PX18-13 |
90105-10048 |
US $2.08 |
||
|
32116
|
32116
32116-12010 Spacer, Drive Plate, Front[08.1982 - 07.1983] AE71..ATM |
32116-12010 |
US $7.43 |
||
|
32117
|
32117
32117-12010 Spacer, Drive Plate, Rear[08.1982 - 07.1983] AE71..ATM |
32117-12010 |
US $9.90 |
||
|
35301
|
35301
35301-30030
Body Sub-Assy, Front Oil Pump
[10.1980 - 07.1983] AE71,TE72..ATM |
35301-30030 |
— | ||
|
35301A
|
35301A
90311-38129 Seal, Oil (For Front Oil Pump)[08.1979 - 07.1983] AE71,TE72..ATM |
90311-38129 |
US $7.86 |
||
| replacement | |||||
|
35301A
|
35301A
90311-38020 Seal, Oil (For Front Oil Pump)[08.1979 - 07.1983] AE71,TE72..ATM |
90311-38020 |
from US $8.64 |
||
|
35301B
|
35301B
90301-99010 Ring, O (For Front Oil Pump Body)[09.1979 - 07.1983] AE71,TE72..ATM |
90301-99010 |
US $11.36 |
||
|
35302
|
35302
35321-22010
Gear Sub-Assy, Front Oil Pump Drive
[08.1979 - 07.1983] AE71,TE72..ATM |
35321-22010 |
— | ||
| replacement | |||||
|
35302
|
35302
35321-22090
Gear, Front Oil Pump Drive
[08.1979 - 07.1983] AE71,TE72..ATM |
35321-22090 |
— | ||
|
35307
|
35307
35370-12020 Shaft Sub-Assy, Stator[08.1982 - 07.1983] AE71..ATM |
35370-12020 |
US $339.25 |
||
| replacement | |||||
|
35307
|
35307
35370-12021 Shaft Sub-Assy, Stator[08.1982 - 07.1983] AE71..ATM |
35370-12021 |
US $339.25 |
||
|
35307C
|
35307C
35789-22010 Race, Thrust Bearing(For Overdrive Planetary Gear)[08.1979 - 07.1983] AE71,TE72..ATM T=4.3 |
35789-22010 |
US $6.99 |
||
|
35322
|
35322
35322-22010 Gear, Front Oil Pump Driven[08.1979 - 07.1983] AE71,TE72..ATM T=15.286-15.235 |
35322-22010 |
US $66.10 |
||
| replacement | |||||
|
35322
|
35322
35322-22090
Gear, Front Oil Pump Driven
[08.1979 - 07.1983] AE71,TE72..ATM T=15.286-15.235 |
35322-22090 |
— | ||
|
35617
|
35617
35617-22011 Ring, Clutch Drum Oil Seal[08.1982 - 07.1983] AE71..ATM |
35617-22011 |
US $27.08 |
||
| replacement | |||||
|
35617
|
35617
35617-32010 Ring, Clutch Drum Oil Seal[08.1982 - 07.1983] AE71..ATM |
35617-32010 |
US $25.54 |
||
|
35701A
|
35701A
90374-23012 Bearing, Thrust Needle Roller(For Overdrive Planetary Gear)[08.1979 - 07.1983] AE71,TE72..ATM |
90374-23012 |
US $5.42 |
||
|
9010106002
|
9010106002
90101-06002 Bolt (For Stator Shaft) |
90101-06002 |
US $1.75 |
||
| replacement | |||||
|
9010106002
|
9010106002
90119-06180 Bolt (For Stator Shaft) |
90119-06180 |
US $1.02 |
||
|
9010108046
|
9010108046
90101-08046 Bolt (For Front Oil Pump Setting) |
90101-08046 |
US $3.06 |
||
| replacement | |||||
|
9010108046
|
9010108046
91511-K0840 Bolt(For Crankshaft Bearing Cap Set) |
91511-K0840 |
US $2.72 |
||
|
9010108431
|
9010108431
90101-08431 Bolt (For Front Oil Pump Setting) |
90101-08431 |
US $3.79 |
||
| replacement | |||||
|
9010108431
|
9010108431
90105-08136 Bolt (For Front Oil Pump Setting) |
90105-08136 |
US $3.64 |
||
|
9011906180
|
9011906180
90119-06180 Bolt (For Stator Shaft) |
90119-06180 |
US $1.02 |
||
|
9454200600
|
9454200600
94542-00600 New Genuine Part |
94542-00600 |
US $3.20 |
||
|
9454200800
|
9454200800
94542-00800 New Genuine Part |
94542-00800 |
US $2.18 |
||
