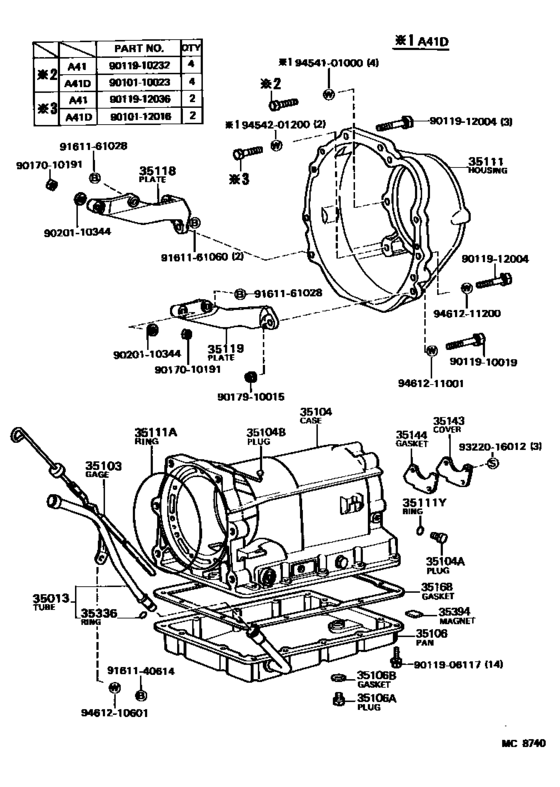

Transmission Case & Oil Pan (Atm) ([08.1982 - ] (8208- )ATM) Diagram Toyota COROLLA
- Year
- 1982 - 1983
- Sales region
- U.S.A.
- Frame
- AE71
- grade
- DX
- body
- HT
- ENGINE
- 4AC
- TRANSMISSION
- ATM
- DESTINATION
- CND
- Model
- COROLLA
- From
- 08.1982
- To
- 07.1983
- Gear Shift Type
- 3FC
- No.of Doors
- 2D
- Vehicle Model
- Corolla
Difficulties in parts search?
Difficulties in parts search?
| Description | OEM Part # | Price | |||
|---|---|---|---|---|---|
|
35013
|
35013
35013-12120 Tube Sub-Assy, Transmission Oil Filler[08.1982 - 07.1983] AE71..ATM |
35013-12120 |
US $22.86 |
||
|
35103
|
35103
35103-22030 Gage Sub-Assy, Transmission Oil LevelTRANSMISSION OIL LEVEL [08.1982 - 07.1983] AE71..3FC |
35103-22030 |
US $16.02 |
||
|
35104
|
35104
35104-22025 Case Sub-Assy, Automatic Transmission[06.1981 - 07.1983] AE71,TE72..3FC |
35104-22025 |
US $1,132.77 |
||
| replacement | |||||
|
35104
|
35104
35104-22050
Case Sub-Assy, Automatic Transmission
[06.1981 - 07.1983] AE71,TE72..3FC |
35104-22050 |
— | ||
|
35104A
|
35104A
90341-08001 Plug, Transaxle Case, No.1[06.1981 - 07.1983] AE71,TE72..ATM |
90341-08001 |
from US $1.64 |
||
|
35104B
|
35104B
90930-03069 Plug, Breather, No.1 (Atm)[08.1981 - 07.1983] AE71,TE72..ATM |
90930-03069 |
US $7.28 |
||
|
35106
|
35106
35106-14020 Pan Sub-Assy, Automatic Transmission Oil[08.1982 - 07.1983] AE71..3FC |
35106-14020 |
US $75.71 |
||
| replacement | |||||
|
35106
|
35106
35106-14022 Pan Sub-Assy, Automatic Transmission Oil[08.1982 - 07.1983] AE71..3FC |
35106-14022 |
US $70.32 |
||
|
35106A
|
35106A
90341-10003 Plug Sub-Assy, Drain (Atm)[08.1979 - 07.1983] AE71,TE72..ATM |
90341-10003 |
US $3.49 |
||
| replacement | |||||
|
35106A
|
35106A
90341-10011 Drain Plug (No Type)[08.1979 - 07.1983] AE71,TE72..ATM |
90341-10011 |
from US $1.60 |
||
|
35106A
|
35106A
90341-10006
Plug (For Transfer Oil Pan)
[07.1983 - 07.1983] AE71..ATM |
90341-10006 |
— | ||
| replacement | |||||
|
35106A
|
35106A
90341-10011 Drain Plug (No Type)[07.1983 - 07.1983] AE71..ATM |
90341-10011 |
from US $1.60 |
||
|
35106B
|
35106B
35178-30010 Drain Plug Gasket[08.1979 - 07.1983] AE71,TE72..ATM |
35178-30010 |
from US $3.04 |
||
|
35111
|
35111
35111-12090 Housing, Automatic TransmissionAUTOMATIC TRANSMISSION [08.1982 - 07.1983] AE71..3FC |
35111-12090 |
US $451.36 |
||
|
35111Y
|
35111Y
90301-06196 O Ring, Transaxle Case, No.1[08.1979 - 07.1983] AE71,TE72..ATM |
90301-06196 |
from US $2.72 |
||
|
35118
|
35118
33118-12090 Plate, Stiffener, Rh(Mtm)STIFENER, RH (ATM) [08.1982 - 07.1983] AE71..ATM |
33118-12090 |
US $33.34 |
||
| replacement | |||||
|
35118
|
35118
33118-12110 Plate, Stiffener, Rh(Mtm)STIFENER, RH (ATM) [08.1982 - 07.1983] AE71..ATM |
33118-12110 |
US $33.78 |
||
|
35119
|
35119
33119-12060 Plate, Stiffener, Lh(Mtm)[08.1982 - 04.1983] AE71..ATM |
33119-12060 |
US $29.27 |
||
| replacements | |||||
|
35119
|
35119
91612-61060 Bolt(for Clutch Release Cylinder Setting)[08.1982 - 04.1983] AE71..ATM |
91612-61060 |
US $1.92 |
||
|
35119
|
35119
33119-12100 Plate, Stiffener, Lh(Mtm)[08.1982 - 04.1983] AE71..ATM |
33119-12100 |
US $29.27 |
||
|
35119
|
35119
91651-61060 New Genuine Part[08.1982 - 04.1983] AE71..ATM |
91651-61060 |
US $0.96 |
||
|
35119
|
35119
33119-12090
Plate, Stifener, Lh (Atm)
[04.1983 - 07.1983] AE71..ATM |
33119-12090 |
— | ||
|
35143
|
35143
35143-22010 Cover, Transmission Case, Rear[08.1979 - 07.1983] AE71,TE72..ATM |
35143-22010 |
US $6.26 |
||
|
35144
|
35144
35144-22010
Gasket, Transmission Case Rear Cover
[08.1979 - 07.1983] AE71,TE72..ATM |
35144-22010 |
— | ||
| replacement | |||||
|
35144
|
35144
35144-28010 Gasket, Transmission Case Rear Cover[08.1979 - 07.1983] AE71,TE72..ATM |
35144-28010 |
US $2.62 |
||
|
35168
|
35168
35168-22011 Gasket, Automatic Transmission Oil Pan[08.1980 - 07.1983] AE71,TE72..ATM |
35168-22011 |
from US $10.08 |
||
|
35336
|
35336
90301-09173 Ring, O(For Transmission Oil Filler Tube)[08.1979 - 07.1983] AE71,TE72..ATM |
90301-09173 |
from US $2.18 |
||
|
35394
|
35394
35394-30011 Magnet, Oil Cleaner (For Transmission)[08.1979 - 07.1983] AE71,TE72..ATM |
35394-30011 |
from US $5.76 |
||
|
9010110023
|
9010110023
90101-10023 New Genuine Part |
90101-10023 |
US $4.22 |
||
| replacement | |||||
|
9010110023
|
9010110023
90105-10189 New Genuine Part |
90105-10189 |
US $2.48 |
||
|
9010112016
|
9010112016
90101-12016 New Genuine Part |
90101-12016 |
US $6.26 |
||
| replacement | |||||
|
9010112016
|
9010112016
90105-12144 New Genuine Part |
90105-12144 |
US $3.20 |
||
|
9011906117
|
9011906117
90119-06117
Bolt (For Automatic Transmission Oil Pan)
|
90119-06117 |
— | ||
| replacement | |||||
|
9011906117
|
9011906117
90119-06173 Bolt, Stud (For Automatic Transmission Oil Pan Setting) |
90119-06173 |
from US $0.82 |
||
|
9011910019
|
9011910019
90119-10019 Bolt(For Transmission Case & Engine Setting) |
90119-10019 |
US $4.48 |
||
|
9011910232
|
9011910232
90119-10232 Bolt (For Transmission Housing & Case Setting) |
90119-10232 |
from US $1.76 |
||
|
9011912004
|
9011912004
90119-12004 Bolt(For Transmission Case & Engine Setting) |
90119-12004 |
US $4.96 |
||
|
9011912036
|
9011912036
90119-12036 Bolt (For Transmission Housing & Case Setting) |
90119-12036 |
US $1.89 |
||
|
9017010191
|
9017010191
90170-10191 Nut(For Rear Drive Shaft) |
90170-10191 |
US $1.76 |
||
|
9017910015
|
9017910015
90179-10015 NUT |
90179-10015 |
from US $1.13 |
||
|
9020110344
|
9020110344
90201-10344 Washer, Plate(For Cylinder Head Set) |
90201-10344 |
US $1.76 |
||
|
9161140614
|
9161140614
91611-40614
Bolt, Hexagon(For Steering Column Bracket)
|
91611-40614 |
— | ||
| replacement | |||||
|
9161140614
|
9161140614
91611-B0614 Bolt (For Rear Differential Breather Plug Oil Deflector) |
91611-B0614 |
US $1.76 |
||
|
9161161028
|
9161161028
91611-61028
Bolt(For Transaxle Case & Engine Setting)
|
91611-61028 |
— | ||
| replacement | |||||
|
9161161028
|
9161161028
91612-61028 Bolt(For Transaxle Case & Engine Setting) |
91612-61028 |
US $2.72 |
||
|
9161161060
|
9161161060
91611-61060
Bolt(for Clutch Release Cylinder Setting)
|
91611-61060 |
— | ||
| replacement | |||||
|
9161161060
|
9161161060
91612-61060 Bolt(for Clutch Release Cylinder Setting) |
91612-61060 |
US $1.92 |
||
|
9322016012
|
9322016012
93220-16012 SCREW |
93220-16012 |
US $1.40 |
||
|
9454101000
|
9454101000
94541-01000 New Genuine Part |
94541-01000 |
US $2.72 |
||
|
9454201200
|
9454201200
94542-01200 New Genuine Part |
94542-01200 |
US $0.87 |
||
|
9461210601
|
9461210601
94612-10601 New Genuine Part |
94612-10601 |
US $0.87 |
||
|
9461211001
|
9461211001
94612-11001 Washer, Plate (For Center Support Bearing Housing) |
94612-11001 |
from US $0.96 |
||
|
9461211200
|
9461211200
94612-11200 Washer |
94612-11200 |
from US $0.74 |
||
