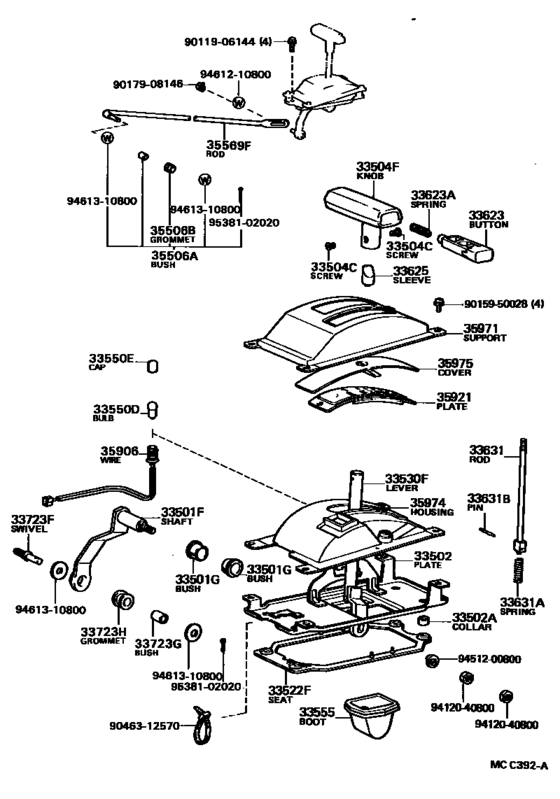

Shift Lever & Retainer ([08.1985 - ] (8508- )AE71..GEN) Diagram Toyota COROLLA
- Year
- 1985 - 1987
- Sales region
- Europe
- Frame
- AE71
- grade
- DX
- body
- WG
- ENGINE
- 4A
- TRANSMISSION
- ATM
- Model
- COROLLA
- From
- 08.1985
- To
- 07.1987
- Gear Shift Type
- 3FC
- No.of Doors
- 4D
- Vehicle Model
- Corolla
- Driver's Position
- LHD
- Destination
- GEN
Difficulties in parts search?
Difficulties in parts search?
| Description | OEM Part # | Price | |||
|---|---|---|---|---|---|
|
33501F
|
33501F
33501-12100 Shaft Sub-Assy, Control (For Floor Shift)CONTROL (FOR FLOOR SHIFT) [08.1985 - 07.1987] AE71..GEN |
33501-12100 |
US $22.13 |
||
|
33501G
|
33501G
90385-16008 Bush (For Floor Shift Control Shaft)[08.1985 - 07.1987] AE71..GEN |
90385-16008 |
US $9.76 |
||
|
33502
|
33502
33502-12260 Plate Sub-Assy, Shift LeverSHIFT LEVER [08.1985 - 07.1987] AE71..GEN |
33502-12260 |
US $48.34 |
||
|
33502A
|
33502A
90387-06005 Collar (For Floor Shift Setting)[08.1985 - 07.1987] AE71..GEN |
90387-06005 |
US $3.64 |
||
|
33504C
|
33504C
90159-40109 Bolt Or Pin (For Shift Lever Knob Setting)[08.1985 - 07.1987] AE71..GEN |
90159-40109 |
US $1.28 |
||
|
33504F
|
33504F
33542-12110-06 Knob Sub-Assy, Shift Lever[08.1985 - 07.1987] AE71..GEN BROWN,BROWN,TRIM4# |
33542-12110-06 |
US $65.81 |
||
| replacement | |||||
|
33504F
|
33504F
33542-12110-11 Knob Sub-Assy, Shift Lever[08.1985 - 07.1987] AE71..GEN BROWN,BROWN,TRIM4# |
33542-12110-11 |
US $65.81 |
||
|
33504F
|
33504F
33542-12110-13 Knob Sub-Assy, Shift LeverSHIFT LEVER [08.1985 - 07.1987] AE71..GEN GRAY,GRAY,TRIM1# |
33542-12110-13 |
US $65.81 |
||
| replacement | |||||
|
33504F
|
33504F
33542-12110-11 Knob Sub-Assy, Shift Lever[08.1985 - 07.1987] AE71..GEN GRAY,GRAY,TRIM1# |
33542-12110-11 |
US $65.81 |
||
|
33522F
|
33522F
33522-12060 Seat, Shift Lever Plate (For Floor Shift)SHIFT LEVER PLATE (FOR FLOOR SHIFT) [08.1985 - 07.1987] AE71..GEN |
33522-12060 |
US $20.97 |
||
|
33530F
|
33530F
33503-12180 Lever Assy, Shift (For Floor Shift)SHIFT (FOR FLOOR SHIFT) [08.1985 - 07.1987] AE71..GEN |
33503-12180 |
US $74.26 |
||
|
33550D
|
33550D
99132-11017 Bulb, Position Indicator Lamp[08.1979 - 07.1987] AE71,KE70,TE7#..ATM 12V 1.7W,12V 1.7W |
99132-11017 |
US $2.18 |
||
|
33550E
|
33550E
90339-09001 Cap, Position Indicator Lamp[08.1985 - 07.1987] AE71..GEN |
90339-09001 |
US $1.92 |
||
|
33555
|
33555
33555-12080
Boot, Shift Lever
[08.1985 - 07.1987] AE71..GEN |
33555-12080 |
— | ||
|
33623
|
33623
33623-30040-23 Button, Shift Lever Knob[08.1985 - 07.1987] AE71..GEN GRAY,GRAY,TRIM1# |
33623-30040-23 |
US $19.22 |
||
| replacement | |||||
|
33623
|
33623
33623-30040-01 Button, Shift Lever Knob[08.1985 - 07.1987] AE71..GEN GRAY,GRAY,TRIM1# |
33623-30040-01 |
US $18.70 |
||
|
33623
|
33623
33623-30040-56
Button, Shift Lever Knob
[08.1985 - 07.1987] AE71..GEN BROWN,BROWN,TRIM4# |
33623-30040-56 |
— | ||
| replacement | |||||
|
33623
|
33623
33623-30040-01 Button, Shift Lever Knob[08.1985 - 07.1987] AE71..GEN BROWN,BROWN,TRIM4# |
33623-30040-01 |
US $18.70 |
||
|
33623A
|
33623A
90501-07009 Spring, Compression (For Shift Lever Knob)[08.1985 - 07.1987] AE71..GEN |
90501-07009 |
from US $4.49 |
||
|
33625
|
33625
33625-22020 Sleeve, Shift Lever Knob[08.1985 - 07.1987] AE71..GEN |
33625-22020 |
US $12.48 |
||
|
33631
|
33631
33631-28021 Rod, Detent[08.1985 - 07.1987] AE71..GEN |
33631-28021 |
US $14.27 |
||
|
33631A
|
33631A
90501-07005 Spring, Compression (For Detent Rod)[08.1985 - 07.1987] AE71..GEN |
90501-07005 |
US $6.87 |
||
|
33631B
|
33631B
90256-04001 Pin, Slotted Spring (For Detent Rod)[08.1985 - 07.1987] AE71..GEN |
90256-04001 |
US $3.19 |
||
|
33723F
|
33723F
33723-22010 Swivel, Connecting Rod (For Column Shift)[08.1985 - 07.1987] AE71..GEN |
33723-22010 |
from US $10.24 |
||
|
33723G
|
33723G
90389-08005 Bushing(For Gear Selecting Rod)[08.1985 - 07.1987] AE71..GEN |
90389-08005 |
from US $1.79 |
||
|
33723H
|
33723H
90480-17177 Grommet (For Transmission Control Rod)[08.1985 - 07.1987] AE71..GEN |
90480-17177 |
from US $2.34 |
||
|
35506A
|
35506A
90999-99017 Bush (For Transmission Control Rod)[08.1985 - 07.1987] AE71..GEN |
90999-99017 |
from US $3.08 |
||
|
35506B
|
35506B
90480-17177 Grommet (For Transmission Control Rod)[08.1985 - 07.1987] AE71..GEN |
90480-17177 |
from US $2.34 |
||
|
35569F
|
35569F
33675-12090 Rod, Transmission Control, 1St (For Floor Shift)TRANSMISSION CONTROL, 1ST (FOR FLOOR SHIFT) [08.1985 - 07.1987] AE71..GEN |
33675-12090 |
US $11.50 |
||
|
35906
|
35906
35906-12030 Wire Sub-Assy, Indicator LampINDICATOR LAMP [08.1979 - 07.1987] AE71,KE70,TE7#..ATM |
35906-12030 |
US $13.40 |
||
|
35921
|
35921
35921-12260 Plate, Control Position IndicatorCONTROL POSITION INDICATOR [08.1985 - 07.1987] AE71..GEN |
35921-12260 |
US $61.01 |
||
|
35971
|
35971
35971-12080-01 Support, Position IndicatorPOSITION INDICATOR [08.1985 - 07.1987] AE71..GEN BLACK |
35971-12080-01 |
US $29.27 |
||
|
35974
|
35974
35974-12070 Housing, Position Indicator, LowerPOSITION INDICATOR, LOWER [08.1985 - 07.1987] AE71..GEN |
35974-12070 |
US $26.35 |
||
|
35975
|
35975
35975-12140 Cover, Slide (For Position Indicator)SLIDE (FOR POSITION INDICATOR) [08.1985 - 07.1987] AE71..GEN |
35975-12140 |
US $19.22 |
||
|
9011906144
|
9011906144
90119-06144 Bolt, Hexagon (For Shift Lever Plate) |
90119-06144 |
US $0.61 |
||
|
9015950028
|
9015950028
90159-50028 New Genuine Part |
90159-50028 |
US $2.33 |
||
|
9017908146
|
9017908146
90179-08146
Nut
|
90179-08146 |
— | ||
| replacement | |||||
|
9017908146
|
9017908146
90179-08204 Nut |
90179-08204 |
from US $1.11 |
||
|
9046312570
|
9046312570
90463-12570 CLAMP |
90463-12570 |
US $3.20 |
||
|
9412040800
|
9412040800
94120-40800 Nut(For Clutch Pedal Stopper) |
94120-40800 |
US $1.44 |
||
|
9451200800
|
9451200800
94512-00800 Washer, No.1 (For Propeller Shaft & Differential Setting) |
94512-00800 |
from US $0.76 |
||
|
9461210800
|
9461210800
94612-10800 Washer, Plate(For Repair Actuator Set) |
94612-10800 |
from US $0.96 |
||
|
9461310800
|
9461310800
94613-10800 Spacer (For Control Select Lever Support) |
94613-10800 |
from US $0.68 |
||
|
9538102020
|
9538102020
95381-02020 PIN |
95381-02020 |
US $0.96 |
||
