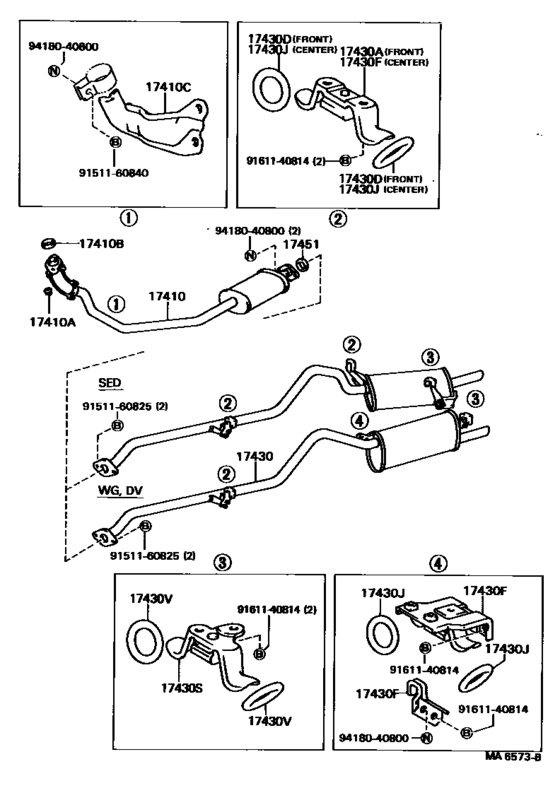

Exhaust Pipe ([05.1983 - ] (8305- )4A#) Diagram Toyota COROLLA
- Year
- 1983 - 1984
- Sales region
- Europe
- Frame
- AE71
- grade
- DX
- body
- SED
- ENGINE
- 4AC
- TRANSMISSION
- ATM
- Model
- COROLLA
- From
- 05.1983
- To
- 10.1984
- Gear Shift Type
- 3FC
- No.of Doors
- 4D
- Vehicle Model
- Corolla
- Driver's Position
- RHD
- Destination
- ARL
Difficulties in parts search?
Difficulties in parts search?
| Description | OEM Part # | Price | |||
|---|---|---|---|---|---|
|
17410
|
17410
17410-16110 Pipe Assy, Exhaust, FrontEXHAUST, FRONT [06.1983 - 10.1984] 4AC..AE71..3FC |
17410-16110 |
US $313.04 |
||
|
17410A
|
17410A
90179-10010 Nut, Exhaust Pipe Set Stud Bolt[08.1979 - 06.1984] 4AC,1C,4K#,2T#,3T#..AE71,CE70,KE70,TE7# |
90179-10010 |
from US $1.38 |
||
|
17410A
|
17410A
90179-10070 Nut, Exhaust Pipe Set Stud Bolt[06.1984 - 07.1987] 4A#,1C,4K#,2T..AE71,CE70,KE70,TE71 |
90179-10070 |
from US $1.46 |
||
| replacement | |||||
|
17410A
|
17410A
90080-17187 Nut, Exhaust Pipe Set Stud Bolt[06.1984 - 07.1987] 4A#,1C,4K#,2T..AE71,CE70,KE70,TE71 |
90080-17187 |
US $33.80 |
||
|
17410B
|
17410B
90917-06004
Gasket(For Manifold Extension)
[08.1979 - 07.1987] 4A#,1C,3TC..AE71,CE70,TE72 |
90917-06004 |
— | ||
| replacement | |||||
|
17410B
|
17410B
90917-06039 Gasket, Exhaust Pipe[08.1979 - 07.1987] 4A#,1C,3TC..AE71,CE70,TE72 |
90917-06039 |
from US $2.36 |
||
|
17410C
|
17410C
17571-16070 Bracket, Exhaust Pipe Front (For Front)EXHAUST PIPE FRONT (FOR FRONT) [05.1983 - 07.1987] 4A#..AE71..3FC |
17571-16070 |
US $23.30 |
||
|
17430A
|
17430A
17506-13020
Bracket, Exhaust Tail Pipe(For Front)
[08.1979 - 07.1987] 4A#,1C,4K#,2T#,3T#..AE71,CE70,KE70,TE7# |
17506-13020 |
— | ||
|
17430D
|
17430D
90301-34207 Bolt Or Ring, Exhaust Pipe Front (For Center)[08.1979 - 07.1987] 4A#,1C,4K#,2T#,3T#..AE71,CE70,KE70,TE7# |
90301-34207 |
US $9.92 |
||
|
17430F
|
17430F
17506-13020
Bracket, Exhaust Tail Pipe(For Front)
[08.1979 - 02.1985] 4AC,1C,4K#,2T#,3TC..AE71,CE70,KE70,TE7#..CP,LB,SED |
17506-13020 |
— | ||
|
17430J
|
17430J
90301-34207 Bolt Or Ring, Exhaust Pipe Front (For Center)[08.1979 - 07.1987] 4A#,1C,4K#,2T#,3T#..AE71,CE70,KE70,TE7# |
90301-34207 |
US $9.92 |
||
|
17430S
|
17430S
17508-13010
Bracket, Exhaust Tail Pipe(For Center)
[08.1979 - 02.1985] 4AC,1C,4K#,2T#,3T#..AE71,CE70,KE70,TE7#..CP,LB,SED |
17508-13010 |
— | ||
|
17430V
|
17430V
90301-34207 Bolt Or Ring, Exhaust Pipe Front (For Center)[08.1979 - 07.1987] 4A#,1C,4K#,2T#,3T#..AE71,CE70,KE70,TE7# |
90301-34207 |
US $9.92 |
||
|
17451
|
17451
90917-06026
Gasket, Exhaust Pipe
[08.1979 - 07.1987] 4K#,2T..KE70,TE71;4AC,2TB,2TG,3T#..AE71,TE7#..CP,LB,SED |
90917-06026 |
— | ||
| replacement | |||||
|
17451
|
17451
90917-06060 Gasket, Exhaust Pipe, Center[08.1979 - 07.1987] 4K#,2T..KE70,TE71;4AC,2TB,2TG,3T#..AE71,TE7#..CP,LB,SED |
90917-06060 |
from US $2.59 |
||
|
9151160825
|
9151160825
91511-60825
Bolt (For Transfer Stiffener Plate)
|
91511-60825 |
— | ||
| replacement | |||||
|
9151160825
|
9151160825
91511-B0825 Bolt (For Transfer Stiffener Plate) |
91511-B0825 |
US $2.24 |
||
|
9151160840
|
9151160840
91511-60840
Bolt(For Alternator)
|
91511-60840 |
— | ||
| replacement | |||||
|
9151160840
|
9151160840
91511-J0840 Bolt(For Alternator) |
91511-J0840 |
from US $2.88 |
||
|
9161140814
|
9161140814
91611-40814
Bolt(For Manual Transmission Oil Pan Setting)
|
91611-40814 |
— | ||
| replacement | |||||
|
9161140814
|
9161140814
91611-60814 Bolt |
91611-60814 |
from US $0.80 |
||
|
9418040800
|
9418040800
94180-40800 NUT |
94180-40800 |
from US $1.54 |
||
