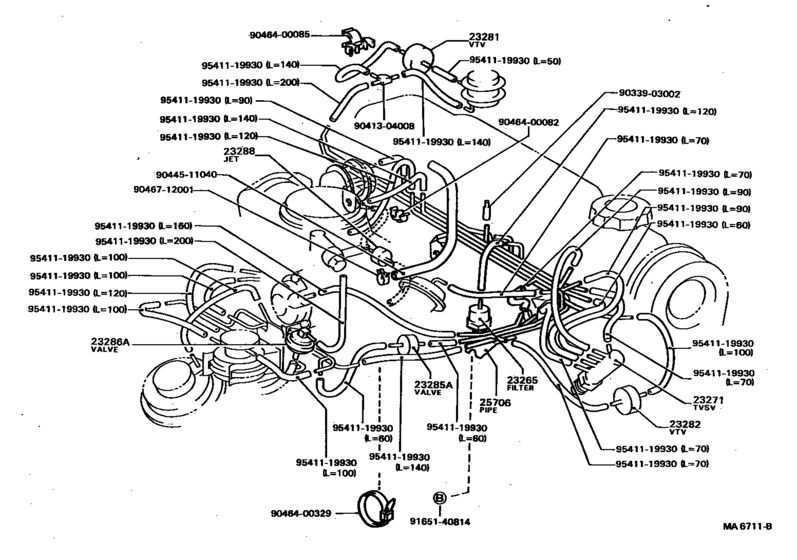

Vacuum Piping ([05.1983 - 12.1985] (8305-8512)4A#..RHD) Diagram Toyota COROLLA
- Year
- 1983 - 1984
- Sales region
- Europe
- Frame
- AE71
- grade
- DX
- body
- SED
- ENGINE
- 4AC
- TRANSMISSION
- ATM
- Model
- COROLLA
- From
- 05.1983
- To
- 10.1984
- Gear Shift Type
- 3FC
- No.of Doors
- 4D
- Vehicle Model
- Corolla
- Driver's Position
- RHD
- Destination
- ARL
Difficulties in parts search?
Difficulties in parts search?
| Description | OEM Part # | Price | |||
|---|---|---|---|---|---|
|
23265
|
23265
90917-11022 Filter, Gas, No.1[05.1983 - 07.1987] 4A#..AE71..RHD |
90917-11022 |
from US $15.50 |
||
|
23271
|
23271
90925-02076
Valve, Thermostatic Vacuum Switching, No.1
[05.1983 - 07.1987] 4A#..AE71 |
90925-02076 |
— | ||
|
23281
|
23281
90925-01014
Valve, Vacuum Transmitting, No.1
[05.1983 - 12.1985] 4A#..AE71..RHD |
90925-01014 |
— | ||
|
23282
|
23282
90925-01043
Valve, Vacuum Transmitting, No.2
[05.1983 - 12.1985] 4A#..AE71..RHD |
90925-01043 |
— | ||
|
23285A
|
23285A
90917-10049 Valve, Check, No.1[05.1983 - 12.1985] 4A#..AE71..RHD |
90917-10049 |
from US $10.24 |
||
|
23286A
|
23286A
90917-10064 Valve, Check, No.2CHECK, NO.2 [05.1983 - 12.1985] 4A#..AE71..RHD |
90917-10064 |
US $39.60 |
||
|
23288
|
23288
90925-04003
Jet, No.1
[05.1983 - 07.1987] 4A#..AE71 |
90925-04003 |
— | ||
|
25706
|
25706
25706-15140 Pipe Sub-Assy, Vacuum Transmitting, No.1VACUUM TRANSMITTING, NO.1 [05.1983 - 07.1987] 4A#..AE71..RHD |
25706-15140 |
US $110.66 |
||
|
9033903002
|
9033903002
90339-03002 PLUG |
90339-03002 |
US $2.88 |
||
|
9041304008
|
9041304008
90413-04008 Way, 3(For Transfer Breather Hose) |
90413-04008 |
from US $6.46 |
||
|
9044511040
|
9044511040
90445-11040
Hose, No.1(For Idle-Up)
|
90445-11040 |
— | ||
|
9046400082
|
9046400082
90464-00082 Clamp(For Resistive Cord) |
90464-00082 |
from US $1.60 |
||
|
9046400085
|
9046400085
90464-00085 New Genuine Part |
90464-00085 |
US $2.97 |
||
|
9046400329
|
9046400329
90464-00329 Clamp (For Fuel Lid Lock Control Cable) |
90464-00329 |
US $2.62 |
||
| replacement | |||||
|
9046400329
|
9046400329
82711-12200 Clamp (For Fuel Lid Lock Control Cable) |
82711-12200 |
from US $1.66 |
||
|
9046712001
|
9046712001
90467-12001 Clip(For Carburetor Fuel Hose) |
90467-12001 |
US $2.18 |
||
| replacement | |||||
|
9046712001
|
9046712001
96132-51100 Clip (For Hose) |
96132-51100 |
from US $1.92 |
||
|
9165140814
|
9165140814
91651-40814 BOLT |
91651-40814 |
from US $2.57 |
||
| replacement | |||||
|
9165140814
|
9165140814
90080-11228 New Genuine Part |
90080-11228 |
US $3.20 |
||
|
9541119330
|
9541119330
95411-19330
New Genuine Part
|
95411-19330 |
— | ||
|
9541119930
|
9541119930
95411-19930
Hose(For Carburetor To Manifold)
|
95411-19930 |
— | ||
| replacement | |||||
|
9541119930
|
9541119930
90999-92002
Air Hose (300 mm)
|
90999-92002 |
— | ||
