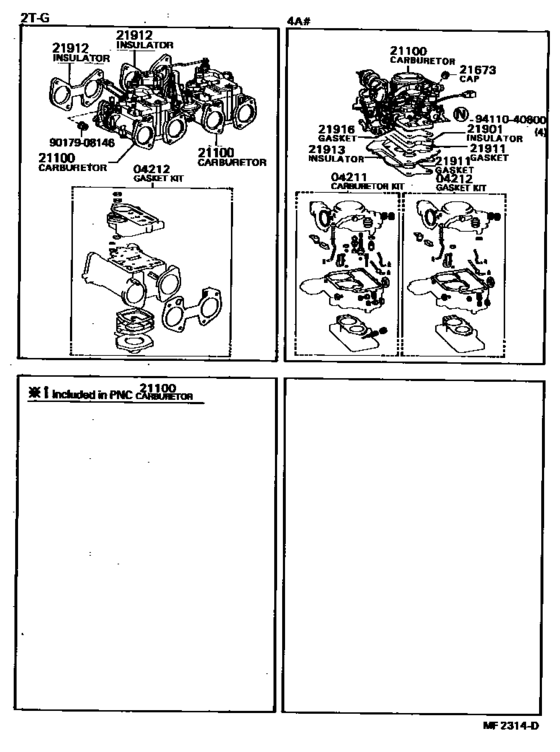

Carburetor Assembly ([08.1979 - ] (7908- )4A#) Diagram Toyota COROLLA
- Year
- 1985 - 1987
- Sales region
- General
- Frame
- AE71
- grade
- DX
- body
- WG
- ENGINE
- 4A
- TRANSMISSION
- MTM
- Model
- COROLLA
- From
- 01.1985
- To
- 07.1987
- Gear Shift Type
- 5F
- No.of Doors
- 4D
- Vehicle Model
- Corolla
- Driver's Position
- RHD
- Destination
- SA
Difficulties in parts search?
Difficulties in parts search?
| Description | OEM Part # | Price | |||
|---|---|---|---|---|---|
|
04211
|
04211
04211-16030 Carburetor Kit[05.1983 - 12.1985] 4A#..AE71..RHD |
04211-16030 |
US $161.62 |
||
| replacement | |||||
|
04211
|
04211
04211-16031 Carburetor Kit[05.1983 - 12.1985] 4A#..AE71..RHD |
04211-16031 |
US $157.25 |
||
|
04211
|
04211
04211-16110 Carburetor Kit[12.1985 - 07.1987] 4A..AE71..SA |
04211-16110 |
US $160.16 |
||
|
04212
|
04212
04212-16010
Gasket Kit, Carburetor
[05.1983 - 12.1985] 4A#..AE71 |
04212-16010 |
— | ||
| replacement | |||||
|
04212
|
04212
04212-16011
Gasket Kit, Carburetor
[05.1983 - 12.1985] 4A#..AE71 |
04212-16011 |
— | ||
|
04212
|
04212
04212-16060 Gasket Kit, CarburetorCARBURETOR [12.1985 - 07.1987] 4A..AE71..SA |
04212-16060 |
US $48.19 |
||
|
21100
|
21100
21100-16100 Carburetor Assy[05.1983 - 12.1985] 4A#..AE71..RHD |
21100-16100 |
US $1,470.56 |
||
|
21100
|
21100
21100-16270 Carburetor Assy[12.1985 - 07.1987] 4A..AE71..SA |
21100-16270 |
US $1,470.56 |
||
|
21673
|
21673
21673-13280
Cap, Idle Limit
[06.1982 - 07.1987] 4A#..AE71..RHD; 4KC..KE70..ARL |
21673-13280 |
— | ||
|
21901
|
21901
21901-15012
Insulator Sub-Assy, Carburetor Heat, No.1
[05.1983 - 07.1987] 4A#..AE71 |
21901-15012 |
— | ||
|
21911
|
21911
21916-15030 Gasket, Carburetor[05.1983 - 07.1987] 4A#..AE71 |
21916-15030 |
US $8.01 |
||
| replacement | |||||
|
21911
|
21911
21916-15031
Gasket, Carburetor
[05.1983 - 07.1987] 4A#..AE71 |
21916-15031 |
— | ||
|
21913
|
21913
21913-15030 Insulator, Carburetor Heat, No.2[05.1983 - 07.1987] 4A#..AE71 |
21913-15030 |
US $22.71 |
||
|
21916
|
21916
21914-15020 Gasket, Carburetor[05.1983 - 07.1987] 4A#..AE71 |
21914-15020 |
US $8.01 |
||
| replacement | |||||
|
21916
|
21916
21914-15021
Gasket, Carburetor
[05.1983 - 07.1987] 4A#..AE71 |
21914-15021 |
— | ||
|
9017908146
|
9017908146
90179-08146
Nut
|
90179-08146 |
— | ||
| replacement | |||||
|
9017908146
|
9017908146
90179-08204 Nut |
90179-08204 |
from US $1.11 |
||
|
9411040800
|
9411040800
94110-40800
Nut(For Steering Damper)
|
94110-40800 |
— | ||
| replacement | |||||
|
9411040800
|
9411040800
94130-00802 Nut, No.1 (For Center Support Bearing) |
94130-00802 |
from US $0.90 |
||
