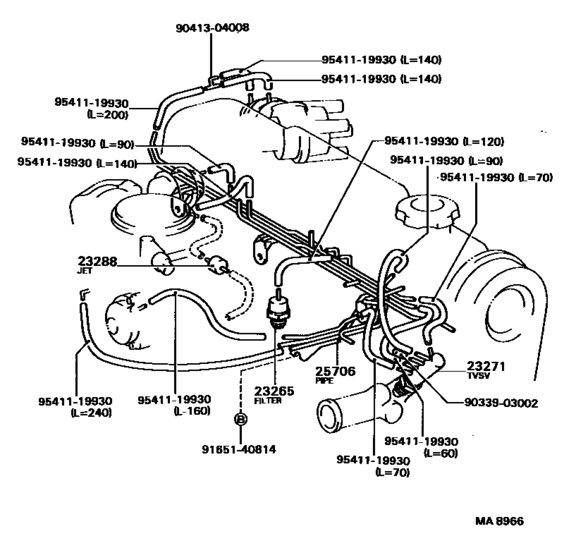

Vacuum Piping ([12.1985 - ] (8512- )4A..SA) Diagram Toyota COROLLA
- Year
- 1985 - 1987
- Sales region
- General
- Frame
- AE71
- grade
- DX
- body
- WG
- ENGINE
- 4A
- TRANSMISSION
- MTM
- Model
- COROLLA
- From
- 01.1985
- To
- 07.1987
- Gear Shift Type
- 5F
- No.of Doors
- 4D
- Vehicle Model
- Corolla
- Driver's Position
- RHD
- Destination
- SA
Difficulties in parts search?
Parts list
Difficulties in parts search?
| Description | OEM Part # | Price | |||
|---|---|---|---|---|---|
|
23265
|
23265
90917-11022 Filter, Gas, No.1[05.1983 - 07.1987] 4A#..AE71..RHD |
90917-11022 |
from US $15.50 |
||
|
23271
|
23271
90925-02076
Valve, Thermostatic Vacuum Switching, No.1
[05.1983 - 07.1987] 4A#..AE71 |
90925-02076 |
— | ||
|
23288
|
23288
90925-04003
Jet, No.1
[05.1983 - 07.1987] 4A#..AE71 |
90925-04003 |
— | ||
|
25706
|
25706
25706-15140 Pipe Sub-Assy, Vacuum Transmitting, No.1VACUUM TRANSMITTING, NO.1 [05.1983 - 07.1987] 4A#..AE71..RHD |
25706-15140 |
US $110.66 |
||
|
9033903002
|
9033903002
90339-03002 PLUG |
90339-03002 |
US $2.88 |
||
|
9041304008
|
9041304008
90413-04008 Way, 3(For Transfer Breather Hose) |
90413-04008 |
from US $6.46 |
||
|
9165140814
|
9165140814
91651-40814 BOLT |
91651-40814 |
from US $1.42 |
||
| replacement | |||||
|
9165140814
|
9165140814
90080-11228 New Genuine Part |
90080-11228 |
US $3.20 |
||
|
9541119930
|
9541119930
95411-19930
Hose(For Carburetor To Manifold)
|
95411-19930 |
— | ||
| replacement | |||||
|
9541119930
|
9541119930
90999-92002
Air Hose (300 mm)
|
90999-92002 |
— | ||
