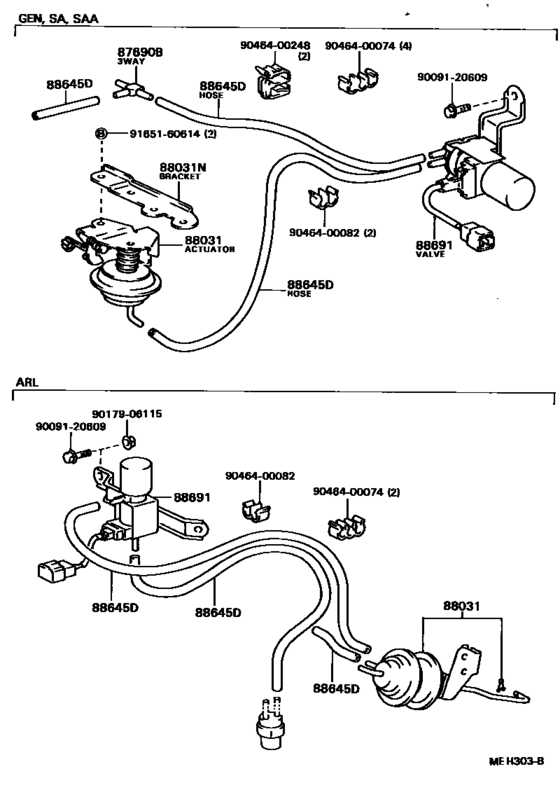

Heating & Air Conditioning - Vacuum Piping ([05.1983 - ] (8305- )AE8#..CS,CSX,DX,GL,S,SE,STD,XL) Diagram Toyota COROLLA
- Year
- 1983 - 1984
- Sales region
- Europe
- Frame
- AE80
- grade
- DX
- body
- SED
- ENGINE
- 2AL
- TRANSMISSION
- MTM
- Model
- COROLLA(NAP/SED/CP/HB/LB/WG)
- From
- 05.1983
- To
- 10.1984
- Gear Shift Type
- 4F
- No.of Doors
- 4DS
- Vehicle Model
- Corolla
- Driver's Position
- LHD
- Destination
- GEN
Difficulties in parts search?
Difficulties in parts search?
| Description | OEM Part # | Price | |||
|---|---|---|---|---|---|
|
87690B
|
87690B
90413-04005 Way, 3, No.1 (For Front Drive Shift)[05.1983 - 04.1988] AE8#..(DX,GL,SE,STD,XL)..(GEN,SA,SAA) |
90413-04005 |
from US $3.04 |
||
|
88031
|
88031
88031-16020 Actuator Set, Idle-Up[05.1983 - 04.1988] AE8#..(DX,GL,SE,STD,XL)..(GEN,SA,SAA) |
88031-16020 |
US $182 |
||
|
88031N
|
88031N
88688-12280
Bracket, Idle-Up Actuator
[05.1983 - 04.1988] AE8#..(DX,GL,SE,STD,XL)..(GEN,SA,SAA) |
88688-12280 |
— | ||
|
88645D
|
88645D
95411-10030
Hose (For Idle Up Device)
[05.1983 - 07.1987] AE8#..(4DS,5D,5DS)..LHD..(GEN,SAA) *H,L=40,MARK=#0 |
95411-10030 |
— | ||
| replacement | |||||
|
88645D
|
88645D
90999-92002
Air Hose (300 mm)
[05.1983 - 07.1987] AE8#..(4DS,5D,5DS)..LHD..(GEN,SAA) *H,L=40,MARK=#0 |
90999-92002 |
— | ||
|
88645D
|
88645D
95411-10060 Hose, Vacuum[05.1983 - 07.1987] AE8#..(4DS,5D,5DS)..LHD..(GEN,SAA) *H,L=360,MARK=#0 |
95411-10060 |
US $12.23 |
||
| replacement | |||||
|
88645D
|
88645D
90999-92003
Hose, Breather (For Transfer Case)
[05.1983 - 07.1987] AE8#..(4DS,5D,5DS)..LHD..(GEN,SAA) *H,L=360,MARK=#0 |
90999-92003 |
— | ||
|
88645D
|
88645D
95411-19930
Hose(For Carburetor To Manifold)
[05.1983 - 07.1987] AE8#..(4DS,5D,5DS)..LHD..(GEN,SAA) *H,L=260,MARK=#* |
95411-19930 |
— | ||
| replacement | |||||
|
88645D
|
88645D
90999-92002
Air Hose (300 mm)
[05.1983 - 07.1987] AE8#..(4DS,5D,5DS)..LHD..(GEN,SAA) *H,L=260,MARK=#* |
90999-92002 |
— | ||
|
88691
|
88691
88690-12280
Valve, Magnet (For Idle Up Device)
[05.1983 - 05.1985] CE80..GEN; AE8#,EE80..LHD..(DX,GL,STD,XL)..(GEN,SAA) |
88690-12280 |
— | ||
|
9009120609
|
9009120609
90091-20609 BOLT |
90091-20609 |
US $0.44 |
||
|
9017906115
|
9017906115
90179-06115 Nut (For Rear Wiper Arm Setting) |
90179-06115 |
US $1.92 |
||
|
9046400074
|
9046400074
90464-00074 Joint, No.1 (For Idle Up Divice) |
90464-00074 |
US $1.92 |
||
|
9046400082
|
9046400082
90464-00082 Clamp(For Resistive Cord) |
90464-00082 |
US $1.60 |
||
|
9046400248
|
9046400248
90464-00248 New Genuine Part |
90464-00248 |
US $1.89 |
||
|
9165160614
|
9165160614
91651-60614 Bolt |
91651-60614 |
US $1.12 |
||
