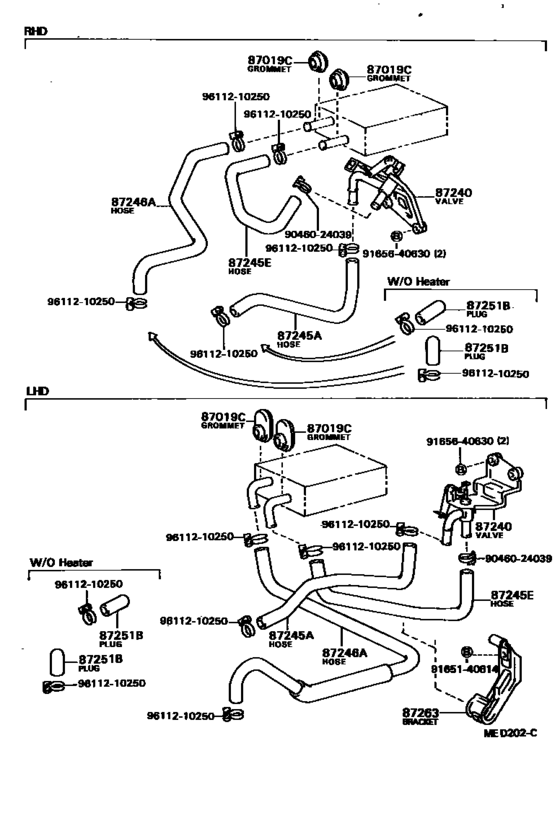

Heating & Air Conditioning - Water Piping ([05.1983 - ] (8305- )AE8#) Diagram Toyota COROLLA
- Year
- 1983 - 1984
- Sales region
- Europe
- Frame
- AE80
- grade
- DX
- body
- SED
- ENGINE
- 2AL
- TRANSMISSION
- MTM
- Model
- COROLLA(NAP/SED/CP/HB/LB/WG)
- From
- 05.1983
- To
- 10.1984
- Gear Shift Type
- 4F
- No.of Doors
- 4DS
- Vehicle Model
- Corolla
- Driver's Position
- LHD
- Destination
- GEN
Difficulties in parts search?
Difficulties in parts search?
| Description | OEM Part # | Price | |||
|---|---|---|---|---|---|
|
87019C
|
87019C
90480-01015
Grommet, Heater Hose
[05.1983 - 07.1987] AE8#,CE80,EE80..LHD |
90480-01015 |
— | ||
|
87240
|
87240
87240-12200
Valve Assy, Heater Water
[05.1983 - 01.1986] AE8#,CE80,EE80..LHD..(DX,GL,STD,XL) |
87240-12200 |
— | ||
| replacement | |||||
|
87240
|
87240
87240-12201
Valve Assy, Heater Water
[05.1983 - 01.1986] AE8#,CE80,EE80..LHD..(DX,GL,STD,XL) |
87240-12201 |
— | ||
|
87245A
|
87245A
87245-12730 Hose, Heater Water, Inlet AHEATER WATER, INLET A [05.1983 - 07.1987] AE8#..LHD..(DX,GL,STD,XL) |
87245-12730 |
US $21.99 |
||
|
87245E
|
87245E
87245-12680 Hose, Heater Water, Inlet EHEATER WATER, INLET E [05.1983 - 07.1987] AE8#,CE80,EE80..LHD..(DX,GL,STD,XL) |
87245-12680 |
US $24.61 |
||
|
87246A
|
87246A
87245-12740 Hose, Heater Water, Outlet AHEATER WATER, OUTLET A [05.1983 - 04.1987] AE8#..LHD |
87245-12740 |
US $42.66 |
||
|
87251B
|
87251B
90339-16007
Plug
[05.1983 - 07.1987] AE8#,CE80..GEN,SAA W/O HEATER |
90339-16007 |
— | ||
| replacement | |||||
|
87251B
|
87251B
90339-16001 Plug, Heater Water[05.1983 - 07.1987] AE8#,CE80..GEN,SAA W/O HEATER |
90339-16001 |
from US $2.88 |
||
|
87263
|
87263
87263-12220
Bracket, Heater Water Pipe, No.1
[05.1983 - 04.1987] AE8#,CE80..LHD |
87263-12220 |
— | ||
|
9046024039
|
9046024039
90460-24039 Clamp Or Clip, Hose(For Oil Cooler Hose) |
90460-24039 |
US $1.54 |
||
| replacement | |||||
|
9046024039
|
9046024039
90467-21010 Clip(For Ventilation Hose No.2) |
90467-21010 |
from US $4.49 |
||
|
9165140614
|
9165140614
91651-40614 Bolt |
91651-40614 |
from US $0.78 |
||
|
9165640630
|
9165640630
91656-40630 New Genuine Part |
91656-40630 |
US $1.89 |
||
| replacement | |||||
|
9165640630
|
9165640630
91652-60630 New Genuine Part |
91652-60630 |
US $1.60 |
||
|
9611210250
|
9611210250
96112-10250 Clamp Or Clip, Hose(For Oil Cooler Hose) |
96112-10250 |
from US $2.75 |
||
