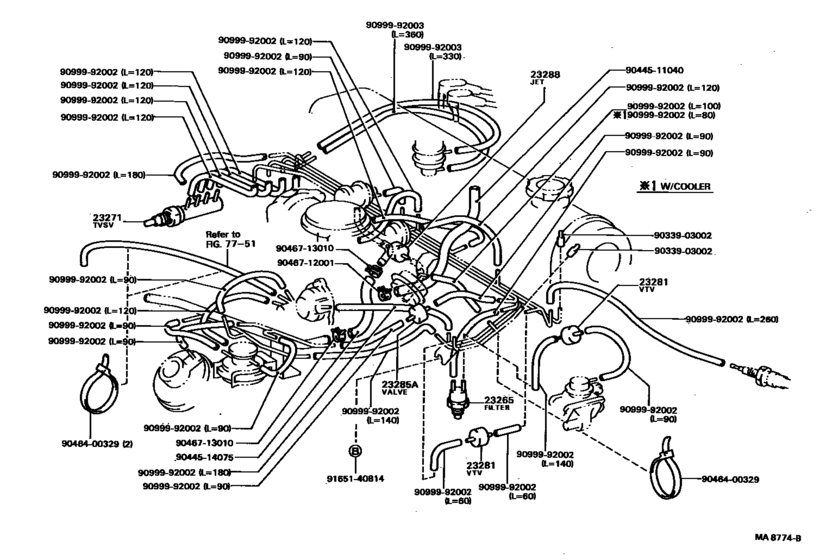

Vacuum Piping ([11.1985 - ] (8511- )2ALC,4ALC..ARL) Diagram Toyota COROLLA
- Year
- 1984 - 1986
- Sales region
- Europe
- Frame
- AE80
- grade
- CS
- body
- SED
- ENGINE
- 2ALC
- TRANSMISSION
- MTM
- Model
- COROLLA(NAP/SED/CP/HB/LB/WG)
- From
- 11.1984
- To
- 05.1986
- Gear Shift Type
- 4F
- No.of Doors
- 4DS
- Vehicle Model
- Corolla
- Driver's Position
- RHD
- Destination
- ARL
Difficulties in parts search?
Difficulties in parts search?
| Description | OEM Part # | Price | |||
|---|---|---|---|---|---|
|
23265
|
23265
90917-11023 Filter, Gas, No.1[01.1984 - 07.1988] 4AL..AE82;2AL#,4ALC..AE8#..ARL,EUR,SAA |
90917-11023 |
from US $23.41 |
||
|
23271
|
23271
90925-02076
Valve, Thermostatic Vacuum Switching, No.1
[01.1984 - 07.1988] 4AL..AE82;2AL#,4ALC..AE8#..ARL,EUR,SAA |
90925-02076 |
— | ||
|
23281
|
23281
90925-01014
Valve, Vacuum Transmitting, No.1
[05.1983 - 07.1988] 2ALC,4ALC..AE8#;4AL..AE82..4DS..5F..GL..EUG |
90925-01014 |
— | ||
|
23285A
|
23285A
90917-10049 Valve, Check, No.1[05.1983 - 07.1988] 2ALC,4ALC..AE8#;4AL..AE82..4DS..5F..GL..EUG |
90917-10049 |
from US $10.24 |
||
|
23288
|
23288
90925-04003
Jet, No.1
[01.1984 - 07.1988] 4AL..AE82;4ALC..AE82..ARL;4ALC..AE82..SDZ; 2AL#..AE80..ARL,EUR,SAA |
90925-04003 |
— | ||
|
9033903002
|
9033903002
90339-03002 PLUG |
90339-03002 |
US $2.88 |
||
|
9044511040
|
9044511040
90445-11040
Hose, No.1(For Idle-Up)
|
90445-11040 |
— | ||
|
9044514075
|
9044514075
90445-14075 Hose, No.1(For Air Pipe) |
90445-14075 |
US $5.39 |
||
|
9046400329
|
9046400329
90464-00329 Clamp (For Fuel Lid Lock Control Cable) |
90464-00329 |
US $2.62 |
||
| replacement | |||||
|
9046400329
|
9046400329
82711-12200 Clamp (For Fuel Lid Lock Control Cable) |
82711-12200 |
from US $1.66 |
||
|
9046712001
|
9046712001
90467-12001 Clip(For Carburetor Fuel Hose) |
90467-12001 |
US $2.18 |
||
| replacement | |||||
|
9046712001
|
9046712001
96132-51100 Clip (For Hose) |
96132-51100 |
from US $1.79 |
||
|
9046713010
|
9046713010
90467-13010 Clip(For Ventilation Hose No.2) |
90467-13010 |
US $2.48 |
||
| replacement | |||||
|
9046713010
|
9046713010
96132-51300 Clip(For Ventilation Hose No.2) |
96132-51300 |
from US $1.92 |
||
|
9099992002
|
9099992002
90999-92002
Air Hose (300 mm)
|
90999-92002 |
— | ||
|
9099992003
|
9099992003
90999-92003
Hose, Breather (For Transfer Case)
|
90999-92003 |
— | ||
|
9165140814
|
9165140814
91651-40814 BOLT |
91651-40814 |
from US $2.57 |
||
| replacement | |||||
|
9165140814
|
9165140814
90080-11228 New Genuine Part |
90080-11228 |
US $3.20 |
||
