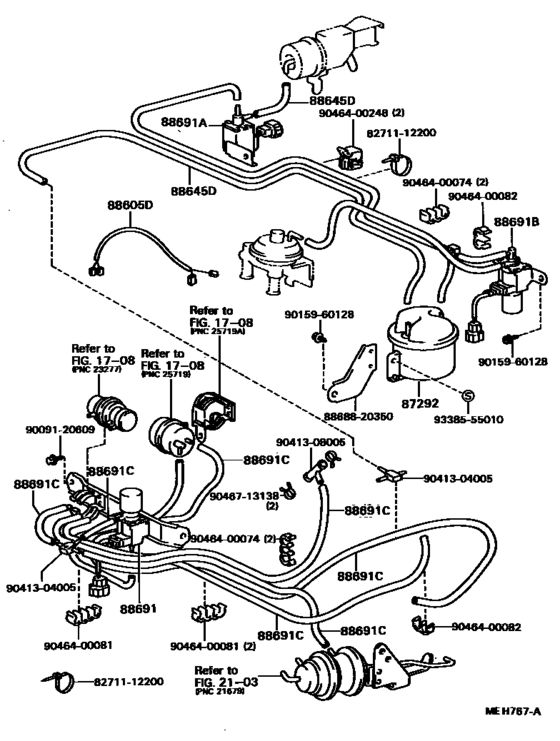

Heating & Air Conditioning - Vacuum Piping ([05.1985 - ] (8505- )AE81) Diagram Toyota COROLLA
- Year
- 1983 - 1987
- Sales region
- Japan
- Frame
- AE81
- grade
- DX
- ENGINE
- 3ALU
- TRANSMISSION
- MTM
- Model
- COROLLA
- From
- 05.1983
- To
- 04.1987
- Gear Shift Type
- 4F
- No.of Doors
- 4D
- Vehicle Model
- Corolla
Difficulties in parts search?
Difficulties in parts search?
| Description | OEM Part # | Price | |||
|---|---|---|---|---|---|
|
88691
|
88691
88690-12290
Valve, Magnet (For Idle Up Device)
[05.1983 - 05.1985] AE80,81 |
88690-12290 |
— | ||
|
88691
|
88691
88690-12410
Valve, Magnet (For Idle Up Device)
[05.1985 - 04.1987] AE81 |
88690-12410 |
— | ||
|
88691C
|
88691C
95411-11260 Hose, Vacuum (For Idle Up Device), No.1[05.1985 - 04.1987] AE81 MARK=#12,*H,L=510 |
95411-11260 |
US $11.50 |
||
| replacement | |||||
|
88691C
|
88691C
90999-92003
Hose, Breather (For Transfer Case)
[05.1985 - 04.1987] AE81 MARK=#12,*H,L=510 |
90999-92003 |
— | ||
|
88691C
|
88691C
95411-11430 Hose, Vacuum (For Idle Up Device), No.1[05.1985 - 04.1987] AE81 MARK=#14,*H,L=100; AE81 MARK=#14,*H,L=60 |
95411-11430 |
US $6.26 |
||
| replacement | |||||
|
88691C
|
88691C
90999-92002
Air Hose (300 mm)
[05.1985 - 04.1987] AE81 MARK=#14,*H,L=100; AE81 MARK=#14,*H,L=60 |
90999-92002 |
— | ||
|
88691C
|
88691C
95411-11460 Hose, Vacuum (For Idle Up Device), No.1[05.1985 - 04.1987] AE81 MARK=#14,*H,L=330 |
95411-11460 |
US $11.50 |
||
| replacement | |||||
|
88691C
|
88691C
90999-92003
Hose, Breather (For Transfer Case)
[05.1985 - 04.1987] AE81 MARK=#14,*H,L=330 |
90999-92003 |
— | ||
|
88691C
|
88691C
95411-19930
Hose(For Carburetor To Manifold)
[05.1985 - 04.1987] AE81 ＊Ｈ，Ｌ＝２２０，マーク＝＃＊ |
95411-19930 |
— | ||
| replacement | |||||
|
88691C
|
88691C
90999-92002
Air Hose (300 mm)
[05.1985 - 04.1987] AE81 ＊Ｈ，Ｌ＝２２０，マーク＝＃＊ |
90999-92002 |
— | ||
|
88691C
|
88691C
95411-19960
Hose, Vacuum, No.2 (For Front Drive Shift)
[05.1985 - 04.1987] AE81 ＊Ｈ，Ｌ＝４８０，マーク＝＃＊ |
95411-19960 |
— | ||
| replacement | |||||
|
88691C
|
88691C
90999-92003
Hose, Breather (For Transfer Case)
[05.1985 - 04.1987] AE81 ＊Ｈ，Ｌ＝４８０，マーク＝＃＊ |
90999-92003 |
— | ||
|
8271112200
|
8271112200
82711-12200 Clamp (For Fuel Lid Lock Control Cable) |
82711-12200 |
from US $1.66 |
||
|
8868820350
|
8868820350
88688-20350
Bracket, Cooler Diaphragm
|
88688-20350 |
— | ||
|
9009120609
|
9009120609
90091-20609 BOLT |
90091-20609 |
US $0.44 |
||
|
9015960128
|
9015960128
90159-60128 New Genuine Part |
90159-60128 |
US $1.92 |
||
|
9041304005
|
9041304005
90413-04005 Way, 3, No.1 (For Front Drive Shift) |
90413-04005 |
from US $3.04 |
||
|
9041308005
|
9041308005
90413-08005
Way, 3
|
90413-08005 |
— | ||
|
9046400074
|
9046400074
90464-00074 Joint, No.1 (For Idle Up Divice) |
90464-00074 |
US $1.92 |
||
|
9046400081
|
9046400081
90464-00081
Clamp (For Idle Up Divice), No.1
|
90464-00081 |
— | ||
|
9046400082
|
9046400082
90464-00082 Clamp(For Resistive Cord) |
90464-00082 |
from US $1.60 |
||
|
9046400248
|
9046400248
90464-00248 New Genuine Part |
90464-00248 |
US $1.89 |
||
|
9046713138
|
9046713138
90467-13138
Clip(For Fuel Hose)
|
90467-13138 |
— | ||
| replacement | |||||
|
9046713138
|
9046713138
96132-51300 Clip(For Ventilation Hose No.2) |
96132-51300 |
from US $1.56 |
||
|
9338555010
|
9338555010
93385-55010 New Genuine Part |
93385-55010 |
US $1.75 |
||
