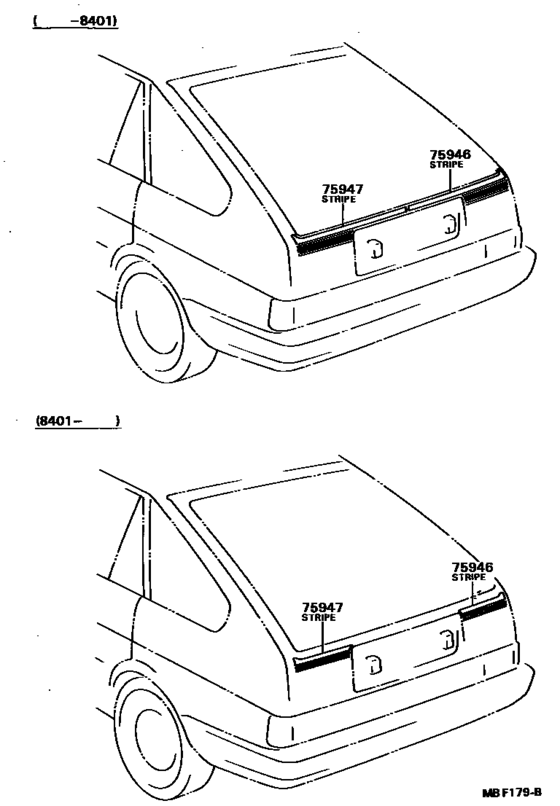

Body Stripe ([05.1983 - ] (8305- )ZX) Diagram Toyota COROLLA
- Year
- 1984 - 1987
- Sales region
- Japan
- Frame
- AE81
- grade
- ZX
- ENGINE
- 3ALU
- TRANSMISSION
- ATM
- Model
- COROLLA
- From
- 01.1984
- To
- 04.1987
- Gear Shift Type
- 4FC
- No.of Doors
- 5D3
- Vehicle Model
- Corolla
Difficulties in parts search?
Difficulties in parts search?
| Description | OEM Part # | Price | |||
|---|---|---|---|---|---|
|
75946
|
75946
75946-12010-01
Stripe, Back Door, Rh
[05.1983 - 01.1984] AE81,82..ZX RH,BLACK,BLACK |
75946-12010-01 |
— | ||
|
75946
|
75946
75946-12010-03
Stripe, Back Door, Rh
[05.1983 - 01.1984] AE81,82..ZX RH,SILVER,GRAY |
75946-12010-03 |
— | ||
|
75946
|
75946
75946-12020-01 Stripe, Back Door, Rh[01.1984 - 07.1984] AE81,82..ZX RH,BLACK,BLACK |
75946-12020-01 |
US $64.36 |
||
| replacement | |||||
|
75946
|
75946
75946-12021-01 Stripe, Back Door, Rh[01.1984 - 07.1984] AE81,82..ZX RH,BLACK,BLACK |
75946-12021-01 |
US $61.30 |
||
|
75946
|
75946
75946-12020-03
Stripe, Back Door, Rh
[01.1984 - 07.1984] AE81,82..ZX RH,SILVER,GRAY |
75946-12020-03 |
— | ||
| replacement | |||||
|
75946
|
75946
75946-12021-03
Stripe, Back Door, Rh
[01.1984 - 07.1984] AE81,82..ZX RH,SILVER,GRAY |
75946-12021-03 |
— | ||
|
75946
|
75946
75946-12021-01 Stripe, Back Door, Rh[07.1984 - 05.1985] AE81,82..ZX RH,BLACK,BLACK |
75946-12021-01 |
US $61.30 |
||
|
75946
|
75946
75946-12021-03
Stripe, Back Door, Rh
[07.1984 - 05.1985] AE81,82..ZX RH,SILVER,SILVER |
75946-12021-03 |
— | ||
|
75946
|
75946
75946-12030-01 Stripe, Back Door, RhBACK DOOR, RH [05.1985 - 04.1987] AE8#..ZX RH,BLACK,BLACK |
75946-12030-01 |
US $61.44 |
||
|
75946
|
75946
75946-12030-03
Stripe, Back Door, Rh
[05.1985 - 05.1986] AE8#..ZX RH,SILVER,SILVER |
75946-12030-03 |
— | ||
|
75947
|
75947
75947-12010-01
Stripe, Back Door, Lh
[05.1983 - 01.1984] AE81,82..ZX LH,BLACK,BLACK |
75947-12010-01 |
— | ||
|
75947
|
75947
75947-12010-03
Stripe, Back Door, Lh
[05.1983 - 01.1984] AE81,82..ZX LH,SILVER,GRAY |
75947-12010-03 |
— | ||
|
75947
|
75947
75947-12020-01 Stripe, Back Door, Lh[01.1984 - 07.1984] AE81,82..ZX LH,BLACK,BLACK |
75947-12020-01 |
US $64.36 |
||
| replacement | |||||
|
75947
|
75947
75947-12021-01 Stripe, Back Door, Lh[01.1984 - 07.1984] AE81,82..ZX LH,BLACK,BLACK |
75947-12021-01 |
US $61.30 |
||
|
75947
|
75947
75947-12020-03 Stripe, Back Door, Lh[01.1984 - 07.1984] AE81,82..ZX LH,SILVER,GRAY |
75947-12020-03 |
US $64.36 |
||
| replacement | |||||
|
75947
|
75947
75947-12021-03
Stripe, Back Door, Lh
[01.1984 - 07.1984] AE81,82..ZX LH,SILVER,GRAY |
75947-12021-03 |
— | ||
|
75947
|
75947
75947-12021-01 Stripe, Back Door, Lh[07.1984 - 05.1985] AE81,82..ZX LH,BLACK,BLACK |
75947-12021-01 |
US $61.30 |
||
|
75947
|
75947
75947-12021-03
Stripe, Back Door, Lh
[07.1984 - 05.1985] AE81,82..ZX LH,SILVER,SILVER |
75947-12021-03 |
— | ||
|
75947
|
75947
75947-12030-01 Stripe, Back Door, LhBACK DOOR, LH [05.1985 - 04.1987] AE8#..ZX LH,BLACK,BLACK |
75947-12030-01 |
US $61.44 |
||
|
75947
|
75947
75947-12030-03
Stripe, Back Door, Lh
[05.1985 - 05.1986] AE8#..ZX LH,SILVER,SILVER |
75947-12030-03 |
— | ||
