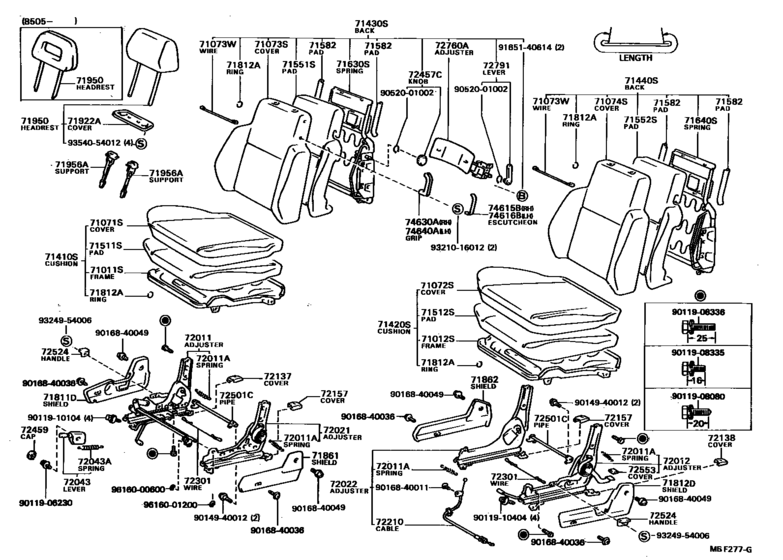

Front Seat & Seat Track ([05.1983 - ] (8305- )FXR,FXT,GT,SR,ZX) Diagram Toyota COROLLA
- Year
- 1984 - 1987
- Sales region
- Japan
- Frame
- AE82
- grade
- GT
- ENGINE
- 4AGELU
- TRANSMISSION
- ATM
- Model
- COROLLA
- From
- 10.1984
- To
- 04.1987
- Gear Shift Type
- 4FC
- No.of Doors
- 4D
- Vehicle Model
- Corolla
Difficulties in parts search?
Difficulties in parts search?
| Description | OEM Part # | Price | |||
|---|---|---|---|---|---|
|
71011S
|
71011S
71011-12180
Frame Sub-Assy, Front Seat Cushion, Rh
[05.1983 - 04.1986] AE81,82..FXR,FXT,GT,SR,ZX; AE81,82..SE SALOON |
71011-12180 |
— | ||
|
71011S
|
71011S
71011-12200
Frame Sub-Assy, Front Seat Cushion, Rh
[04.1986 - 04.1987] AE8#..FXR,FXT,GT,ZX; AE8#..SE SALOON; AE81,EE80..4D..GL LIME |
71011-12200 |
— | ||
|
71012S
|
71012S
71011-12170
Frame Sub-Assy, Front Seat Cushion, Rh
[05.1983 - 04.1986] AE8#,CE80,EE80 |
71011-12170 |
— | ||
|
71012S
|
71012S
71011-12190 Frame Sub-Assy, Front Seat Cushion, Rh[04.1986 - 04.1987] AE8#,CE80,EE80 |
71011-12190 |
US $149.97 |
||
|
71071S
|
71071S
71071-1E500-03
Cover, Front Seat Cushion, Rh(For Separate Type)
[08.1984 - 05.1985] AE82..FXT,GT FB,GRAY,GRAY,TRIM1# |
71071-1E500-03 |
— | ||
|
71071S
|
71071S
71071-1E501-03
Cover, Front Seat Cushion, Rh(For Separate Type)
[05.1985 - 04.1987] AE82..FXT,GT FB,GRAY,GRAY,TRIM1# |
71071-1E501-03 |
— | ||
|
71072S
|
71072S
71071-1E501-03
Cover, Front Seat Cushion, Rh(For Separate Type)
[05.1985 - 04.1987] AE82..FXT,GT FB,GRAY,GRAY,TRIM1# |
71071-1E501-03 |
— | ||
|
71072S
|
71072S
71071-1E510-03
Cover, Front Seat Cushion, Lh(For Separate Type)
[10.1984 - 05.1985] AE82..FXT,GT FB,GRAY,GRAY,TRIM1# |
71071-1E510-03 |
— | ||
|
71073S
|
71073S
71073-1E700-03
Cover, Front Seat Back, Rh(For Separate Type)
[10.1984 - 04.1987] AE82..FXT,GT FB,GRAY,GRAY,TRIM1# |
71073-1E700-03 |
— | ||
|
71073W
|
71073W
90580-20012
Wire, Front Seat Back Cover
[05.1983 - 05.1985] AE81,82..FXR,FXT,GT,SR,ZX L=420 |
90580-20012 |
— | ||
| replacement | |||||
|
71073W
|
71073W
90580-20165
Wire, Front Seat Cushion Cover
[05.1983 - 05.1985] AE81,82..FXR,FXT,GT,SR,ZX L=420 |
90580-20165 |
— | ||
|
71073W
|
71073W
90580-20020
Wire, Front Seat Cushion Cover
[05.1983 - 05.1985] AE81,82..FXR,FXT,GT,SR,ZX L=450 |
90580-20020 |
— | ||
|
71074S
|
71074S
71074-1A680-03
Cover, Front Seat Back, Lh(For Separate Type)
[10.1984 - 04.1987] AE82..FXT,GT FB,GRAY,GRAY,TRIM1# |
71074-1A680-03 |
— | ||
|
71410S
|
71410S
71410-1H070-03
Cushion Assy, Front Seat, Rh(For Separate Type)
[10.1984 - 05.1985] AE82..FXT,GT FB,GRAY,GRAY,TRIM1# |
71410-1H070-03 |
— | ||
|
71410S
|
71410S
71410-1H071-03
Cushion Assy, Front Seat, Rh(For Separate Type)
[05.1985 - 04.1986] AE82..FXT,GT FB,GRAY,GRAY,TRIM1# |
71410-1H071-03 |
— | ||
|
71410S
|
71410S
71410-1H072-03
Cushion Assy, Front Seat, Rh(For Separate Type)
[04.1986 - 04.1987] AE82..FXT,GT FB,GRAY,GRAY,TRIM1# |
71410-1H072-03 |
— | ||
|
71420S
|
71420S
71410-1H080-03
Cushion Assy, Front Seat, Lh (For Separate Type)
[08.1984 - 05.1985] AE82..FXT,GT FB,GRAY,GRAY,TRIM1# |
71410-1H080-03 |
— | ||
|
71420S
|
71420S
71410-1H081-03
Cushion Assy, Front Seat, Lh (For Separate Type)
[05.1985 - 04.1986] AE82..FXT,GT FB,GRAY,GRAY,TRIM1# |
71410-1H081-03 |
— | ||
|
71420S
|
71420S
71410-1H082-03
Cushion Assy, Front Seat, Lh (For Separate Type)
[04.1986 - 04.1987] AE82..FXT,GT FB,GRAY,GRAY,TRIM1# |
71410-1H082-03 |
— | ||
|
71430S
|
71430S
71430-1H110-03
Back Assy, Front Seat, Rh(For Separate Type)
[10.1984 - 04.1987] AE82..FXT,GT FB,GRAY,GRAY,TRIM1# |
71430-1H110-03 |
— | ||
|
71440S
|
71440S
71440-1H100-03
Back Assy, Front Seat, Lh(For Separate Type)
[10.1984 - 04.1987] AE82..FXT,GT FB,GRAY,GRAY,TRIM1# |
71440-1H100-03 |
— | ||
|
71511S
|
71511S
71511-12500
Pad, Front Seat Cushion, Rh(For Separate Type)
[05.1983 - 05.1985] AE81,82..FXR,FXT,GT,SR,ZX |
71511-12500 |
— | ||
|
71511S
|
71511S
71511-12530
Pad, Front Seat Cushion, Rh(For Separate Type)
[05.1985 - 04.1987] AE8#..FXR,FXT,GT,ZX |
71511-12530 |
— | ||
|
71512S
|
71512S
71511-12500
Pad, Front Seat Cushion, Rh(For Separate Type)
[05.1983 - 05.1985] AE81,82..FXR,FXT,GT,SR,ZX |
71511-12500 |
— | ||
|
71512S
|
71512S
71511-12530
Pad, Front Seat Cushion, Rh(For Separate Type)
[05.1985 - 04.1987] AE8#..FXR,FXT,GT,ZX |
71511-12530 |
— | ||
|
71551S
|
71551S
71551-16110 Pad, Front Seat Back, Rh(For Separate Type)[05.1983 - 10.1985] AE81,82..FXR,FXT,GT,SR,ZX |
71551-16110 |
US $343.62 |
||
| replacement | |||||
|
71551S
|
71551S
71551-16120
Pad, Front Seat Back, Rh(For Separate Type)
[05.1983 - 10.1985] AE81,82..FXR,FXT,GT,SR,ZX |
71551-16120 |
— | ||
|
71551S
|
71551S
71551-16120
Pad, Front Seat Back, Rh(For Separate Type)
[10.1985 - 04.1987] AE8#..FXR,FXT,GT,ZX |
71551-16120 |
— | ||
|
71552S
|
71552S
71551-16110 Pad, Front Seat Back, Rh(For Separate Type)[05.1983 - 10.1985] AE81,82..FXR,FXT,GT,SR,ZX |
71551-16110 |
US $343.62 |
||
| replacement | |||||
|
71552S
|
71552S
71551-16120
Pad, Front Seat Back, Rh(For Separate Type)
[05.1983 - 10.1985] AE81,82..FXR,FXT,GT,SR,ZX |
71551-16120 |
— | ||
|
71552S
|
71552S
71551-16120
Pad, Front Seat Back, Rh(For Separate Type)
[10.1985 - 04.1987] AE8#..FXR,FXT,GT,ZX |
71551-16120 |
— | ||
|
71582
|
71582
71582-12090
Pad, Front Seat Back Corner, B
[05.1983 - 04.1987] AE81,82..FXR,FXT,GT,SR,ZX |
71582-12090 |
— | ||
|
71630S
|
71630S
71630-16050
Spring Assy, Front Seat Back, Rh(For Separate Type)
[10.1984 - 05.1985] AE82..FXT,GT |
71630-16050 |
— | ||
|
71640S
|
71640S
71640-16020
Spring Assy, Front Seat Back, Lh(For Separate Type)
[10.1984 - 05.1985] AE82..FXT,GT |
71640-16020 |
— | ||
|
71811D
|
71811D
71811-12100-03
Shield, Front Seat Cushion, Rh
[05.1983 - 04.1987] AE81,82..FXR,FXT,GT,SR,ZX GRAY,GRAY,TRIM1# |
71811-12100-03 |
— | ||
|
71812A
|
71812A
90468-18071
Clip (For Front Seat Cushion Cover)
[05.1983 - 04.1987] AE8#,CE80,EE80 |
90468-18071 |
— | ||
| replacement | |||||
|
71812A
|
71812A
90468-16019 Clip (For Rear Seat Back)[05.1983 - 04.1987] AE8#,CE80,EE80 |
90468-16019 |
from US $0.78 |
||
|
71812D
|
71812D
71812-12070-03 Shield, Front Seat Cushion, LhFRONT SEAT CUSHION, LH [05.1983 - 04.1987] AE81,82..(4D,5D2,5D3)..(FXR,GT,SR,ZX) GRAY,GRAY,TRIM1# |
71812-12070-03 |
US $46.74 |
||
|
71861
|
71861
71861-12030-03
Shield, Front Seat Cushion, Inner Rh
[05.1983 - 04.1987] AE81,82..FXR,FXT,GT,SR,ZX GRAY,GRAY,TRIM1# |
71861-12030-03 |
— | ||
|
71862
|
71862
71862-12040-03
Shield, Front Seat Cushion, Inner Lh
[05.1983 - 04.1987] AE81,82..(4D,5D2,5D3)..(FXR,GT,SR,ZX) GRAY,GRAY,TRIM1# |
71862-12040-03 |
— | ||
|
71922A
|
71922A
71922-32010-13
Cover, Front Seat Headrest Under
[05.1983 - 05.1985] AE81,82..FXR,FXT,GT,SR,ZX GRAY,GRAY,TRIM1# |
71922-32010-13 |
— | ||
|
71950
|
71950
71910-12480-03
Headrest Assy, Front Seat
[10.1984 - 05.1985] AE82..FXT,GT GRAY,GRAY,TRIM1# |
71910-12480-03 |
— | ||
|
71950
|
71950
71910-12540-01 Headrest Assy, Front SeatFRONT SEAT [05.1985 - 04.1987] AE8#..FXR,FXT,GT,ZX BLACK,BLACK,TRIM1# |
71910-12540-01 |
US $451.36 |
||
|
71956A
|
71956A
71930-10060-01
Support, Front Seat Headrest
[10.1984 - 05.1985] AE81,82..FXD,FXG,FXL,FXR,FXT,GT ロック付,W/LOCK,BLACK,BLACK,TRIM1# |
71930-10060-01 |
— | ||
| replacement | |||||
|
71956A
|
71956A
71930-10060-B1
Support, Front Seat Headrest
[10.1984 - 05.1985] AE81,82..FXD,FXG,FXL,FXR,FXT,GT ロック付,W/LOCK,BLACK,BLACK,TRIM1# |
71930-10060-B1 |
— | ||
|
71956A
|
71956A
71931-10010-01
Support, Front Seat Headrest
[10.1984 - 05.1985] AE81,82..FXD,FXG,FXL,FXR,FXT,GT ロック無,W/O LOCK,BLACK,BLACK,TRIM1# |
71931-10010-01 |
— | ||
| replacement | |||||
|
71956A
|
71956A
71931-10010-B1
Support, Front Seat Headrest
[10.1984 - 05.1985] AE81,82..FXD,FXG,FXL,FXR,FXT,GT ロック無,W/O LOCK,BLACK,BLACK,TRIM1# |
71931-10010-B1 |
— | ||
|
72011
|
72011
72011-12040 Adjuster Sub-Assy, Front Seat, Outer RhFRONT SEAT, OUTER RH [05.1983 - 05.1985] AE81,82..FXR,FXT,GT,SR,ZX |
72011-12040 |
US $407.68 |
||
| replacement | |||||
|
72011
|
72011
72011-12080 Adjuster Sub-Assy, Front Seat, Outer RhFRONT SEAT, OUTER RH [05.1983 - 05.1985] AE81,82..FXR,FXT,GT,SR,ZX |
72011-12080 |
US $409.14 |
||
|
72011
|
72011
72011-12080 Adjuster Sub-Assy, Front Seat, Outer RhFRONT SEAT, OUTER RH [05.1985 - 04.1987] AE8#..FXR,FXT,GT,ZX |
72011-12080 |
US $409.14 |
||
|
72011A
|
72011A
90506-14039 Spring, Tension (For Front Seat Adjuster Outer)[05.1983 - 04.1987] AE81,82..FXR,FXT,GT,SR,ZX |
90506-14039 |
US $2.77 |
||
|
72012
|
72012
72012-12020 Adjuster Sub-Assy, Front Seat, Outer LhFRONT SEAT, OUTER LH [05.1983 - 04.1987] AE81,82..(4D,5D2,5D3)..(FXR,GT,SR,ZX) |
72012-12020 |
US $298.48 |
||
|
72021
|
72021
72021-12020 Adjuster Sub-Assy, Front Seat, Inner RhFRONT SEAT, INNER RH [05.1983 - 05.1985] AE81,82..FXR,FXT,GT,SR,ZX |
72021-12020 |
US $256.26 |
||
| replacement | |||||
|
72021
|
72021
72021-12090
Adjuster Sub-Assy, Front Seat, Inner Rh
[05.1983 - 05.1985] AE81,82..FXR,FXT,GT,SR,ZX |
72021-12090 |
— | ||
|
72021
|
72021
72021-12090
Adjuster Sub-Assy, Front Seat, Inner Rh
[05.1985 - 04.1987] AE8#..FXR,FXT,GT,ZX |
72021-12090 |
— | ||
|
72022
|
72022
72022-12020 Adjuster Sub-Assy, Front Seat, Inner LhFRONT SEAT, INNER LH [05.1983 - 04.1987] AE81,82..(4D,5D2,5D3)..(FXR,GT,SR,ZX) |
72022-12020 |
US $281.01 |
||
|
72043
|
72043
72043-12010-03 Lever Sub-Assy, Seat Lifter[05.1983 - 04.1987] AE81,82..FXR,FXT,GT,SR,ZX GRAY,GRAY,TRIM1# |
72043-12010-03 |
US $28.97 |
||
|
72043A
|
72043A
90506-04001 Spring, Tension (For Seat Lifter Lever)[05.1983 - 04.1987] AE81,82..FXR,FXT,GT,SR,ZX; AE81,82..SE SALOON |
90506-04001 |
US $2.18 |
||
|
72137
|
72137
72137-12010-03
Cover, Seat Track, Outer Rh
[05.1983 - 04.1987] AE8#,CE80,EE80 GRAY,GRAY,TRIM1# |
72137-12010-03 |
— | ||
|
72138
|
72138
72138-12010-03
Cover, Seat Track, Outer Lh
[05.1983 - 04.1987] AE8#,CE80,EE80 GRAY,GRAY,TRIM1# |
72138-12010-03 |
— | ||
|
72157
|
72157
72137-12010-03
Cover, Seat Track, Outer Rh
[05.1983 - 04.1987] AE8#,CE80,EE80 LH,GRAY,GRAY,TRIM1# |
72137-12010-03 |
— | ||
|
72157
|
72157
72138-12010-03
Cover, Seat Track, Outer Lh
[05.1983 - 04.1987] AE8#,CE80,EE80 RH,GRAY,GRAY,TRIM1# |
72138-12010-03 |
— | ||
|
72301
|
72301
72301-12060 Wire Sub-Assy, Seat Track EqualizingSEAT TRACK EQUALIZING [05.1983 - 04.1987] AE81,82..FXR,FXT,GT,SR,ZX |
72301-12060 |
US $4.22 |
||
|
72457C
|
72457C
72457-14030-01
Knob, Seat Adjuster
[10.1984 - 04.1987] AE82..FXR,FXT,GT BLACK,BLACK,TRIM1# |
72457-14030-01 |
— | ||
| replacement | |||||
|
72457C
|
72457C
72457-14030-11
Knob, Seat Adjuster
[10.1984 - 04.1987] AE82..FXR,FXT,GT BLACK,BLACK,TRIM1# |
72457-14030-11 |
— | ||
|
72459
|
72459
72459-12010-03 Cap, Vertical Seat Adjuster Knob[05.1983 - 04.1987] AE81,82..FXR,FXT,GT,SR,ZX GRAY,GRAY,TRIM1# |
72459-12010-03 |
US $8.30 |
||
|
72501C
|
72501C
72501-12030 Pipe Sub-Assy, Reclining ConnectingRECLINING CONNECTING [05.1983 - 04.1987] AE81,82..FXR,FXT,GT,SR,ZX |
72501-12030 |
US $32.03 |
||
|
72524
|
72524
72525-12090-03 Handle, Reclining Adjuster Release[05.1983 - 04.1987] AE8#,CE80,EE80 RH,GRAY,GRAY,TRIM1# |
72525-12090-03 |
US $12.67 |
||
|
72524
|
72524
72526-12030-03
Handle, Reclining Adjuster Release
[05.1983 - 04.1987] AE8#,CE80,EE80 LH,GRAY,GRAY,TRIM1# |
72526-12030-03 |
— | ||
|
72760A
|
72760A
72750-16020 Adjuster Assy, Lumbar Support[05.1983 - 04.1987] AE81,82..FXR,FXT,GT,SR,ZX |
72750-16020 |
US $117.94 |
||
|
72791
|
72791
72791-22020-01 Lever, Lumbar Support[10.1984 - 05.1985] AE82..FXR,FXT,GT BLACK,BLACK,TRIM1# |
72791-22020-01 |
US $15.58 |
||
| replacement | |||||
|
72791
|
72791
72791-22020-C0 Lever, Lumbar Support[10.1984 - 05.1985] AE82..FXR,FXT,GT BLACK,BLACK,TRIM1# |
72791-22020-C0 |
US $15.20 |
||
|
74615B
|
74615B
74615-30020-11 Escutcheon, Assist Grip, Rh[10.1984 - 05.1985] AE82..FXT,GT BLACK,BLACK,TRIM1# |
74615-30020-11 |
US $5.53 |
||
| replacement | |||||
|
74615B
|
74615B
74615-30020-C0 Escutcheon, Assist Grip, Rh[10.1984 - 05.1985] AE82..FXT,GT BLACK,BLACK,TRIM1# |
74615-30020-C0 |
US $5.53 |
||
|
74616B
|
74616B
74616-30030-11
Escution, Assist Grip, Lh
[10.1984 - 05.1985] AE82..FXT,GT BLACK,BLACK,TRIM1# |
74616-30030-11 |
— | ||
|
74630A
|
74630A
74630-30020-11 Grip Sub-Assy, Assist, Rh[10.1984 - 05.1985] AE82..FXT,GT BLACK,BLACK,TRIM1# |
74630-30020-11 |
US $17.33 |
||
| replacement | |||||
|
74630A
|
74630A
74630-30020-21 Grip Sub-Assy, Assist, Rh[10.1984 - 05.1985] AE82..FXT,GT BLACK,BLACK,TRIM1# |
74630-30020-21 |
US $17.33 |
||
|
74640A
|
74640A
74640-30010-11 Grip Sub-Assy, Assist, Lh[10.1984 - 05.1985] AE82..FXT,GT BLACK,BLACK,TRIM1# |
74640-30010-11 |
US $17.18 |
||
| replacement | |||||
|
74640A
|
74640A
74640-02010-C0 Grip Sub-Assy, Assist, Lh[10.1984 - 05.1985] AE82..FXT,GT BLACK,BLACK,TRIM1# |
74640-02010-C0 |
US $29.41 |
||
|
9011906230
|
9011906230
90119-06230
New Genuine Part
|
90119-06230 |
— | ||
|
9011908080
|
9011908080
90119-08080 BOLT |
90119-08080 |
from US $1.44 |
||
|
9011908335
|
9011908335
90119-08335 Bolt(For Transmission Input Damper Cover & Flywheel) |
90119-08335 |
US $1.75 |
||
| replacement | |||||
|
9011908335
|
9011908335
90119-08079 Bolt(For Transmission Input Damper Cover & Flywheel) |
90119-08079 |
from US $0.66 |
||
|
9011908336
|
9011908336
90119-08336 BOLT |
90119-08336 |
US $2.56 |
||
|
9011910104
|
9011910104
90119-10104 New Genuine Part |
90119-10104 |
US $4.08 |
||
|
9011910404
|
9011910404
90119-10404 New Genuine Part |
90119-10404 |
US $3.20 |
||
|
9014940012
|
9014940012
90149-40012 SCREW |
90149-40012 |
from US $0.76 |
||
|
9016840011
|
9016840011
90168-40011 SCREW |
90168-40011 |
US $1.22 |
||
|
9016840036
|
9016840036
90168-40036
SCREW
|
90168-40036 |
— | ||
|
9016840049
|
9016840049
90168-40049 SCREW |
90168-40049 |
from US $1.40 |
||
|
9052001002
|
9052001002
90520-01002
Ring, Shaft Snap(For Vent Window Control)
|
90520-01002 |
— | ||
| replacement | |||||
|
9052001002
|
9052001002
90520-01274 Ring, Shaft Snap(For Front Door Window Regulator Handle) |
90520-01274 |
from US $0.99 |
||
|
9165140614
|
9165140614
91651-40614 Bolt |
91651-40614 |
from US $0.78 |
||
|
9321016012
|
9321016012
93210-16012 New Genuine Part |
93210-16012 |
US $1.22 |
||
|
9324954006
|
9324954006
93249-54006 Screw |
93249-54006 |
US $1.76 |
||
|
9354054012
|
9354054012
93540-54012 Screw, Headlamp |
93540-54012 |
US $1.44 |
||
|
9616000600
|
9616000600
96160-00600 Ring, E(For Clutch Pedal Pawl) |
96160-00600 |
from US $0.86 |
||
|
9616001200
|
9616001200
96160-01200 Ring, E(For Clutch Release Cable) |
96160-01200 |
from US $1.60 |
||
