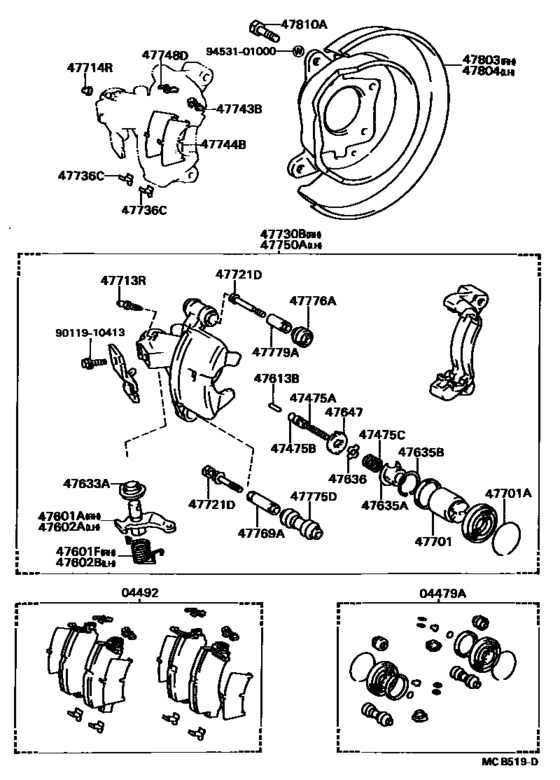

Rear Disc Brake Caliper & Dust Cover ([10.1984 - ] (8410- )FXT,GT) Diagram Toyota COROLLA
- Year
- 1984 - 1987
- Sales region
- Japan
- Frame
- AE82
- grade
- GT
- ENGINE
- 4AGELU
- TRANSMISSION
- ATM
- Model
- COROLLA
- From
- 10.1984
- To
- 04.1987
- Gear Shift Type
- 4FC
- No.of Doors
- 4D
- Vehicle Model
- Corolla
Difficulties in parts search?
Difficulties in parts search?
| Description | OEM Part # | Price | |||
|---|---|---|---|---|---|
|
04479A
|
04479A
04479-12120 Cylinder Kit, Disc Brake, RearDISC BRAKE, REAR [10.1984 - 01.1985] AE82..FXT,GT |
04479-12120 |
US $48.19 |
||
| replacement | |||||
|
04479A
|
04479A
04479-12121
Cylinder Kit, Disc Brake, Rear
[10.1984 - 01.1985] AE82..FXT,GT |
04479-12121 |
— | ||
|
04479A
|
04479A
04479-12121
Cylinder Kit, Disc Brake, Rear
[01.1985 - 04.1987] AE82..FXT,GT |
04479-12121 |
— | ||
|
04492
|
04492
04492-12040 Pad Kit, Disc Brake, Rear[10.1984 - 04.1987] AE82..FXT,GT |
04492-12040 |
US $135.41 |
||
| replacement | |||||
|
04492
|
04492
04466-12031
Pad Kit, Disc Brake, Rear
[10.1984 - 04.1987] AE82..FXT,GT |
04466-12031 |
— | ||
|
47475A
|
47475A
47475-12030 Bolt, Pad Adjusting(For Rear Disc Brake)[10.1984 - 04.1987] AE82..FXT,GT |
47475-12030 |
US $19.76 |
||
|
47475B
|
47475B
90301-09007 Ring, O(For Rear Disc Brake Pad Adjusting Bolt)[10.1984 - 04.1987] AE82..FXT,GT |
90301-09007 |
US $4.16 |
||
|
47475C
|
47475C
90501-23051 Spring, Compression(For Pad Adjusting Bolt)[10.1984 - 04.1987] AE82..FXT,GT |
90501-23051 |
US $3.84 |
||
|
47601A
|
47601A
47601-12020
Crank Sub-Assy, Parking Brake, Rh
[10.1984 - 04.1987] AE82..FXT,GT |
47601-12020 |
— | ||
| replacement | |||||
|
47601A
|
47601A
47601-12030 Crank Sub-Assy, Parking Brake, Rh[10.1984 - 04.1987] AE82..FXT,GT |
47601-12030 |
US $8.74 |
||
|
47601F
|
47601F
90508-32020
Spring, Torsion(For Parking Brake Crank Rh)
[10.1984 - 04.1987] AE82..FXT,GT |
90508-32020 |
— | ||
|
47602A
|
47602A
47602-12020
Crank Sub-Assy, Parking Brake, Lh
[10.1984 - 04.1987] AE82..FXT,GT |
47602-12020 |
— | ||
| replacement | |||||
|
47602A
|
47602A
47602-12030
Crank Sub-Assy, Parking Brake, Lh
[10.1984 - 04.1987] AE82..FXT,GT |
47602-12030 |
— | ||
|
47602B
|
47602B
90508-32021 Spring, Torsion(For Parking Brake Crank Rh)[10.1984 - 04.1987] AE82..FXT,GT |
90508-32021 |
US $3.14 |
||
|
47613B
|
47613B
47613-12020 Strut, Parking Brake(For Rear Brake)[10.1984 - 04.1987] AE82..FXT,GT |
47613-12020 |
US $9.76 |
||
|
47633A
|
47633A
47633-12010 Boot, Parking Brake Crank[10.1984 - 04.1987] AE82..FXT,GT |
47633-12010 |
US $11.53 |
||
|
47635A
|
47635A
47635-12020 Retainer, Adjusting Bolt Spring(For Rear Disc Brake)[10.1984 - 04.1987] AE82..FXT,GT |
47635-12020 |
US $7.43 |
||
|
47635B
|
47635B
90521-32002 Ring(For Rear Brake Adjusting Bolt Spring Retainer)[10.1984 - 04.1987] AE82..FXT,GT |
90521-32002 |
US $1.31 |
||
|
47636
|
47636
47636-12010 Plate, Adjusting Bolt Spring(For Rear Disc Brake)[10.1984 - 04.1987] AE82..FXT,GT |
47636-12010 |
US $6.24 |
||
|
47647
|
47647
47647-12010 Stopper, Automatic Adjust Bolt(For Rear Disc Brake)[10.1984 - 04.1987] AE82..FXT,GT |
47647-12010 |
US $9.12 |
||
|
47701
|
47701
47701-12020 Piston Sub-Assy, Rear Disc BrakeREAR DISC BRAKE [10.1984 - 04.1987] AE82..FXT,GT |
47701-12020 |
US $78.62 |
||
|
47701A
|
47701A
90522-45001 Ring, Set(For Disc Brake Piston, Rear)[10.1984 - 04.1987] AE82..FXT,GT |
90522-45001 |
US $1.31 |
||
|
47713R
|
47713R
47547-20010 Plug, Bleeder(For Release Cylinder)[10.1984 - 04.1987] AE82..FXT,GT |
47547-20010 |
from US $3.20 |
||
|
47714R
|
47714R
31478-30010 Bleeder Plug Cap[10.1984 - 04.1987] AE82..FXT,GT |
31478-30010 |
from US $1.66 |
||
|
47721D
|
47721D
90109-08098 Bolt(For Rear Disc Brake Cylinder Mouting)[10.1984 - 04.1987] AE82..FXT,GT ＊８−１．２５ＰＸ５６−１５,*8-1.25PX56-15 |
90109-08098 |
from US $7.67 |
||
|
47721D
|
47721D
90119-08431 Bolt, Hexagon(For Front Disc Brake Torque Plate)[10.1984 - 04.1987] AE82..FXT,GT ＊８−１．２５ＰＸ６２−２０,*8-1.25PX62-20 |
90119-08431 |
US $3.52 |
||
|
47730B
|
47730B
47730-12280 Cylinder Assy, Rear Disc Brake, RhREAR DISC BRAKE, RH [10.1984 - 04.1987] AE82..FXT,GT |
47730-12280 |
US $601.33 |
||
|
47736C
|
47736C
47736-12030 Plate, Rear Disc Brake Pad Guide[10.1984 - 04.1987] AE82..FXT,GT |
47736-12030 |
US $2.48 |
||
|
47743B
|
47743B
47743-12030 Spring, Anti-Rattle, No.2(For Rear Disc Brake)[10.1984 - 04.1987] AE82..FXT,GT |
47743-12030 |
US $4.95 |
||
| replacement | |||||
|
47743B
|
47743B
47743-12060
Spring, Anti-Rattle, No.2(For Rear Disc Brake)
[10.1984 - 04.1987] AE82..FXT,GT |
47743-12060 |
— | ||
|
47744B
|
47744B
47744-12070 Shim, Anti-Squeal(For Rear Disc Brake)[10.1984 - 04.1987] AE82..FXT,GT |
47744-12070 |
US $13.10 |
||
| replacement | |||||
|
47744B
|
47744B
47744-12080
Shim, Anti-Squeal(For Rear Disc Brake)
[10.1984 - 04.1987] AE82..FXT,GT |
47744-12080 |
— | ||
|
47748D
|
47748D
47748-12090 Spring, Anti-Rattle, No.1(For Rear Disc Brake)[10.1984 - 04.1987] AE82..FXT,GT |
47748-12090 |
US $4.95 |
||
| replacement | |||||
|
47748D
|
47748D
47748-12110 Spring, Anti-Rattle, No.1(For Rear Disc Brake)[10.1984 - 04.1987] AE82..FXT,GT |
47748-12110 |
US $8 |
||
|
47750A
|
47750A
47750-12280 Cylinder Assy, Disc Brake, Rear LhDISC BRAKE, REAR LH [10.1984 - 04.1987] AE82..FXT,GT |
47750-12280 |
US $601.33 |
||
|
47769A
|
47769A
47769-28010 Bush, Cylinder Slide, No.1(For Front Disc Brake)[10.1984 - 04.1987] AE82..FXT,GT |
47769-28010 |
from US $7.14 |
||
|
47775D
|
47775D
47775-14010 Boot, Bush Dust(For Front Disc Brake)[10.1984 - 04.1987] AE82..FXT,GT |
47775-14010 |
US $12.48 |
||
|
47776A
|
47776A
47776-12010
Boot, Main Pin(For Rear Disc Brake)
[10.1984 - 04.1987] AE82..FXT,GT |
47776-12010 |
— | ||
| replacement | |||||
|
47776A
|
47776A
47776-12020 Boot, Main Pin(For Rear Disc Brake)[10.1984 - 04.1987] AE82..FXT,GT |
47776-12020 |
from US $0.92 |
||
|
47779A
|
47779A
47779-12010 Bush, Cylinder Slide, No.2(For Rear Disc Brake)[10.1984 - 04.1987] AE82..FXT,GT |
47779-12010 |
from US $7.98 |
||
|
47803
|
47803
47803-12020
Cover Sub-Assy, Disc Brake Dust, Rear Rh
[10.1984 - 04.1987] AE82..FXT,GT |
47803-12020 |
— | ||
|
47804
|
47804
47804-12020
Cover Sub-Assy, Disc Brake Dust, Rear Lh
[10.1984 - 04.1987] AE82..FXT,GT |
47804-12020 |
— | ||
|
47810A
|
47810A
90101-10089
Bolt(For Steering Center Arm)
[10.1984 - 04.1987] AE82..FXT,GT |
90101-10089 |
— | ||
|
9011910413
|
9011910413
90119-10413 New Genuine Part |
90119-10413 |
US $2.91 |
||
|
9453101000
|
9453101000
94531-01000 WASHER |
94531-01000 |
from US $1.44 |
||
