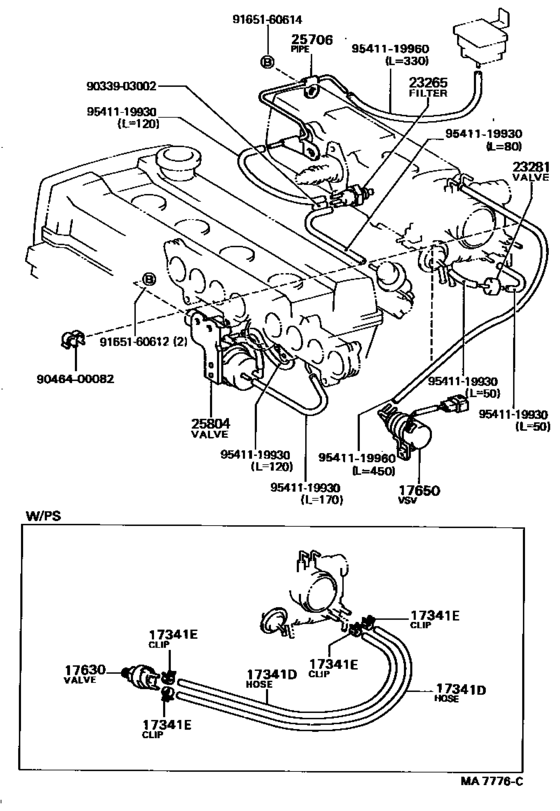

Vacuum Piping ([10.1984 - ] (8410- )4AGELU) Diagram Toyota COROLLA
- Year
- 1984 - 1987
- Sales region
- Japan
- Frame
- AE82
- grade
- GT
- ENGINE
- 4AGELU
- TRANSMISSION
- ATM
- Model
- COROLLA
- From
- 10.1984
- To
- 04.1987
- Gear Shift Type
- 4FC
- No.of Doors
- 4D
- Vehicle Model
- Corolla
Difficulties in parts search?
Difficulties in parts search?
| Description | OEM Part # | Price | |||
|---|---|---|---|---|---|
|
17341D
|
17341D
17341-16070 Hose, No.1(For Idle-Up)[10.1984 - 04.1987] 4AGELU..AE82 W/PS |
17341-16070 |
US $14.12 |
||
|
17341E
|
17341E
96132-30400
Clip Or Clamp(For Ventilation Hose)
[10.1984 - 04.1987] 4AGELU..AE82 W/PS |
96132-30400 |
— | ||
| replacement | |||||
|
17341E
|
17341E
96132-51000 Clip Or Clamp(For Ventilation Hose)[10.1984 - 04.1987] 4AGELU..AE82 W/PS |
96132-51000 |
from US $1.48 |
||
|
17630
|
17630
17630-16040 Valve Assy, Air Control[05.1986 - 04.1987] 4AGELU..AE82 W/PS |
17630-16040 |
from US $85.80 |
||
|
17630
|
17630
17630-70010 Valve Assy, Air Control[10.1984 - 05.1986] 4AGELU..AE82 W/PS |
17630-70010 |
US $202.38 |
||
|
17650
|
17650
89570-16060 Valve Assy, Vacuum Switching[10.1984 - 04.1987] 4AGELU..AE82 |
89570-16060 |
US $132.50 |
||
|
23265
|
23265
90917-11027 Filter, Gas, No.1[10.1984 - 04.1987] 4AGELU..AE82 |
90917-11027 |
from US $23.71 |
||
|
23281
|
23281
90925-01071
Valve, Vacuum Transmitting, No.1
[10.1984 - 04.1987] 4AGELU..AE82 |
90925-01071 |
— | ||
| replacement | |||||
|
23281
|
23281
90925-01098
Valve, Vacuum Transmitting, No.1
[10.1984 - 04.1987] 4AGELU..AE82 |
90925-01098 |
— | ||
|
25706
|
25706
25706-16090 Pipe Sub-Assy, Vacuum Transmitting, No.1[10.1984 - 04.1987] 4AGELU..AE82 |
25706-16090 |
US $15.87 |
||
|
25804
|
25804
25804-16010
Valve Set, Vacuum Control
[10.1984 - 04.1987] 4AGELU..AE82 |
25804-16010 |
— | ||
|
9033903002
|
9033903002
90339-03002 PLUG |
90339-03002 |
from US $2.88 |
||
|
9046400082
|
9046400082
90464-00082 Clamp(For Resistive Cord) |
90464-00082 |
US $1.60 |
||
|
9165160612
|
9165160612
91651-60612 BOLT |
91651-60612 |
US $1.44 |
||
|
9165160614
|
9165160614
91651-60614 Bolt |
91651-60614 |
US $1.12 |
||
|
9541119930
|
9541119930
95411-19930
Hose(For Carburetor To Manifold)
|
95411-19930 |
— | ||
| replacement | |||||
|
9541119930
|
9541119930
90999-92002
Air Hose (300 mm)
|
90999-92002 |
— | ||
|
9541119960
|
9541119960
95411-19960
Hose, Vacuum, No.2 (For Front Drive Shift)
|
95411-19960 |
— | ||
| replacement | |||||
|
9541119960
|
9541119960
90999-92003
Hose, Breather (For Transfer Case)
|
90999-92003 |
— | ||
