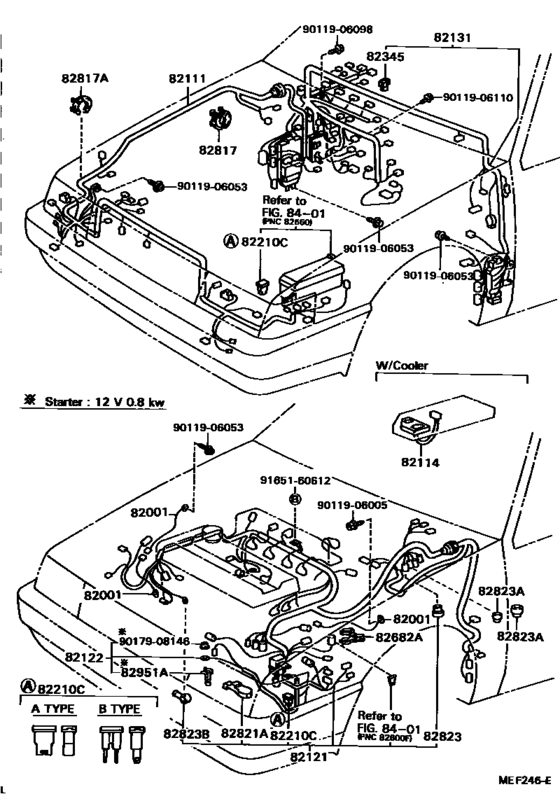

Wiring & Clamp ([10.1984 - ] (8410- )FXT,GT) Diagram Toyota COROLLA
- Year
- 1984 - 1987
- Sales region
- Japan
- Frame
- AE82
- grade
- GT
- ENGINE
- 4AGELU
- TRANSMISSION
- ATM
- Model
- COROLLA
- From
- 10.1984
- To
- 04.1987
- Gear Shift Type
- 4FC
- No.of Doors
- 4D
- Vehicle Model
- Corolla
Difficulties in parts search?
Difficulties in parts search?
| Description | OEM Part # | Price | |||
|---|---|---|---|---|---|
|
82001
|
82001
90980-07206 Cable, Bond, No.1[05.1983 - 04.1987] AE8# L=150,FENDER,RH & LH |
90980-07206 |
US $8.56 |
||
|
82001
|
82001
90980-07235
Cable, Bond, No.1
[10.1984 - 04.1987] AE82..FXT,GT L=100,ENGINE-FENDER,RH |
90980-07235 |
— | ||
|
82111
|
82111
82111-12550
Wire, Engine Room Main
[10.1984 - 05.1985] AE82..FXT,GT |
82111-12550 |
— | ||
|
82111
|
82111
82111-12750
Wire, Engine Room Main
[05.1985 - 04.1987] AE82..FXT,GT |
82111-12750 |
— | ||
|
82114
|
82114
82114-32010
Wire, Engine Room, No.4
[05.1983 - 04.1987] AE8#,CE80,EE80 W/COOLER |
82114-32010 |
— | ||
|
82121
|
82121
82121-12410
Wire, Engine
[10.1984 - 05.1985] AE82..4FC..(FXT,GT) |
82121-12410 |
— | ||
|
82121
|
82121
82121-12710 Wire, Engine[05.1985 - 08.1986] AE82..4FC..(FXT,GT) |
82121-12710 |
US $1,086.18 |
||
| replacement | |||||
|
82121
|
82121
82121-12711
Wire, Engine
[05.1985 - 08.1986] AE82..4FC..(FXT,GT) |
82121-12711 |
— | ||
|
82121
|
82121
82121-12711
Wire, Engine
[08.1986 - 09.1986] AE82..4FC..(FXT,GT) |
82121-12711 |
— | ||
|
82121
|
82121
82121-12712
Wire, Engine
[09.1986 - 04.1987] AE82..4FC..(FXT,GT) |
82121-12712 |
— | ||
|
82122
|
82122
82122-12240 Wire, Engine, No.2ENGINE, NO.2 [10.1984 - 04.1987] AE82..FXT,GT STARTER:12V 0.8KW |
82122-12240 |
US $43.24 |
||
|
82122
|
82122
82122-12250 Wire, Engine, No.2ENGINE, NO.2 [10.1984 - 04.1987] AE82..FXT,GT STARTER:12V 1.0KW |
82122-12250 |
US $43.24 |
||
|
82131
|
82131
82131-12411
Wire, Cowl
[01.1984 - 10.1984] AE82 |
82131-12411 |
— | ||
|
82131
|
82131
82131-12750
Wire, Cowl
[10.1984 - 05.1985] AE82..FXT,GT |
82131-12750 |
— | ||
|
82131
|
82131
82131-12760
Wire, Cowl
[10.1984 - 05.1985] AE82..FXT,GT W/DIGITAL SPEEDOMETER |
82131-12760 |
— | ||
|
82131
|
82131
82131-1A130 Wire, CowlCOWL [05.1985 - 04.1987] AE82..FXT,GT |
82131-1A130 |
US $1,231.78 |
||
|
82131
|
82131
82131-1A140
Wire, Cowl
[05.1985 - 04.1987] AE82..FXT,GT W/DIGITAL SPEEDOMETER |
82131-1A140 |
— | ||
|
82210C
|
82210C
90982-08188 Fusible Link[05.1983 - 04.1987] AE8#,CE80,EE80 ３０Ａ，メス端子,30A,A TYPE |
90982-08188 |
from US $4.70 |
||
|
82210C
|
82210C
90982-08203 Fusible Link[05.1983 - 04.1987] AE82,CE80 ８０Ａ，オス端子,80A,B TYPE |
90982-08203 |
from US $7.36 |
||
|
82210C
|
82210C
90982-08223 Fusible Link[05.1983 - 04.1987] AE82 ３０Ａ，オス端子,30A,B TYPE |
90982-08223 |
US $11.36 |
||
|
82345
|
82345
82345-12010
Diode
[05.1985 - 04.1987] AE81;AE82..FXT,GT 2-POLE CONNECTOR,BLACK |
82345-12010 |
— | ||
| replacement | |||||
|
82345
|
82345
82345-12020 Diode[05.1985 - 04.1987] AE81;AE82..FXT,GT 2-POLE CONNECTOR,BLACK |
82345-12020 |
US $15.55 |
||
|
82345
|
82345
82345-12020 Diode[05.1985 - 04.1987] CE80;AE8#..FXG,FXR,FXT,GL,GT,SE,ZX 2-POLE CONNECTOR,BROWN |
82345-12020 |
US $15.55 |
||
|
82345
|
82345
82345-22010 Diode[10.1984 - 05.1985] AE82..FXT,GT 4-POLE CONNECTOR |
82345-22010 |
US $19.22 |
||
|
82682A
|
82682A
82682-12020 Retainer, Fuse HolderFUSE HOLDER [10.1984 - 04.1987] AE82..FXT,GT |
82682-12020 |
US $6.26 |
||
|
82817
|
82817
82817-14360 Protector, Wiring Harness, No.1[05.1983 - 04.1987] AE8#,CE80,EE80 |
82817-14360 |
US $14.41 |
||
|
82817A
|
82817A
82817-32010
Protector, Wiring Harness, No.1
[05.1983 - 04.1987] AE8#,CE80,EE80 |
82817-32010 |
— | ||
|
82821A
|
82821A
82821-12190 Cover, Connector(For Battery Terminal)[10.1984 - 04.1987] AE82..FXT,GT |
82821-12190 |
US $9.92 |
||
|
82823
|
82823
82823-12050 Cap, Terminal, No.1TERMINAL, NO.1 [04.1985 - 04.1987] AE82..FXT,GT 1-POLE CONNECTOR(PLASTIC) |
82823-12050 |
US $4.80 |
||
|
82823
|
82823
82823-20010 Cap, Terminal, No.1[10.1984 - 04.1985] AE82..FXT,GT 1-POLE CONNECTOR(RUBBER) |
82823-20010 |
US $4.08 |
||
|
82823A
|
82823A
82823-14040 Cap, Terminal, No.1[05.1983 - 04.1987] AE82 2-POLE CONNECTOR |
82823-14040 |
US $5.82 |
||
|
82823A
|
82823A
82823-30010 Cap, Terminal, No.1[05.1983 - 04.1987] AE8#,EE80 4-POLE CONNECTOR |
82823-30010 |
US $5.39 |
||
|
82951A
|
82951A
82951-17010 Terminal, Starter[12.1985 - 04.1987] AE82..FXT,GT STARTER:12V 0.8KW |
82951-17010 |
US $11.07 |
||
|
9011906005
|
9011906005
90119-06005 New Genuine Part |
90119-06005 |
US $1.28 |
||
|
9011906053
|
9011906053
90119-06053 New Genuine Part |
90119-06053 |
US $0.96 |
||
|
9011906098
|
9011906098
90119-06098 BOLT |
90119-06098 |
US $1.28 |
||
|
9011906110
|
9011906110
90119-06110
New Genuine Part
|
90119-06110 |
— | ||
| replacement | |||||
|
9011906110
|
9011906110
90119-06442 BOLT WWASHER |
90119-06442 |
from US $0.88 |
||
|
9017908146
|
9017908146
90179-08146
Nut
|
90179-08146 |
— | ||
| replacement | |||||
|
9017908146
|
9017908146
90179-08204 Nut |
90179-08204 |
from US $1.11 |
||
|
9165160612
|
9165160612
91651-60612 BOLT |
91651-60612 |
US $1.44 |
||
