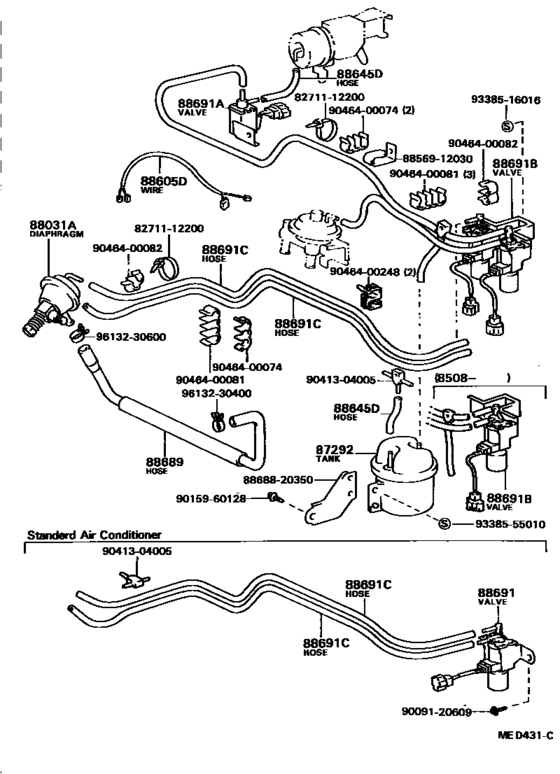

Heating & Air Conditioning - Vacuum Piping ([05.1983 - ] (8305- )AE82..FXR,SE,SR,SX,ZX) Diagram Toyota COROLLA
- Year
- 1983 - 1985
- Sales region
- Japan
- Frame
- AE82
- grade
- SX
- ENGINE
- 4AELU
- TRANSMISSION
- ATM
- Model
- COROLLA
- From
- 05.1983
- To
- 05.1985
- Gear Shift Type
- 4FC
- No.of Doors
- 5D3
- Vehicle Model
- Corolla
Difficulties in parts search?
Difficulties in parts search?
| Description | OEM Part # | Price | |||
|---|---|---|---|---|---|
|
87292
|
87292
88683-16010
Tank, Vacuum
[05.1983 - 04.1987] AE82;AE81,CE80..FXG,SE,ZX |
88683-16010 |
— | ||
|
88031A
|
88031A
88606-14020
Diaphragm Sub-Assy, Idle-Up Actuator
[05.1983 - 04.1987] AE82..FXR,SE,SR,SX,ZX |
88606-14020 |
— | ||
|
88605D
|
88605D
88605-12520
Wire, Air Conditioner
[05.1983 - 04.1987] AE82..FXR,SE,SR,SX,ZX W/*AAC; AE81,CE80..FXG,SE,ZX W/*AAC |
88605-12520 |
— | ||
|
88645D
|
88645D
95411-10130
Pipe Or Hose
[05.1983 - 04.1987] AE82..FXR,SE,SR,SX,ZX ＊Ｈ，Ｌ＝４０，マーク＝＃１,W/*AAC |
95411-10130 |
— | ||
| replacement | |||||
|
88645D
|
88645D
90999-92002
Air Hose (300 mm)
[05.1983 - 04.1987] AE82..FXR,SE,SR,SX,ZX ＊Ｈ，Ｌ＝４０，マーク＝＃１,W/*AAC |
90999-92002 |
— | ||
|
88645D
|
88645D
95411-10430 Hose (For Idle Up Device)[05.1983 - 04.1987] AE82;AE81,CE80..FXG,SE,ZX ＊Ｈ，Ｌ＝１２０，マーク＝＃４,W/*AAC |
95411-10430 |
US $6.84 |
||
| replacement | |||||
|
88645D
|
88645D
90999-92002
Air Hose (300 mm)
[05.1983 - 04.1987] AE82;AE81,CE80..FXG,SE,ZX ＊Ｈ，Ｌ＝１２０，マーク＝＃４,W/*AAC |
90999-92002 |
— | ||
|
88689
|
88689
88689-12020
Hose, Damper Control Diaphragm Vacuum
[05.1983 - 04.1987] AE82..FXR,SE,SR,SX,ZX |
88689-12020 |
— | ||
|
88691
|
88691
88691-30430
Valve, Magnet (For Idle Up Device)
[05.1983 - 05.1985] AE82..FXR,SR,SX,ZX |
88691-30430 |
— | ||
| replacement | |||||
|
88691
|
88691
89570-28050
Valve Assy, Vacuum Switching
[05.1983 - 05.1985] AE82..FXR,SR,SX,ZX |
89570-28050 |
— | ||
|
88691A
|
88691A
88690-12330
Valve, Magnet (For Blower Changing-Over Device)
[05.1983 - 04.1987] AE82;AE81,CE80..FXG,SE,ZX |
88690-12330 |
— | ||
|
88691B
|
88691B
88690-12270
Valve, Magnet (For Water Valve)
[05.1983 - 05.1985] AE82..FXR,SR,SX,ZX |
88690-12270 |
— | ||
|
88691C
|
88691C
90445-08168 Hose, Vacuum (For Idle Up Device), No.1ED MONITOR GAGE [05.1983 - 05.1985] AE82..FXR,SR,SX,ZX MARK=#0,L=1100 |
90445-08168 |
US $22.42 |
||
| replacement | |||||
|
88691C
|
88691C
90999-92006 Hose, Vacuum, No.1 (For Front Drive Shift)[05.1983 - 05.1985] AE82..FXR,SR,SX,ZX MARK=#0,L=1100 |
90999-92006 |
from US $21.94 |
||
|
88691C
|
88691C
90445-08205 Hose, Fuel, No.1(For Charcoal Canister)[05.1983 - 05.1985] AE82..FXR,SR,SX,ZX 長さ＝１１５０ |
90445-08205 |
US $29.41 |
||
| replacement | |||||
|
88691C
|
88691C
90999-92006 Hose, Vacuum, No.1 (For Front Drive Shift)[05.1983 - 05.1985] AE82..FXR,SR,SX,ZX 長さ＝１１５０ |
90999-92006 |
from US $21.94 |
||
|
8271112200
|
8271112200
82711-12200 Clamp (For Fuel Lid Lock Control Cable) |
82711-12200 |
from US $1.66 |
||
|
8856912030
|
8856912030
88569-12030
Clamp (For Cooler Wiring Harness), No.1
|
88569-12030 |
— | ||
|
8868820350
|
8868820350
88688-20350
Bracket, Cooler Diaphragm
|
88688-20350 |
— | ||
|
9009120609
|
9009120609
90091-20609 BOLT |
90091-20609 |
US $0.44 |
||
|
9015960128
|
9015960128
90159-60128 New Genuine Part |
90159-60128 |
US $1.92 |
||
|
9041304005
|
9041304005
90413-04005 Way, 3, No.1 (For Front Drive Shift) |
90413-04005 |
from US $3.04 |
||
|
9046400074
|
9046400074
90464-00074 Joint, No.1 (For Idle Up Divice) |
90464-00074 |
US $1.92 |
||
|
9046400081
|
9046400081
90464-00081
Clamp (For Idle Up Divice), No.1
|
90464-00081 |
— | ||
|
9046400082
|
9046400082
90464-00082 Clamp(For Resistive Cord) |
90464-00082 |
from US $1.60 |
||
|
9046400248
|
9046400248
90464-00248 New Genuine Part |
90464-00248 |
US $1.89 |
||
|
9338516016
|
9338516016
93385-16016 New Genuine Part |
93385-16016 |
US $1.28 |
||
|
9338555010
|
9338555010
93385-55010 New Genuine Part |
93385-55010 |
US $1.75 |
||
|
9613230400
|
9613230400
96132-30400
Clip Or Clamp(For Ventilation Hose)
|
96132-30400 |
— | ||
| replacement | |||||
|
9613230400
|
9613230400
96132-51000 Clip Or Clamp(For Ventilation Hose) |
96132-51000 |
from US $1.62 |
||
|
9613230600
|
9613230600
96132-30600
Clip(For Actuator Hose)
|
96132-30600 |
— | ||
| replacement | |||||
|
9613230600
|
9613230600
96132-51100 Clip (For Hose) |
96132-51100 |
from US $1.74 |
||
