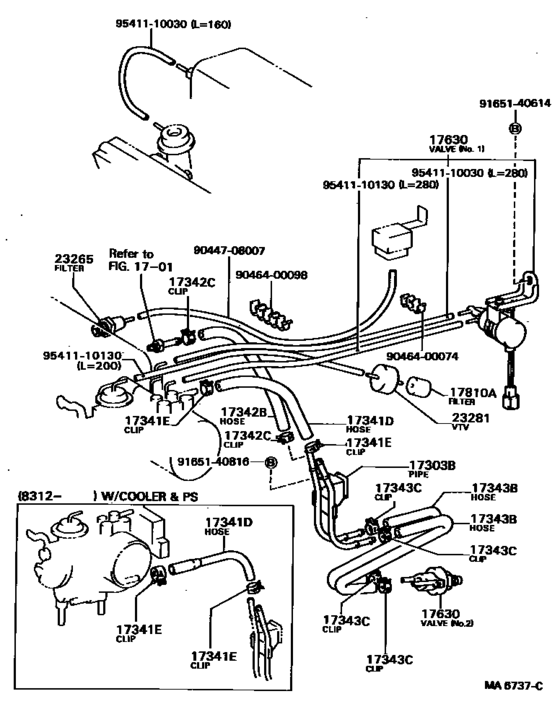

Vacuum Piping ([05.1983 - ] (8305- )4AELU) Diagram Toyota COROLLA
- Year
- 1983 - 1985
- Sales region
- Japan
- Frame
- AE82
- grade
- SX
- ENGINE
- 4AELU
- TRANSMISSION
- ATM
- Model
- COROLLA
- From
- 05.1983
- To
- 05.1985
- Gear Shift Type
- 4FC
- No.of Doors
- 5D3
- Vehicle Model
- Corolla
Difficulties in parts search?
Difficulties in parts search?
| Description | OEM Part # | Price | |||
|---|---|---|---|---|---|
|
17303B
|
17303B
17303-16010 Pipe Sub-Assy, Air, No.1[05.1983 - 04.1987] 4AELU..AE82 W/PS |
17303-16010 |
US $34.65 |
||
|
17341D
|
17341D
17341-16020 Hose, No.1(For Idle-Up)[05.1983 - 04.1987] 4AELU..AE82 W/PS |
17341-16020 |
US $19.66 |
||
|
17341D
|
17341D
17341-16060 Hose, No.1(For Idle-Up)NO.1(FOR IDLE-UP) [12.1983 - 04.1987] 4AELU..AE82 W/PS & COOLER |
17341-16060 |
US $14.27 |
||
|
17341E
|
17341E
96132-30400
Clip Or Clamp(For Ventilation Hose)
[12.1983 - 04.1987] 4AELU..AE82 W/PS & COOLER,AIR PIPE SIDE |
96132-30400 |
— | ||
| replacement | |||||
|
17341E
|
17341E
96132-51000 Clip Or Clamp(For Ventilation Hose)[12.1983 - 04.1987] 4AELU..AE82 W/PS & COOLER,AIR PIPE SIDE |
96132-51000 |
from US $1.58 |
||
|
17341E
|
17341E
96132-30600
Clip(For Actuator Hose)
[12.1983 - 04.1987] 4AELU..AE82 W/PS & COOLER,AIR VALVE SIDE |
96132-30600 |
— | ||
| replacement | |||||
|
17341E
|
17341E
96132-51100 Clip (For Hose)[12.1983 - 04.1987] 4AELU..AE82 W/PS & COOLER,AIR VALVE SIDE |
96132-51100 |
from US $1.68 |
||
|
17342B
|
17342B
17342-16010 Hose, No.2(For Idle-Up)[05.1983 - 04.1987] 4AELU..AE82 W/PS |
17342-16010 |
US $14.56 |
||
|
17342C
|
17342C
96132-30400
Clip Or Clamp(For Ventilation Hose)
[05.1983 - 04.1987] 4AELU..AE82 W/PS |
96132-30400 |
— | ||
| replacement | |||||
|
17342C
|
17342C
96132-51000 Clip Or Clamp(For Ventilation Hose)[05.1983 - 04.1987] 4AELU..AE82 W/PS |
96132-51000 |
from US $1.58 |
||
|
17343B
|
17343B
17343-16020 Hose, No.3(For Idle-Up)[05.1983 - 04.1987] 4AELU..AE82 W/PS |
17343-16020 |
US $19.66 |
||
|
17343C
|
17343C
96132-30400
Clip Or Clamp(For Ventilation Hose)
[05.1983 - 04.1987] 4AELU..AE82 W/PS |
96132-30400 |
— | ||
| replacement | |||||
|
17343C
|
17343C
96132-51000 Clip Or Clamp(For Ventilation Hose)[05.1983 - 04.1987] 4AELU..AE82 W/PS |
96132-51000 |
from US $1.58 |
||
|
17630
|
17630
17630-16010 Valve Assy, Air ControlAIR CONTROL [05.1983 - 04.1987] 4AELU..AE82 NO.1 |
17630-16010 |
US $104.83 |
||
|
17630
|
17630
17630-16040 Valve Assy, Air Control[08.1984 - 04.1987] 4AELU..AE82 NO.2 |
17630-16040 |
from US $85.80 |
||
|
17630
|
17630
17630-70010 Valve Assy, Air Control[05.1983 - 04.1984] 4AELU..AE82 NO.2 |
17630-70010 |
US $202.38 |
||
|
17630
|
17630
17630-70020
Valve Assy, Air Control
[04.1984 - 08.1984] 4AELU..AE82 NO.2 |
17630-70020 |
— | ||
| replacement | |||||
|
17630
|
17630
17630-16040 Valve Assy, Air Control[04.1984 - 08.1984] 4AELU..AE82 NO.2 |
17630-16040 |
from US $85.80 |
||
|
17810A
|
17810A
90925-06007 Filter Assy, Air[05.1983 - 04.1987] 4AELU..AE82 |
90925-06007 |
US $7.86 |
||
|
23265
|
23265
90917-11022 Filter, Gas, No.1[05.1983 - 04.1987] 4AELU..AE82 |
90917-11022 |
US $15.50 |
||
|
23281
|
23281
90925-01079
Valve, Vacuum Transmitting, No.1
[05.1983 - 04.1987] 4AELU..AE82..4FC |
90925-01079 |
— | ||
|
9044708007
|
9044708007
90447-08007 New Genuine Part |
90447-08007 |
US $3.64 |
||
|
9046400074
|
9046400074
90464-00074 Joint, No.1 (For Idle Up Divice) |
90464-00074 |
US $1.92 |
||
|
9046400098
|
9046400098
90464-00098 New Genuine Part |
90464-00098 |
US $4.37 |
||
|
9165140614
|
9165140614
91651-40614 Bolt |
91651-40614 |
from US $0.78 |
||
|
9165140816
|
9165140816
91651-40816 BOLT |
91651-40816 |
from US $0.99 |
||
|
9541110030
|
9541110030
95411-10030
Hose (For Idle Up Device)
|
95411-10030 |
— | ||
| replacement | |||||
|
9541110030
|
9541110030
90999-92002
Air Hose (300 mm)
|
90999-92002 |
— | ||
|
9541110130
|
9541110130
95411-10130
Pipe Or Hose
|
95411-10130 |
— | ||
| replacement | |||||
|
9541110130
|
9541110130
90999-92002
Air Hose (300 mm)
|
90999-92002 |
— | ||
