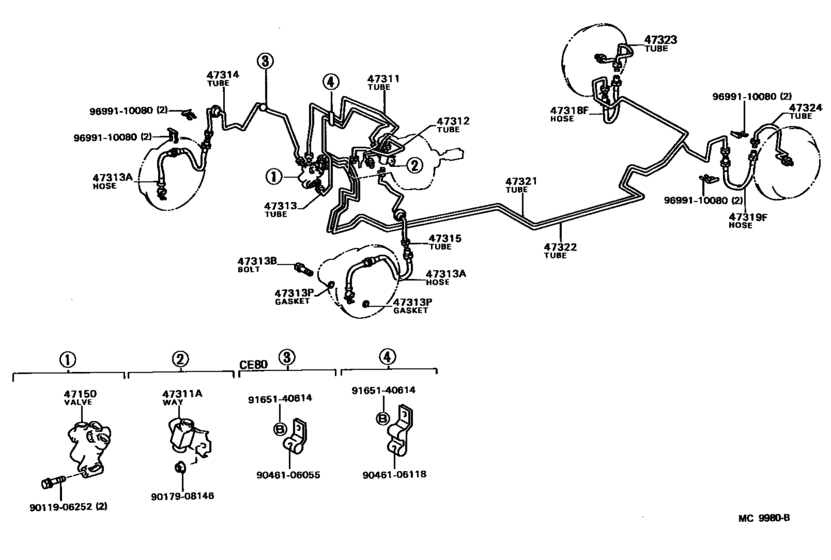

Brake Tube & Clamp ([08.1983 - ] (8308- )) Diagram Toyota COROLLA
- Year
- 1983 - 1987
- Sales region
- U.S.A.
- Frame
- AE82
- grade
- DX
- body
- SED
- ENGINE
- 4ALC
- TRANSMISSION
- MTM
- DESTINATION
- USA
- Model
- COROLLA(NAP/SED/CP/HB/LB/WG)
- From
- 08.1983
- To
- 07.1987
- Gear Shift Type
- 5F
- Vehicle Model
- Corolla
Difficulties in parts search?
Difficulties in parts search?
| Description | OEM Part # | Price | |||
|---|---|---|---|---|---|
|
47150
|
47150
47150-12050
Valve Assy, Proportioning
[08.1983 - 05.1985] AE82,CE80 |
47150-12050 |
— | ||
| replacement | |||||
|
47150
|
47150
47150-12230 Valve Assy, ProportioningPROPORTIONING [08.1983 - 05.1985] AE82,CE80 |
47150-12230 |
US $194.40 |
||
|
47150
|
47150
47150-16050 Valve Assy, Proportioning[05.1985 - 07.1987] AE82,CE80 |
47150-16050 |
from US $256.84 |
||
|
47311
|
47311
47311-12350 Tube, Front Brake, No.1FRONT BRAKE, NO.1 [08.1983 - 07.1987] AE82,CE80 |
47311-12350 |
US $11.50 |
||
|
47311A
|
47311A
90413-10155 Way(For Front Brake Tube)[08.1983 - 07.1987] AE82,CE80 |
90413-10155 |
US $13.40 |
||
|
47312
|
47312
47312-12210 Tube, Front Brake, No.2FRONT BRAKE, NO.2 [08.1983 - 07.1987] AE82,CE80 |
47312-12210 |
US $8.59 |
||
|
47313
|
47313
47313-12160 Tube, Front Brake, No.3FRONT BRAKE, NO.3 [08.1983 - 07.1987] AE82,CE80 |
47313-12160 |
US $10.48 |
||
|
47313A
|
47313A
90947-02454 Hose, Flexible, No.1(For Front)[08.1983 - 08.1985] AE82,CE80 |
90947-02454 |
US $47.76 |
||
| replacement | |||||
|
47313A
|
47313A
90947-02455 Hose, Flexible, No.1(For Front)[08.1983 - 08.1985] AE82,CE80 |
90947-02455 |
US $33.49 |
||
|
47313A
|
47313A
90947-02455 Hose, Flexible, No.1(For Front)[08.1985 - 07.1987] AE82 |
90947-02455 |
US $33.49 |
||
|
47313B
|
47313B
90401-10015 Bolt, Union(For Clutch Mas Cylinder To Flexible Hose Tube)[08.1983 - 07.1987] AE82,CE80 |
90401-10015 |
from US $3.20 |
||
|
47313P
|
47313P
90430-10074 Gasket(For Oil Pressure Regulator)[08.1983 - 07.1987] AE82,CE80 |
90430-10074 |
from US $0.94 |
||
|
47314
|
47314
47314-12200 Tube, Front Brake, No.4FRONT BRAKE, NO.4 [08.1983 - 07.1987] AE82,CE80 |
47314-12200 |
US $15.29 |
||
|
47315
|
47315
47315-12340 Tube, Front Brake, No.5FRONT BRAKE, NO.5 [08.1983 - 08.1984] AE82,CE80 |
47315-12340 |
US $12.81 |
||
| replacement | |||||
|
47315
|
47315
47315-12380 Tube, Front Brake, No.5FRONT BRAKE, NO.5 [08.1983 - 08.1984] AE82,CE80 |
47315-12380 |
US $12.52 |
||
|
47315
|
47315
47315-12380 Tube, Front Brake, No.5FRONT BRAKE, NO.5 [08.1984 - 07.1987] AE82,CE80 |
47315-12380 |
US $12.52 |
||
|
47318F
|
47318F
90947-02465
Hose, Flexible(For Rear Rh)
[05.1984 - 07.1987] AE82,CE80 |
90947-02465 |
— | ||
|
47318F
|
47318F
96950-33505
Hose, Flexible(For Rear Rh)
[08.1983 - 05.1984] AE82,CE80 |
96950-33505 |
— | ||
|
47319F
|
47319F
90947-02465
Hose, Flexible(For Rear Rh)
[05.1984 - 07.1987] AE82,CE80 |
90947-02465 |
— | ||
|
47319F
|
47319F
96950-33505
Hose, Flexible(For Rear Rh)
[08.1983 - 05.1984] AE82,CE80 |
96950-33505 |
— | ||
|
47321
|
47321
47321-12020
Tube, Rear Brake, No.1
[08.1983 - 07.1987] AE82,CE80 |
47321-12020 |
— | ||
|
47322
|
47322
47322-12130
Tube, Rear Brake, No.2
[08.1983 - 07.1987] AE82,CE80 |
47322-12130 |
— | ||
|
47323
|
47323
47323-12140 Tube, Rear Brake, No.3REAR BRAKE, NO.3 [08.1983 - 10.1984] AE82,CE80 |
47323-12140 |
US $16.60 |
||
|
47323
|
47323
47323-12200 Tube, Rear Brake, No.3REAR BRAKE, NO.3 [10.1984 - 07.1987] AE82,CE80 |
47323-12200 |
US $16.60 |
||
|
47324
|
47324
47324-12100 Tube, Rear Brake, No.4REAR BRAKE, NO.4 [08.1983 - 10.1984] AE82,CE80 |
47324-12100 |
US $16.60 |
||
|
47324
|
47324
47324-12160 Tube, Rear Brake, No.4REAR BRAKE, NO.4 [10.1984 - 07.1987] AE82,CE80 |
47324-12160 |
US $16.60 |
||
|
9011906252
|
9011906252
90119-06252 New Genuine Part |
90119-06252 |
US $1.22 |
||
|
9017908146
|
9017908146
90179-08146
Nut
|
90179-08146 |
— | ||
| replacement | |||||
|
9017908146
|
9017908146
90179-08204 Nut |
90179-08204 |
from US $1.11 |
||
|
9046106055
|
9046106055
90461-06055 Clamp, Brake Tube, No.1 |
90461-06055 |
US $3.14 |
||
|
9046106118
|
9046106118
90461-06118 New Genuine Part |
90461-06118 |
US $4.22 |
||
|
9165140614
|
9165140614
91651-40614 Bolt |
91651-40614 |
from US $0.78 |
||
|
9699110080
|
9699110080
96991-10080 CLIP |
96991-10080 |
from US $1.27 |
||
