Clutch Pedal & Flexible Hose ([08.1983 - ] (8308- )MTM) Diagram Toyota COROLLA
- Year
- 1983 - 1987
- Sales region
- U.S.A.
- Frame
- AE82
- grade
- DX
- body
- SED
- ENGINE
- 4ALC
- TRANSMISSION
- MTM
- DESTINATION
- USA
- Model
- COROLLA(NAP/SED/CP/HB/LB/WG)
- From
- 08.1983
- To
- 07.1987
- Gear Shift Type
- 5F
- Vehicle Model
- Corolla
Difficulties in parts search?
Difficulties in parts search?
| Description | OEM Part # | Price | |||
|---|---|---|---|---|---|
|

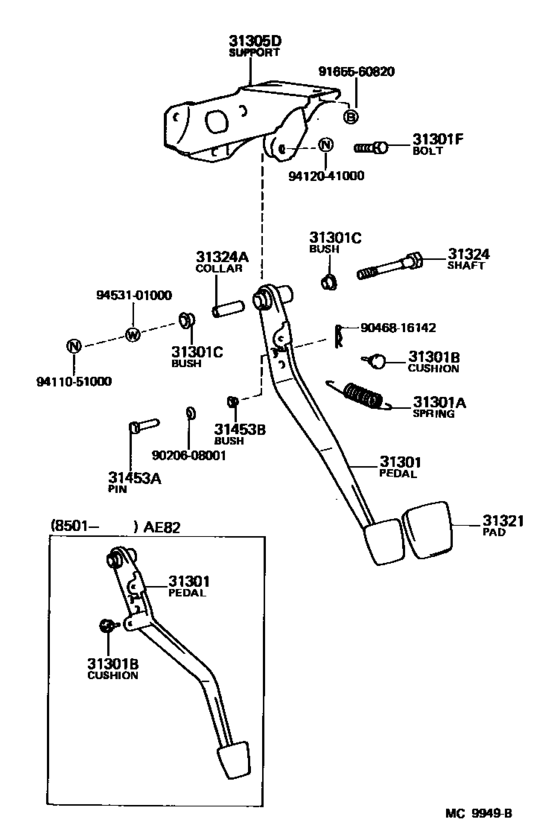

31301
|
31301
31301-12250
Pedal Sub-Assy, Clutch
[08.1983 - 01.1985] AE82,CE80..MTM |
31301-12250 |
— | ||
|
31301
|
31301
31301-12310
Pedal Sub-Assy, Clutch
[01.1985 - 07.1987] AE82..5F |
31301-12310 |
— | ||
|
31301A
|
31301A
90506-14002 Spring(For Clutch Pedal)[08.1983 - 05.1985] AE82,CE80..MTM |
90506-14002 |
US $3.49 |
||
|
31301A
|
31301A
90506-14052
Spring(For Clutch Pedal)
[05.1985 - 07.1987] AE82,CE80..5F |
90506-14052 |
— | ||
|
31301B
|
31301B
90541-06008 Cushion, No.1(For Clutch Pedal)[08.1983 - 07.1987] AE82,CE80..MTM PEDAL STOPPER |
90541-06008 |
from US $1.60 |
||
|
31301B
|
31301B
90541-07010
Cushion, No.1(For Clutch Pedal)
[01.1985 - 07.1987] AE82..5F CLUTCH START SWITCH |
90541-07010 |
— | ||
|
31301C
|
31301C
90386-13192 Bush(For Over Center Plate)[08.1983 - 07.1987] AE82,CE80..MTM |
90386-13192 |
from US $1.76 |
||
|
31301F
|
31301F
90101-10369 Bolt(For Clutch Pedal Stopper)[08.1983 - 07.1987] AE82,CE80..MTM |
90101-10369 |
from US $1.35 |
||
|
31305D
|
31305D
55107-12060 Support Sub-Assy, Clutch PedalCLUTCH PEDAL [08.1983 - 01.1985] AE82,CE80..MTM |
55107-12060 |
US $39.60 |
||
|
31305D
|
31305D
55107-12080 Support Sub-Assy, Clutch PedalCLUTCH PEDAL [01.1985 - 07.1987] AE82..5F |
55107-12080 |
US $36.84 |
||
|
31321
|
31321
31321-12030 Pad, Clutch Pedal[08.1983 - 07.1987] AE82,CE80..MTM |
31321-12030 |
US $9.28 |
||
|
31324
|
31324
90101-10015 Shaft, Clutch Pedal[08.1983 - 07.1987] AE82,CE80..MTM |
90101-10015 |
from US $1.19 |
||
| replacement | |||||
|
31324
|
31324
90101100151 Bolt, Hexagon[08.1983 - 07.1987] AE82,CE80..MTM |
90101100151 |
US $1.11 |
||
|
31324A
|
31324A
90387-10003 Collar, Clutch Pedal Shaft[08.1983 - 07.1987] AE82,CE80..MTM |
90387-10003 |
from US $4.11 |
||
|
31453A
|
31453A
90240-08006 Pin, W/hole(For Clutch Master Cylinder Push Rod Clevis)[08.1983 - 07.1987] AE82,CE80..MTM L=23.5 |
90240-08006 |
from US $2.56 |
||
|
31453B
|
31453B
90386-08002 Bush(For Clutch Pedal Over Center Spring Pin)[08.1983 - 07.1987] AE82,CE80..MTM |
90386-08002 |
from US $3.84 |
||
|
9020608001
|
9020608001
90206-08001 WASHER |
90206-08001 |
US $1.92 |
||
|
9046816142
|
9046816142
90468-16142 Clip(For Push Rod Clevis Pin) |
90468-16142 |
from US $0.88 |
||
|
9165560820
|
9165560820
91655-60820
BOLT
|
91655-60820 |
— | ||
| replacement | |||||
|
9165560820
|
9165560820
91651-60816 BOLT |
91651-60816 |
from US $1.07 |
||
|
9411051000
|
9411051000
94110-51000 Nut(For Steering Center Arm) |
94110-51000 |
from US $2.08 |
||
|
9412041000
|
9412041000
94120-41000 Nut(For Clutch Pedal Stopper) |
94120-41000 |
from US $0.78 |
||
| replacement | |||||
|
9412041000
|
9412041000
90170-A0002 Nut |
90170-A0002 |
US $2.33 |
||
|
9453101000
|
9453101000
94531-01000 WASHER |
94531-01000 |
from US $1.44 |
||
