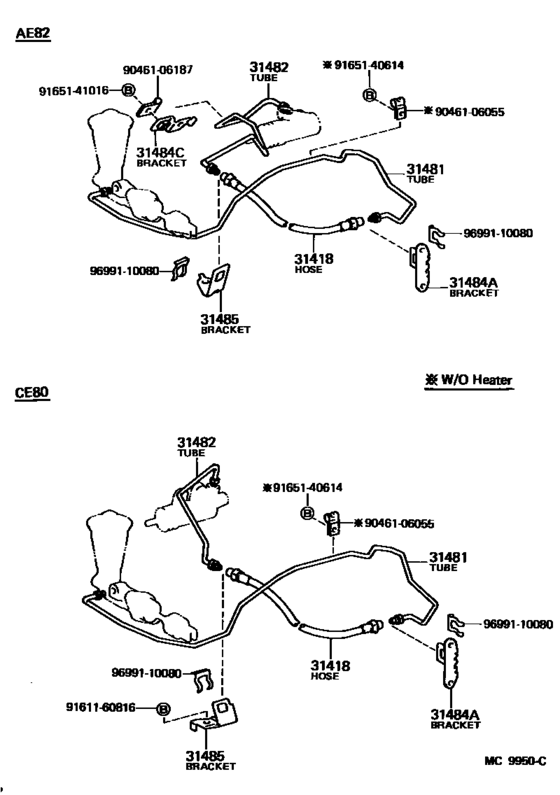

Clutch Pedal & Flexible Hose ([08.1983 - ] (8308- )MTM) Diagram Toyota COROLLA
- Year
- 1983 - 1987
- Sales region
- U.S.A.
- Frame
- AE82
- grade
- DX
- body
- SED
- ENGINE
- 4ALC
- TRANSMISSION
- MTM
- DESTINATION
- USA
- Model
- COROLLA(NAP/SED/CP/HB/LB/WG)
- From
- 08.1983
- To
- 07.1987
- Gear Shift Type
- 5F
- Vehicle Model
- Corolla
Difficulties in parts search?
Difficulties in parts search?
| Description | OEM Part # | Price | |||
|---|---|---|---|---|---|
|
31418
|
31418
90931-01004 Hose, ClutchCLUTCH [08.1983 - 07.1987] AE82..5F |
90931-01004 |
US $27.23 |
||
| replacement | |||||
|
31418
|
31418
96816-50420
Hose, Clutch
[08.1983 - 07.1987] AE82..5F |
96816-50420 |
— | ||
|
31481
|
31481
31481-12110 Tube, Clutch Master Cylinder To Flexible HoseCLUTCH MASTER CYLINDER TO FLEXIBLE HOSE [08.1983 - 07.1987] AE82..5F |
31481-12110 |
US $23.44 |
||
|
31482
|
31482
31482-12010 Tube, Clutch Release Cylinder To Flexible Hose[08.1983 - 01.1984] AE82..5F |
31482-12010 |
US $9.46 |
||
|
31482
|
31482
31482-12020 Tube, Clutch Release Cylinder To Flexible HoseCLUTCH RELEASE CYLINDER TO FLEXIBLE HOSE [01.1984 - 07.1987] AE82..5F |
31482-12020 |
US $9.46 |
||
|
31484A
|
31484A
31484-12050 Bracket, Flexible Hose, No.1(For Clutch)[08.1983 - 07.1987] AE82,CE80..MTM |
31484-12050 |
US $9.46 |
||
|
31484C
|
31484C
31484-12100 Bracket, Clutch Tube, No.1[10.1984 - 07.1987] AE82..5F |
31484-12100 |
US $9.46 |
||
|
31485
|
31485
31484-12060 Bracket, Flexible Hose, No.2(For Clutch)[08.1983 - 10.1984] AE82..5F |
31484-12060 |
US $9.76 |
||
|
31485
|
31485
31484-12090 Bracket, Flexible Hose, No.2(For Clutch)[10.1984 - 07.1987] AE82..5F |
31484-12090 |
US $10.63 |
||
|
9046106055
|
9046106055
90461-06055 Clamp, Brake Tube, No.1 |
90461-06055 |
US $3.14 |
||
|
9046106187
|
9046106187
90461-06187 New Genuine Part |
90461-06187 |
US $4.66 |
||
|
9161160816
|
9161160816
91611-60816
Screw Or Bolt(For Valve Rocker Shaft Lock)
|
91611-60816 |
— | ||
| replacement | |||||
|
9161160816
|
9161160816
91611-B0816 Bolt |
91611-B0816 |
from US $1.09 |
||
|
9165140614
|
9165140614
91651-40614 Bolt |
91651-40614 |
from US $0.78 |
||
|
9165141016
|
9165141016
91651-41016 Bolt(For Transaxle & Engine Setting) |
91651-41016 |
US $2.80 |
||
|
9699110080
|
9699110080
96991-10080 CLIP |
96991-10080 |
from US $1.27 |
||
